Camlok ACH ADJUSTABLE HORIZONTAL PLATE CLAMPS

Product was successfully added to your shopping cart.
key features Working load limits from 1,300 kg to 10,000 kg Jaw capacity from 0 to 300 mm plate thicknesses These clamps are to be used in pairs and are especially suited to the transportation of large plate bundles
Select Product Options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

* Required Fields

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

The ACH horizontal plate clamps offer superb flexibility because of the large adjustable jaw opening. The jaw is
adjusted using a simple ratchet mechanism.

*Sold in pairs e.g. for 2 clamps enter quantity = 1
These clamps are to be used in pairs and are especially suited to the transportation of large plate bundles.
For larger plates a lifting beam should be used

ModelWLL
kg*
Jaw capacity mmWeight kg**
ACH 130013000 - 15014
ACH 1300L13000 - 25017
ACH 330033000 - 15025
ACH 3300L33000 - 25028
ACH 665066500 - 15060
ACH 6650L66500 - 25064
ACH 100001000050 - 30082

*Per pair. **Weight per pair of clamps without chains.

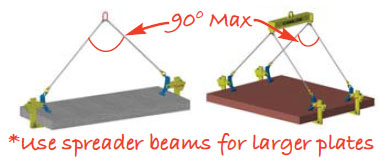

The angle of the sling legs should not exceed 45 degrees to vertical
Sling are NOT included ! Must not be used with endless chain slings


Workmanship and parts
These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.

Repairs and Spare parts are available - please contact us

Lead Time : 5 to 6 Weeks From Date Of Ordering
