Spreader beam for box pallets – TTS - Capacity 1000 - 3000 kg
An innovative designed for the individual transport of box pallets

Box pallets with DIN 15155 specifications, are usually moved around with a forklift, but are so sturdy that they can be picked up and transported by overhead crane or hoist with a spreader beam grab hooked up to the top of the box pallet‘s frame.

Using these spreader beams, the shipping and receiving area is no longer entirely dependent on floor-level material handling equipment such as forklifts.

Note: When using these spreader beams, it is important that the hooks be fastened only to the top frame of the box pallets.

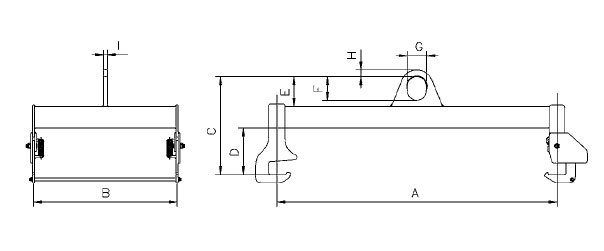

Dimensions in mm
ModelTTS 1,0/1240 - 810TTS 2,0/1240 - 810TTS 3,0/1240 - 810
SWL (Capacity)1,000 kg2000 kg3,000 kg
Self weight38 kg61 kg80 kg
A117511751175
B600600600
C410495520
D195215215
E125180205
F100150170
G80100130
H283040
I152025
