Hi-Gate Bespoke Universal Safety Pallet Gate with Unlimited Load Height

Product was successfully added to your shopping cart.
You may also be interested in...
key features Unlimited Load Height - Conformance with BS EN ISO 14122-3:2016.- Can be loaded by forklift or hoist Bespoke model with inside width up to 2.0 metres x inside depth up to 4.5 metres - Plus special doorway opening version Anti-slam damper fitted as standard - Easy to install with installation and operating instructions provided Separates personnel from moving loads and falls from unprotected edge - Open top for safer loading All galvanised finish or Safety yellow thermoplastic coated tube - All parts are replaceable - CE marked
Select Product Options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

Maximum number of characters: 100

Maximum number of characters: 30

Maximum number of characters: 30

Maximum number of characters: 250

Allowed file extensions to upload: jpeg, jpg, png, pdf

* Required Fields


or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

Why use this safety gate system?

Because of the Innovative design, it can be used anywhere, totally adaptable to any location.  Uses standard components, flat-packed for transport, but easy to assemble and install.

The Hi-Gate design has proven the ideal answer to numerous safety issues, which other gates do not address. Can be used with forklifts, overhead cranes or hoists.
Replaces swing gates, removable bars or chains which can be left open. Conforms to BS EN ISO 14122-3:2016 Mezzanine Gates

The innovative 'Hi-Gate' range of safety gates have been specifically developed to provide fool-proof safety for personnel working a height.The design is ideal for many loading applications on mezzanine floors, hoist openings, scaffold platforms, teagle openings or hoist doorways.

 The Hi-Gate model is offered to bespoke requirements. See details below - Despatch generally around two weeks. Request a quotation for an accurate schedule.

How It Works

The gates pivot up and down at either end of the load allowing unlimited load height, cleverly hinged to automatically close the edge gate when personnel need to enter the enclosed loading area. An anti-slam damper is included for operator safety.

Hi-Gate Universal Safety Gate System - Standard model or special versions for specific applications are possible.

Features and benefits:

  • All Galvanised Tubular steel construction or Safety yellow thermoplastic coated tube (Warm to touch) and galvanised components
  • 100 mm high aluminium kick plate
  • Supplied complete for simple installation (Partially dismantled for shipment)
  • No limit to load height
  • Balanced action provides easy opening
  • Anti-slam damper for operator safety
  • All parts are replaceable
  • Separates people from moving loads and falling from unprotected edge
  • Allows clear view of operation
  • Reinforces sense of security
  • Failsafe operation

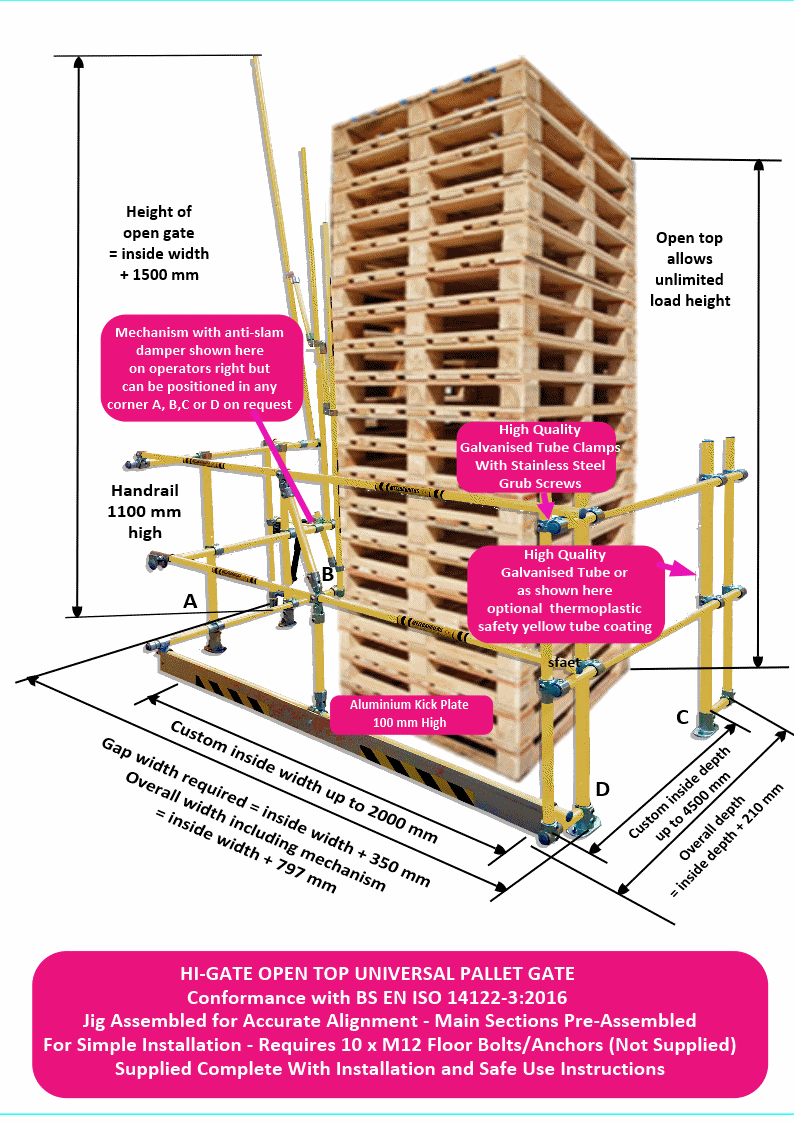

Hi-Gate Dimensions (mm)

Handrail
height

No, of
Tubes per
gate

Inside/outside
width

Inside/outside
depth

Overall height
open end

Max load
height

1100

3

Up to 2000
/+797

Up to 4500
/+100



Inside Width
+ 1500


 Unlimited

Full specifications are shown in the brochure download PDF

 Bespoke inside width - We recommend that you allow at least 200 mm load clearance for the inside gate
     width

 Overall width including mechanism - e.g. inside width 1500mm overall width 2297mm

Special Note: The headroom clearance needed for operation.

 : Installation requires 10 x M12 Bolts/Anchors (Not provided)

Optional Special Features:  (You can tell us about any special features or extras you require in the additional information box)

  • Inside width up to 2000 mm
  • Extra deep (up to 4500 mm
  • Safety Yellow thermoplastic tube coating
  • Teagle opening/runway hoist loading application model (See case study).
  • Hi-gate Plus Model with Toe rail and or kick plate for additional safety - inside width + 1500 mm e.g. 1500 mm inside width = 3000 mm headroom clearance required.
  • Doorway Modification - Side frames horizontal tubes are extended beyond feet for passage through drilled holes in the wall. Drilled holes one or both side of the door. The edge gate is mounted outboard of the door opening - Design varies according to door type. The gate mechanism leg must be positioned at inboard operator end. (See case study)
  • For special models, we will supply an approval layout cut sheet pdf.

Low pivot model in action

 Optional Extras

  • Safety yellow thermoplastic tube coating
  • Additional handrailing to complete barrier infill or extend around platform as required
  • Floor plate in aluminium chequer plate 1250 mm wide x 1150 mm deep with 100mm fold to protect edge (Recommended for wood floors). Order 2 for wider coverage).

Component Specification

Mezzbarriers tube clamps are made from malleable cast iron.  Manufactured in conformance with BS EN 1562:1997, a dependable and well-proven material for this type of product. The fittings are then hot-dipped galvanised to BS EN ISO 1461:1999 to produce a durable corrosion resistant finished surface for extended life. Grub screws are stainless steel. Specially fabricated components are zinc sprayed as standard.

How to get a quote

Once you have all the dimensions, use our easy online step-by-step quotation request form above, to tell us about your application. It may be useful to attach a photo or sketch with the form.

Tip: If you have more than one photo or sketch you could import them into a word document and then save or print as a PDF to send.

We have successfully supplied safety gates all around the UK and as far afield as Canada and Australia without ever visiting the work site.  Our component construction gate system is very simple to install and your employees will find it easy to use and will feel more secure.

Don't forget we're here to help you through the process by phone: 0161 223 1990  or by email: mezzbarriers@dale-lifting.co.uk .
