Gebuwin WW GR/D Range - Wall Mounted Worm Gear Hand Winch 250 - 5000 kg capacity

Product was successfully added to your shopping cart.
You may also be interested in...
key features Worm geared general purpose winch - A robust and safe lifting winch Square worm-wormwheel transmission with maintenance free bearings Adjustable crank, with ergonomic plastic grip - Easy to grease worm gearbox Load pressure brake with double ratchet system Painted or zinc-plate finish
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £420.41 (Ex VAT) Incl. Tax: £490.48 (Inc VAT)

or

Download Product SpecificationClick here

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

Download Product Specification  Click here

Gebuwin WG-GR/D worm gear heavy duty steel wall mounted wire rope winches with lifting capacities of 250kg to 5000kg.

Product code 156

Version
GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1 D = cable drum for 1 cable
Worm geared general purpose winch
• Robust and safe lifting winch
• Square worm-wormwheel transmission with maintenance free bearings
• Adjustable crank, with ergonomic plastic grip
• Easy to grease worm gearbox
• Load pressure brake with double ratchet system
• Painted or zinc-plated finish
• Optional conversion bracket, CB250, 500 or 1000, to match mounting holes of the previous WG-series - See below
• Grooved drum as option
• 2 cable compartments multi-compartment possible upon request
• In compliance with DIN 15020
Options:
• As standard RAL 7044 (Silk grey) or Zinc plated (optional)
Product code WG250 WG500 WG1000 WG1500 WG2000 WG3000 WG5000
Lifting capacity - 1st cable layer (kg) 250 500 1000 1500 2000 3000 5000
Lifting capacity - last cable layer (kg) 95 239 542 845 1129 186 3165
Required effort (kg) 6 10 13 21 9/18 12/24 25/50
Lift per crank turn, 1st layer (mm) 17 20 13 9 11/2 8/16 9/18
Rope capacity 1st layer (m) 3. 4.4 5.2 5.4 5 5.6 5.3
Rope capacity total (m) 67 67 58 50 48 42 42
Rope diameter (mm) 5 6 9 10 13 16 20
Weight (kg) 13 16 29 28 60 78 115

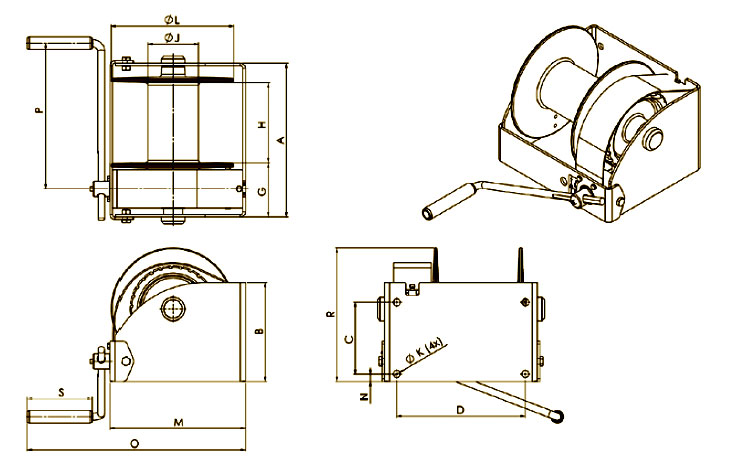

Dimensions mm
Type A B C D G H J K L M N O P R S
G-WG250 238 145 100 192 106 102 48 14 160 19 15 354 280 17 130
G-WG500 269 160 115 223 107 13 70 14 190 22 15 384 325 192 130
G-WG1000 302 195 14 254 110 160 102 14 240 266 15 429 350 264 130
G-WG1500 302 250 178 254 11 160 102 14 240 278 15 44 350 306 130
G-WG2000 410 295 196 360 137 180 133 25 312 208 249 740 380 419 250
G-WG3000 436 256 25 386 137 205 165 25 376 260 308 825 380 550 250
G-WG5000 436 42 316 386 138 200 219 25 437 298 335 865 380 613 250

G-WG Worm gear winch

For Drum, Fixing brackets and Pneumatic drive options contact us - Wire rope not included sold separately
