Sigma Bespoke Multi-Purpose Safety Pallet Gate

Product was successfully added to your shopping cart.
You may also be interested in...

key features

Meets HSE and Safety professionals requirements for site safety. - Conformance with BS EN ISO 14122-3:2016 - High loads up to 2250 mm within low headroom Bespoke versions with inside width up to 3.0 metres x inside depth up to 4.5 metres - Plus additional features Multi-purpose design - For mezzanines, process platforms, doorways and more - Easy to install with installation and operating instructions provided Separates personnel from moving loads and falls from unprotected edge. Galvanised or Safety yellow thermoplastic coated tube - All parts are replaceable - CE marked
select product options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

Maximum number of characters: 30

Maximum number of characters: 250

Allowed file extensions to upload: jpeg, pdf, jpg, png

* Required Fields


or

Download Product SpecificationClick here

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

Download Product Specification  Click here

Why use this safety gate system?

This new concept pallet gate has features designed to solve specific problems not addressed by other models.

What’s so special?

Conforms to BS EN ISO 14122-3:2016 Mezzanine Gates

Does not protrude over floor edge. No overhead bars when loading. Less risk of damage during the loading operation.

Fitted with 100 mm high Aluminium kick plate

When the operator pulls down the inner gate, the mechanisms incorporated in the side frames automatically pivots up the two edge gates to the vertical position either side of the opening. See video on this page.

When used with standard pallets the side frames can be reduced for space saving and allows good access to a pallet on three sides. This model can also be used with a vacuum handling crane for unloading bags or sacks etc. Read more about special applications below. With inner gate raised this model offers more usable floor space for confined areas.

The design can be adapted for use with inward opening doors or roller shutters and is especially useful for use with hoists on low runway beams. When the gates are fitted to deeper side frames it allows the inner gate to fold up, under the runway, behind the load when landed.

The construction is a combination of our tried and tested standard tube and component construction merged with specially designed pivot joints and tube rotators.

This design allows us to produce a bespoke low-cost gate which can be easily adapted (See below) not only in height, width and depth but will also be easy to assemble and adjust on site to ensure optimum operation


Finish

  • All galvanised
  • Safety yellow thermoplastic (Warm to touch) coated tube and galvansed components
  • Special RAL colour powder coated tube

Special applications

In addition to normal forklift loading, this model can be used with hoists, in doorways, and with vacuum handling cranes - See notes below

The Sigma model is offered to bespoke requirements -

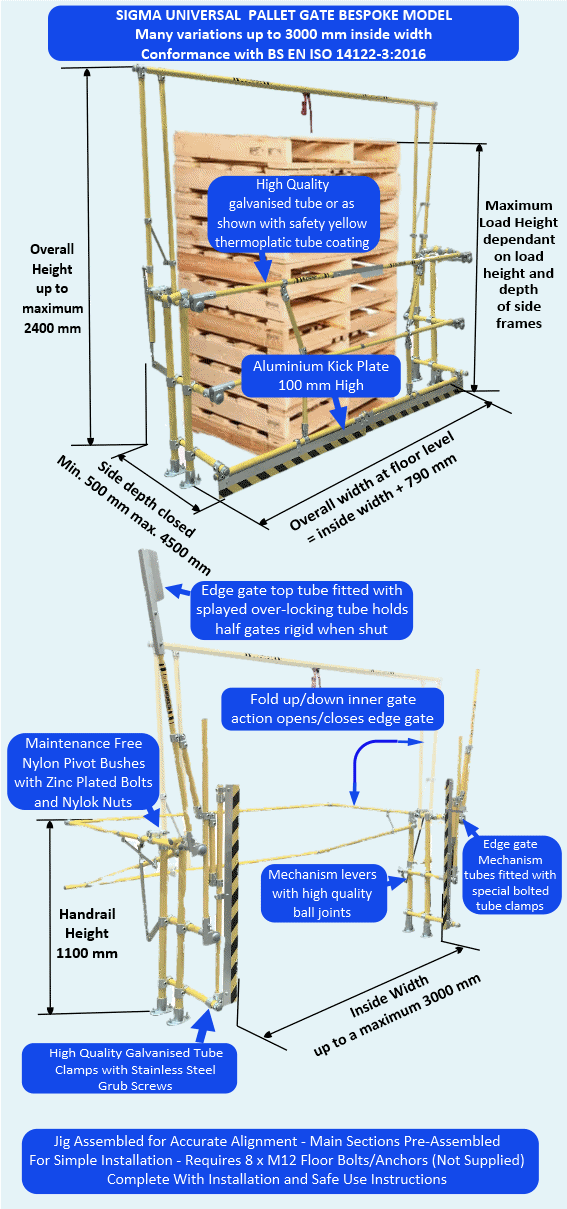

Sigma General Dimensions (mm)

Model

Handrail height

Inside/outside

width

Inside/outside

depth

Overall height

open

Maximum

load height

Sigma

1100

Up to 3000

/    + 800

Up to 4500

/ + 100

see notes

Load height
+ 150

2250

Full specifications are shown in the Sigma Cut Sheet download PDF (Upper file)

 Bespoke inside width - We recommend that you allow at least 200 mm load clearance for the inside gate
     width

 Overall width including side frames. Gap required for edge gate – Mechanism increases overall width to + 800mm

 Standard Installation requires 8 x M12 Bolts/Anchors (Not provided)

Special notes:  (You can tell us about any special features or extras you require in the additional information box.

The depth of the gate will vary according to height and depth of the load to be cleared by the fold down the inner gate and the length of side frames. Overall height varies according to the length of side frames.

Usually, there is a trade-off between space-saving and load clearance requirements. The longer we can make the side frames the lower the fold down inner gate can be to clear the load.

For minimum height with fold-down gate behind load depth, we recommend that you allow at least 150mm load clearance on inside height to use pallet truck to remove load..

Information we need:

We will need to know the unrestricted headroom above the gate location.  The edge gate will usually be much lower than the inner gate.  The headroom at the edge is often lower as on most mezzanines there can often be a roof support beam above as the mezzanine is often supported by the building columns.

Loading by hoist

If you intend to use the gate for loading with a hoist with or without doors, the side frame will need to be of sufficient length for the inner gate to fold back up behind the load.  The inner gate needs to be closed to access the load.  The load has to be landed to disconnect from the hoist within the safety area and a non-wheeled load can then be moved further in by landing onto a suitable trolley or pallet truck.

We will need the height to the underside of the runway beam.  Special note: If headroom is very tight you may need to alter the hoist feed system as the gates could foul the hanging cables.

Unloading pallet contents with a hoist

For applications where the palletized load is to be unloaded e.g. vacuum hoist for sacks. The side frames can be made with minimum depth and the inner gate raked forward in the folded position when shut. This allows the hoist to swing over the entire pallet.

If you can give us the precise dimensions we can calculate the optimum dimensions required to clear the load.

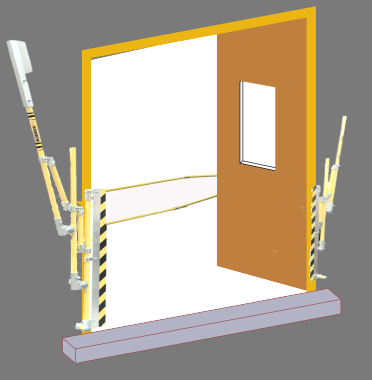

Doorway applications

This model can also be used with inward opening doors (See case study). You will need to drill 2 x 50 mm diameter holes in the wall each side of the door frame at knee rail and handrail height for the active mechanism tubes which will hold the outer gates.

We will require the proposed hole cross centres and the thickness of the wall to finalise the arrangement. The outer or edge gates have vertical posts which will need to land on a ledge. If no ledge exists, you will have to bolt a short bracket to the wall at the centre of the outer face door sill. Alternatively, for wooden floors, a floor plate with a lip (see below) can be used to protect the floor and protrude under the door{s} to provide a landing for the external edge gate.

Download PDF Sigma Doorway Gate Questionnaire

Component Specification

Mezzbarriers tube clamps are made from malleable cast iron.  Manufactured in conformance with BS EN 1562:1997, a dependable and well-proven material for this type of product. The fittings are then hot-dipped galvanised to BS EN ISO 1461:1999 to produce a durable corrosion resistant finished surface for extended life. Grub screws are stainless steel. Specially fabricated components are zinc sprayed as standard.

How to get a quote

Once you have all the dimensions, use our easy online step-by-step quotation request form above, to tell us about your application. It may be useful to attach a photo or sketch with the form.

Tip: If you have more than one photo or sketch you could import them into a word document and then save or print as a PDF to send.

We have successfully supplied safety gates all around the UK and as far afield as Canada and Australia without ever visiting the work site.  Our component construction gate system is very simple to install and your employees will find it easy to use and will feel more secure.

Don't forget we're here to help you through the process by phone: 0161 223 1990  or by email: mezzbarriers@dale-lifting.co.uk .
