Pallet Gate for Corner Loading Platform

Product was successfully added to your shopping cart.
Client: Pharmaceuticals Manufacturer

Requirement: Pallet gate for new mezzanine with clean room and external loading platform. Pallets 2000mm high.



Problems:

  • The loading platform was quite small and had double opening doors to a clean room tight up to the side of loading edge.

  • The pallets were to be loaded onto a pallet truck from the side and pulled back into the clean room.

  • It was impossible to use a standard up and over type pallet gate.

Corner-Pallet-Gate



Solution:

  • Omega* Standard model adapted with edge gate reversed into the rear of side frames.

  • Frames mounted on brackets bolted to loading face of the platform. This arrangement allowed clear side access through side doorway for pallet trucks.

  • The gate and additional side railing protect all personnel as whenever the edge gate is raised, the 'U' shaped inner gate protects the operator and prevents anyone coming into contact with moving loads.

  • This model is also very easy to operate, having a balanced gate system which negates operator fatigue.

    * Now more often superseded by a Sigma hybrid Model which is more compact for these applications. Talk to our expert for more information on front entry and side exit options.

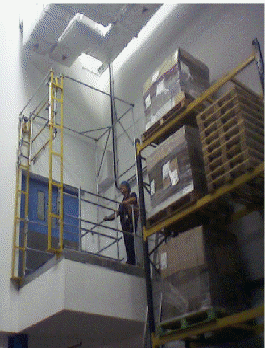

Omega pallet gate mounted on brackets allow full side access

Get a quoteNote: Enter wanted for corner application in special requirements box
