Pallet Loading on to Narrow Walkway

Product was successfully added to your shopping cart.

Client: Specialist provider of Furnace and Heat Treatment Site Services


  • Existing mezzanine floor occupying the full length of the building with offices and storerooms.  Access to the storerooms is via two 2000 mm standard height double doors opening onto the walkway in two places.

  • Existing pallet loading access to walkway was two swing out gates in the walkway barrier.
  • Pallets were loaded with cardboard boxes up to 1850 mm high.  As the walkway was less than the pallet depth the storeroom doors had to be open to create enough loading space.
  • A risk assessment highlighted the danger of personnel, who were constantly using the walkway for access between offices, of falling through the open gates or coming into contact with moving loads.

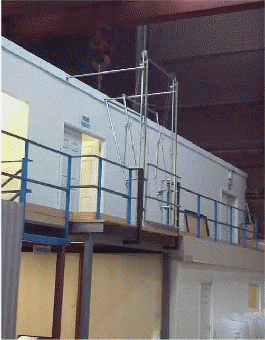

Narrow walkway safety pallet gate
Omega Nu Space saving fold-up gate
Quote Link button


* Now more often superseded by the Sigma pallet gate model which is more compact for doorway applications.

  • Existing gates were removed and replaced with two of the Mezzbarriers Omega Nu* models bolted to the wall and braced back to storeroom wall.

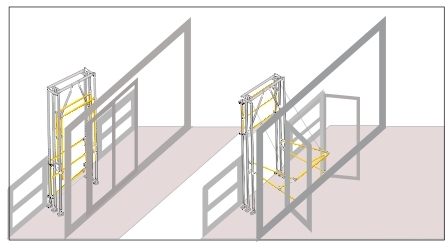

  • Inner gate was designed to fold down within the open storeroom doors, allowing safe access for loading full-size pallets whilst protecting all personnel from potential danger.

  • Once pallets were safely landed, the inner gate could be closed. A pallet truck was used to pullet the pallet backward into the storeroom. Which allowed pesonnel safe passage along the walkay.

We can help you too!

BSI Quality Logo


The pallet gate design and manufacturing services (To ISO 9001)  provided by our in-house mezzanine barrier division meet the recommendations of the Health and Safety Executive

 Do you need help in providing a suitable HSE recommended double barrier system for you loading operation? - We here to help!

 You can select from many different models in the Safety Pallet Gates section of this website.  You will also find a helpful 'How do I select the right pallet gate?' guide.  Or on each of the model pages, there is detailed information on what the model does and the full dimensions etc.  Plus there is a specific enquiry form for custom application for you to use.
