CROSBY IPNM10P VERTICAL PLATE LIFTING CLAMP (With non-marring protection cap

Product was successfully added to your shopping cart.
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £764.75 (Ex VAT) Incl. Tax: £892.21 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

CROSBY IPNM10P LIFTING CLAMP

The IPNM10P vertical lifting clamps are used for the lifting, turning, moving or vertical transfer of sheet, plates, or fabrications from horizontal to vertical and down to horizontal (180°) as needed without marring the surface of the material. Materials such as aluminium stainless steel, painted materials, aircraft skins, composite material, glass, plastic, etc., can be lifted without marring. Will NOT mar, or scratch the material surface.

  • For use in almost all sectors of industry where during the lift or transfer, no damage to the material is permitted.
  • Available in capacities of .5,and  1  metric tonnes
  • Wide variety of jaw openings available: 0 to 20 mm.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification
  • Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included on the test certificate with maintenance and warranty logbook

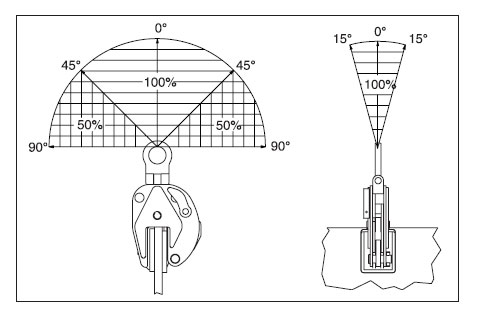

  • Full 180° turning range for material transfer, turning or moving
  • Lock open, lock closed ability with latch for pretension on material and then release of material.
  • Allows for easy connection between the clamp and hoist hook
  • Material must be clean and dry.• Maintenance replacement kits are available.• Manufactured by a ISO 9001 facility.
  • All sizes are RFID EQUIPPED.



ModelWorking
Load
Limit (t)*
IPNM10
Stock No.
Weight
Each
(kg.)

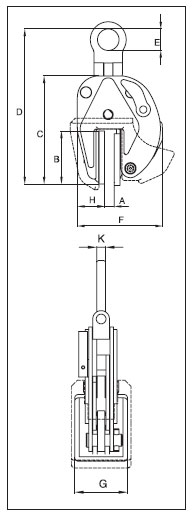

Dimensions (mm)
Jaw ABCDEFGHK
With protection cap
IPNM10/P.527032782.80 - 108215721340145684811
IPNM10/P127032794.50 - 209719526830205826010

* Design Factor based on EN 13155 and ASME B30.20.
