CROSBY IPU10/A AUTOMATICALLY LOCKING PLATE LIFTING CLAMP (WITH HINGED LIFTING EYE)

Product was successfully added to your shopping cart.
key features The IP10A automatically clicks on to the material as soon as the clamp is placed on the plate The fact that the safety lock remains in position as the clamp closes precludes hazardous situations. Fastening the IPU10A clamp in places that are difficult to reach is no problem. Available in capacities of 1 and 2 metric tonnes. Jaw openings available: 0 to 35mm | 0” 1.38”. Universal lifting eye
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £380.95 (Ex VAT) Incl. Tax: £444.44 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

CROSBY IPU10/A LIFTING CLAMP

Vertical transport of plates:

The IPU10A automatically clicks on to the material as soon as the clamp is placed on the plate. The fact that the safety lock remains in position as the clamp closes precludes hazardous situations. Fastening the IP10A clamp in places that are difficult to reach is no problem.

AUTOMATICALLY LOCKING

  • Available in capacities of 1 and 2 metric tonnes.
  • Jaw openings available: 0 to 35mm | 0” 1.38”.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • ndividually Proof Tested to 2 times the Working Load Limit with certification.
  • Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included on the test certificate with maintenance and warranty logbook.
  • Full 180° turning range for material transfer, turning or moving.
  • Lock open, lock closed ability with latch for pretension on material and then release of material.
  • Minimum WLL of 10% of Maximum WLL.
  • Maintenance replacement parts are available.
  • Manufactured by a ISO 9001 facility.
  • All sizes are RFID EQUIPPED.

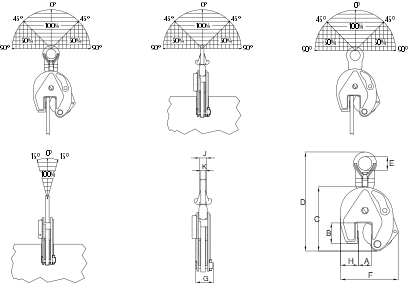

model

stock no.

WLL Each (t)*

Weight Each (kg.)

Jaw A

 B

 C

 D

 E

 F

 g

 H

 K

1 IPU10A

2701628

1,0

2,3

0-20

45

138

238

40

128

41

37

11

2 IPU10A

2701629

2,0

8,9

0-35

78

201

378

70

200

61

72

16

* Design Factor based on EN 13155 and ASME B30.20.

IP10A
