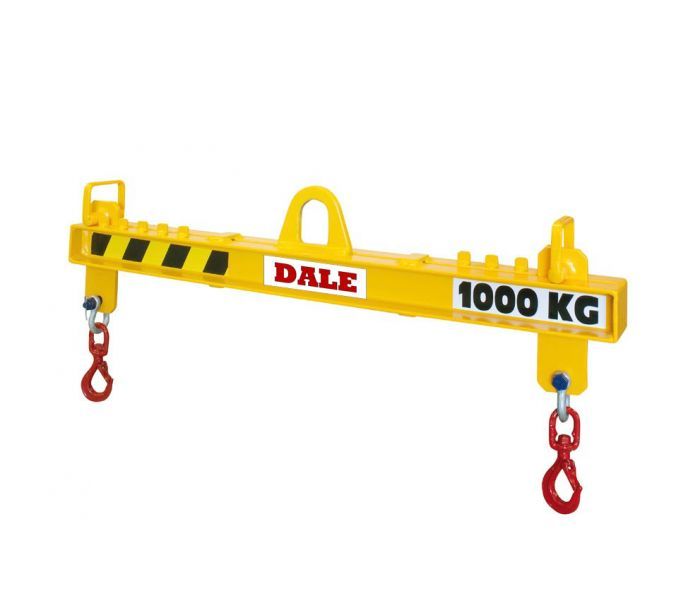

Adjustable Lifting Beam Type PALR 1t to 10t upto 6 metres span

Product was successfully added to your shopping cart.
You may also be interested in...
key features For lifting of various loads up to 10 tonnes in spans from 1 to 6 metres Equipped with 2 articulated, rotating plain bearing swivel hooks with forged safety latches Adjustment of the hooks with movable hangers Delivered with user's and maintenance manual and EC certificate of compliance Safety factor: 4
Select Product Options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

* Required Fields

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

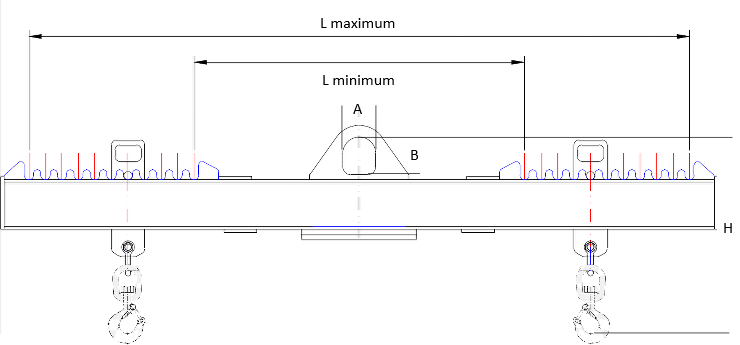

PALR- Adjustable Lifting Beam Applications  - See full dimensions below

For lifting of various loads up to 10 tonnes in spans from 1 to 6 metres

Description:

  • Adjustable spreader beam
  • Equipped with 2 articulated, rotating plain bearing swivel hooks with forged safety latches
  • Adjustment of the hooks with movable hangers
  • Tear-resistant eyelet for use with synthetic slings, cables, etc.
  • Rust-proof paint + highly resistant RAL 1028 yellow polyurethane finish
  • Safety factor: 4
  • No structural weld
  • Manufactured according to standard NFE 52210
  • Group = FEM5
  • Pitch = 100mm
  • Maximum hoisting speed = 16m/min
  • Delivered with user's and maintenance manual and EC certificate of compliance
  • For superior capacities, contact us.


See important information below for correct loading

PALR Lifting beam



Max. capacity Length maximum (L) length Minimum (L) Headroom (HP) A B Weight
KG mm mm mm mm mm KG
1 000      1 000 400 401 60 80 51
2 000 1000 449 97
3 000 1500 448 136
4 000 2000 486 220
5 000 2500 505 297
6 000 3000 550 360
2 000      1 000 400 464 80 120 59
2 000 1000 411 116
3 000 1500 541 188
4 000 2000 558 260
5 000 2500 598 419
6 000 3000 640 480
3 000      1 000 400 586 100  180 65
2 000 1000 642 145
3 000 1500 680 226
4 000 2000 720 364
5 000 2500 740 469
6 000 3000 770 520
5 000      1 000 400 634 100  180 91
2 000 1000 691 180
3 000 1500 730 275
4 000 2000 770 418
5 000 2500 810 613
6 000 3000 840 680
8 000      1 000 400 728 100  180 129
2 000 1000 785 217
3 000 1500 845 378
4 000 2000 885 546
5 000 2500 905 695
6 000 3000 925 760
10 000      1 000 400 796 100 180 164
2 000 1000 854 267
3 000 1500 894 398
4 000 2000 934 537
5 000 2500 994 818
6 000 3000 1104 890

Guide only - We reserve the right to change specifications without notice








ImportantInformation

  • Install necessary accessories on the lifting beam ensuring that these accessories meet all the lifting beam use conditions
  • Attach the lifting beam to the lifting means
  • Adjust both lower points -taking the load geometry into account- sliding them onto the profile. Securely position the adjustable attachment points between appropriate steel locking components.
  • Hang the load on the lifting beam and perform lifting.

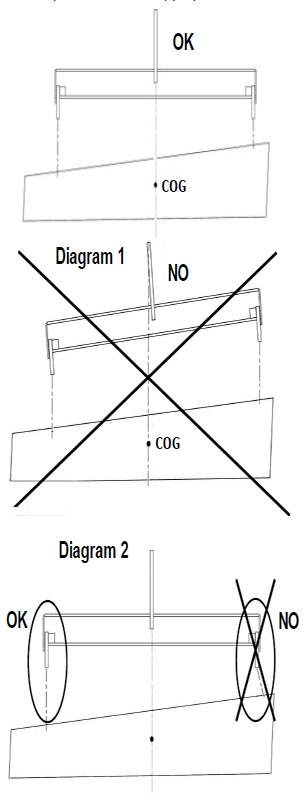

  • Ensure that the load is evenly balanced: the lifting beam must be horizontal during lifting (see Diagram 1) and efforts on axle direction of lower points vertical (see Diagram 2).
  • COG = Centre of gravity of the load
  • Otherwise, stop the lifting and correctly position the load, the lifting beam and accessories.


Choice of accessories

  • Accessories like shackles, hooks, slings, etc. must be adapted to all lifting operations.


For adjustable lifting beams, the following example is the most critical:

Important instructions

  • Do not use for personnel lifting.
  • Strictly forbidden to either be under or walk under the load
  • Working temperature: -20° to +100°C.
  • Accessories must be adapted to all lifting operation conditions.
  • For all lifting operations, make sure that the load itself can withstand the bending stresses and deformations it is likely to be subjected to during the lifting operation.
  • Never lift loads which have non-attached charges on top.
  • Never exceed Working Load Limit of the equipment (W.L.L. – see engraving).
  • The weight of the lifting beam, added to the weight of the load lifted, must be less than the capacity of the lifting appliance.
  • Never mount more than one element in the hole of each lower point of the lifting beam.
