key features 250° 'T' Beam - Manually Rotated Jib Cranes From 125 kg to 2000 kg capacity and jibs from 4 to 8 metres reach. This version allows the optimum use of the available headroomspace Support brackets in 3 sized Optional hoists are available
Select Product Options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

Maximum number of characters: 500

Maximum number of characters: 500

Maximum number of characters: 500

Maximum number of characters: 500

* Required Fields

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

Standard Capacity63 kg*125 kg*250 kg*500 kg*1000 kg*2000 kg*
Maximum Reachup to 5.0 metresup to 5.0 metresUp to 5.0 metresUp to 5.0 metresUp to 5.0 metresUp to 3.0 metres
* Standard capacities can be de-rated to suit your application

Tip: Maximum capacity sizes shown above or view standard models below.

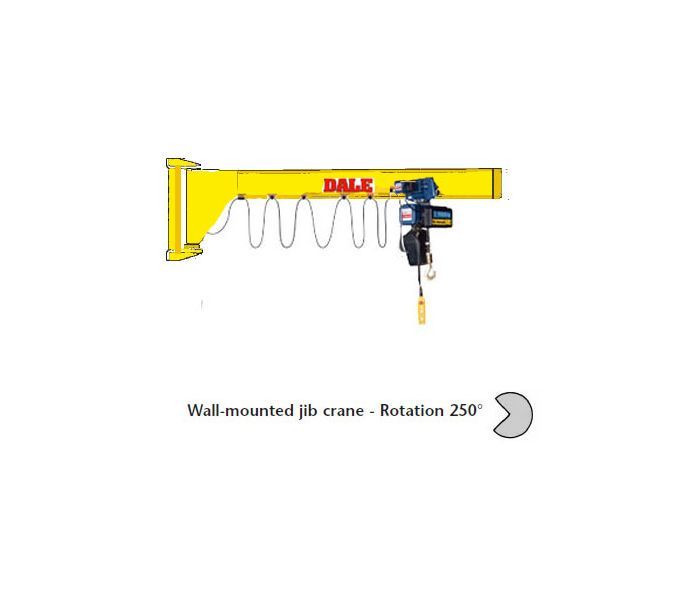

250° 'T' Beam - Manually Rotated Jib Cranes
The manually rotated jib cranes are available for lifting capacities from 125 kg to 2000 kg and jibs from 4m to 8m. The Donati jib cranes are designed and manufactured according to the ISO A5 classification

The arm is made using a laminate T-beam form: the hoist-carrying trolley runs on the lower flange of the T-beam.

The girder is self-supporting and cantilevered, so it has no support stay bolts, and it is directly integral with, via suitable reinforcements, the rotation tube.

This version allows the optimum use of the available space at a height due to the absence of stay bolts and allows the maximum use of the hook run. The arm allows the addition of electrical or mechanical push-trolleys.

Painted with a base and top coat of yellow enamel, subject to preparation of the surfaces by metallic sandblasting. The drying in an oven concludes the cycle.

Jibs can be supplied with the following options:

  • Donati 400V 3ph 50Hz electric chain hoist with single or dual speed and low voltage pendant. Alternatively 110V and 240V electric hoists, other brands, manual or pneumatic hoist are available on request
  • Special reach and height
  • 400v 3ph. 50 Hz Electric feed system with festooned cables and main/off switch on the column
  • Wall fixing system by using brackets and stay bolts.
  • Mechanical Slewing stops
  • Outdoor use
  • Special paint finish e.g. Off-shore use
  • Installation - Subject to location

Contact our sales team for advice on 0161 223 1990

Download Donati jib crane catalogue for full specification - PDF

Installation and maintenance instructions are provided.

Jib Crane Dimensions
Model
Lifting Cap
(kg)
Arm
Size of jib Crane
Wt
of Crane (kg)
Nom. Length (S) (m)
True Length (mm)
T01A40
63 kg
4
4056
A
95
T01A50
5
5056
A
111
T01A20
125 kg
2
2056
A
63
T01A30
3
3056
A
79
T01B40
4
4056
B
125
T01B50
5
5056
B
147
T01B20
250 kg
2
2056
B
81
T01B30
3
3056
B
103
T02C40
4
4056
C
195
T02C50
5
5056
C
226
T02C20
500 kg
2
2056
C
134
T02C30
3
3056
C
165
T02D40
4
4056
D
256
T02D50
5
5056
D
298
T02D20
1000 kg
2
2056
D
172
T02D30
3
3056
D
214
T03E40
4
4056
E
381
T03E50
5
5056
E
438
T03E20
2000 kg
2
2056
E
267
T03E30
3
3056
E
324



Bracket Specifications (For bracket dimensions see Donati catalogue - Download PDF)
Size of CraneABCDEF
Reactions (kN)Q22.9559.216.8526.1025.6
R11.921.7527.054966.8120
Type of Bracket010203
StayboltsøM14M20M30
Clamping couples(Nm)67200685
Bracket Type: Short CodeGBP010110GBP020110GBP030110
Weight (kg)213675
Bracket Type: MediumCodeGBP010120GBP020120GBP030120
Weight (kg)266096
Bracket Type: Long CodeGBP010130GBP020120GBP030130
Weight (kg)4074132
