G Guard Load Arrestors - 300kg MWL - 7 to 25M

Product was successfully added to your shopping cart.
key features G.Guard series of load arresters is a reliable system for automatically stopping the fall of an overhead load The G.Guard is a retractable, tensioned safety line for protection of machinery, high value and sensitive loads. Provides a backup safety system to protect a load at height and automatically stop its fall, should the primary means of support fail.
Select Product Options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

Allowed file extensions to upload: pdf

* Required Fields

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

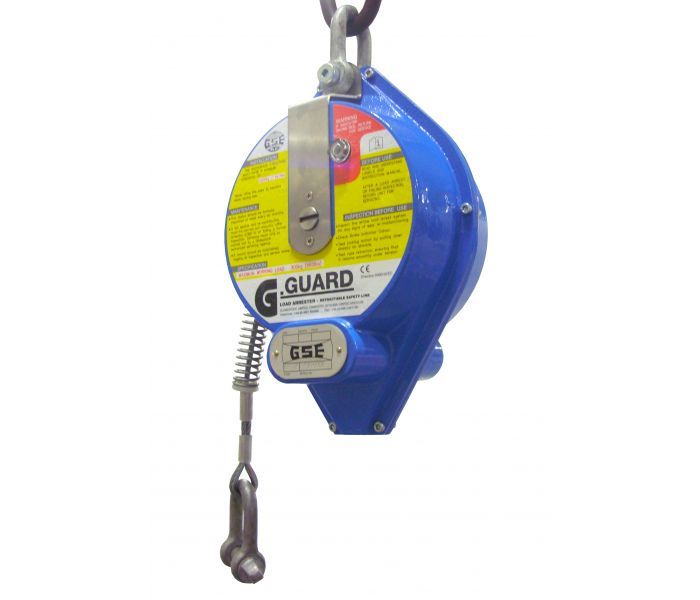

G Guard Load Arrestors - 300kg MWL - 7 to 25M

G.Guard series of load arrestors is a reliable system for automatically stopping the fall of an overhead load, protecting the load whilst at the same time reducing the chance of injury to anyone nearby. If the load enters into free-fall, the cable is pulled out at an accelerating rate; when the activation speed is reached, the braking system engages, bringing the load to a smooth and cushioned stop.

The G.Guard is a retractable, tensioned safety line for protection of machinery, high value and sensitive loads. Load arrestors provide a backup safety system to protect a load at height and automatically stop its fall, should the primary means of support fail. This helps to reduce hazards in the area below the load.

The fall protection brake can be activated by quickly extracting the safety line from within the arrestorhousing. This happens when a fall occurs. The fall protection brake includes a shock-absorbing element to minimise the forces encountered when stopping a falling load.

G-Guard load arresters are suitable for protecting both static and moving loads in a wide variety of applications. They offer an off-the-shelf solution for stopping moving loads.

Important: To receive a quotation please complete the G.Guard proposal form on page 3 of product specification sheet PDF

Range Features

  • Manufactured in the UK
  • Static or moving loads
  • Galvanised or stainless steel cables available
  • Stopping distance of approx. 0.3m to 0.7m
  • Weight: 9-21.5kg
  • Maximum running speed: 0.6m/sec
  • CE certified. Conforms to European Directive 2006/42/EC

Guidelines for safe uses PDF
