Haacon Wall mounted hand operated drum winch - Painted finish - Type 4216 250 - 500 kg capacity

Product was successfully added to your shopping cart.
You may also be interested in...
key features Space saving rope winch easily installed on flat surfaces, handle fitting on both sides removable crank handle quiet running free wheel against wrong winding-up of rope slack rope inhibiter
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From: £560.02 (Ex VAT) Incl. Tax: £653.36 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here


• Wall mounted spur gear winch with removable crank handle
• Removable crank and handle fits either front or back faces - this avoids unintentional operation – useful in non secure areas like schools etc.
• Easily installed on flat surfaces - unobtrusive or can be hidden behind a facia board.
• Internal automatic load brake, high security with a slack rope inhibiter
• Quiet in operation
• Painted finish as standard, orange
• Suitable for manual ground support truss systems
• Complies with BS EN 13157

Product code 4216 0.25 4216 0.5
Lifting capacity 1st layer (kg) 250 500
Lifting capacity last layer (kg) 162 331
Rope diameter (mm) 5 6.5
Rope capacity 1st layer  (m) 2.7 2.1
Rope capacity total (m) 15 10
Number of layers 6 6
Ratio 5.06:1 9.2:1
Lift per crank turn (mm) 47 25
Required effort daN 120 140

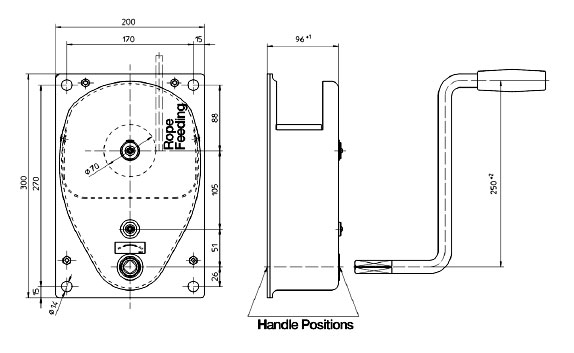

Hand winch type HA-SGS


Wire rope not included - See below  (For more options contact us)
