HV 0516, HV 1008 and HV 1016 hydraulic hand stackers
Lifting capacities 500kgs - 1000kgs
Manual drive and manual lifting>
Range of sturdy, versatile hydraulic manual drive/lift stackers with variable features.
Features include: -
• HY 0516 is very low-height and easy to manoeuvre with lifts up to 500kgs.~
• HY 1008/16 has hardened axles for a long service life and pressure valve overload protection.
• HY 1008 offers 900mm lift height.
• HY 1016 offers 1600mm lift height
• Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.
• Easy handling due to forced steering rollers.
• Lowering speed can be finely metered for sensitive lowering of the load.
• Single-acting hand pump with increased lift per handle stroke.
• Quick-lift for loads up to 100 kg.
• Robust mast construction with hard chromium plated piston.
• Steering roller with brake for safe parking of the hand stacker.
To view a more detailed description please open this website on desktop

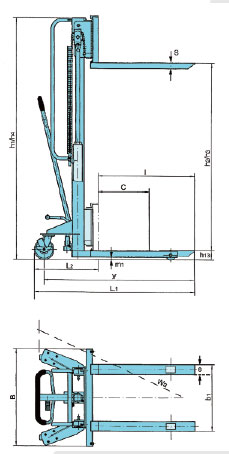

|Type Article no.||HV 0516|
|Wheel size front||mm||150 x 40||180 x 50||180 x 50|
|Load wheel size rear||mm||80 x 35||80 x 55||80 x 55|
|Number of wheels front/rear||2/2||2/2||2/2|
|Close mast height||h1||mm||2000||1300||1965|
|Mast height extended||h4||mm||2000||1300||1965|
|Fork height (maximum)||h3+h13||mm||1600||900||1600|
|Fork height (lowered)||h13||mm||80||90||90|
|Total unit length||L1||mm||1690||1675||1675|
|Total unit width||B||mm||800||765||765|
|Useable fork length||l||mm||1150||1122||1122|
|Fork widths x height||e x s||mm||100 x 45||60 x 60||60 x 60|
|Outside dimension of forks||b1||mm||200 - 770||570||570|
