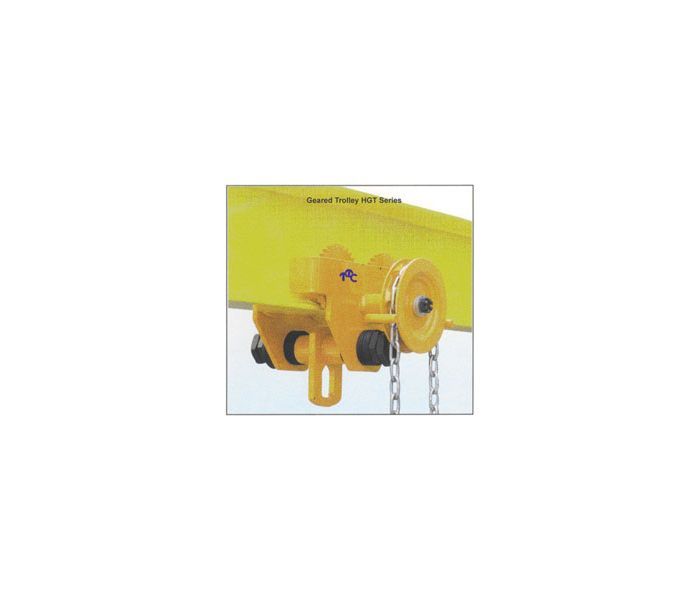

Raptor HGT Series Geared Trolley

Product was successfully added to your shopping cart.
You may also be interested in...
key features 500 kg to 20,000 kg capacity @ 3m HOL ( 2.5m Hand Chain ) - For longer HOL please contact us for quotation Double sealed ball bearings - Built-in bumper guards Adjustable to fit various sizes of flange and I-beams Can be used on straight or curved track Can be installed or removed at any point along the track
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £73.50 (Ex VAT) Incl. Tax: £88.20 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

  • 500 kg to 20,000 kg capacity
  • 2,5 m chain drop as standard - For longer chain drop contact us
  • Double sealed ball bearings
  • Built-in bumper guards
  • Adjustable to fit various sizes of flange and I-beams
  • Use on straight or curved track
  • Can be installed or removed at any point along the track
Model Capacity Kgs Dimensions BEAM SIZE Weight
HGT05 500 64mm - 140mm 14Kgs
HGT10 1000 64mm - 140mm 19Kgs
HGT20 2000 76mm - 165mm 28Kgs
HGT30 3000 76mm - 203mm 40Kgs
HGT50 5000 88mm - 203mm 65Kgs
HGT100 10000 125mm - 203mm 103Kgs
HGT200 20000 144mm - 203mm 245Kgs

For full specifications and operating instructions download PDF



To view a more detailed description please open this website on desktop
