RUD PP-B PowerPoint® Ring Connection - Metric Thread

Product was successfully added to your shopping cart.
key features Rotating 360°, pivoting 230° Thread range M12 to M36 Ring connection for hook assemblies Double ball bearing for turning/rotating operations Safety factor 4:1
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £77.95 (Ex VAT) Incl. Tax: £93.54 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

PP-B PowerPoint® Ring connection, metric thread

Complies with the machinery directives 2006/42/EG

Available for quotation with metric threads standard lengths (For for Special thread lengths please contact us for quotation)

■ Double ball bearing for free turning and soft winding

■ Suitable for all lifting/lashing means for example hooks, rings and slings.

■ Non-protruding hook tip

■ Forged safety latch, engages in the tip of the hook therefore protected against lateral bending.

■ Triple coiled corrosions protected double leg spring

■ Thickened tip of the hook prevents handling malpractices and resists bending.

 Wearing edges on both sides and gauge marks for measuring the width of the hook opening.

■ Not suitable for permanent swivelling under load

■  Even under full load, can be turned into a 90°position from the bolt centre line.

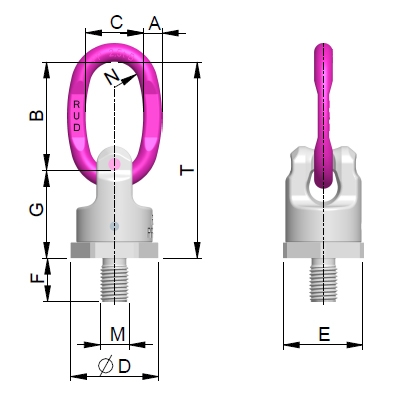

PP-B-key

PP-B The ring connection

Type WLL (t) A B C D E F G M SW R1 Weight (kg) Ref.-No. Metric
PP-B-0.63t-M12 0.63 9 65 35 40 105 18 41 12 36 15 0.35 7989522
PP-B-1.5t-M16 1.5 11 65 35 46 115 24 50 16 41 15 0.6 7989523
PP-B-2.5t-M20 2.5 13 75 40 61 135 30 61 20 55 18 1.1 7989081
PP-B-4t-M24 4.0 16 95 45 78 172 36 77 24 70 20 2.1 7989082
PP-B-5t-M30 5.0(6.7) 21 130 60 95 223 45 93 30 85 25 4.5 7989524
PP-B-8t-M36 8.0(10) 24 140 65 100 242 54 102 36 90 28 6.1 7989083

PP-S/PP-B/PP-VIP – all types in special thread lengths available

Please contact us with your requirements for special quotation

Type WLl (t) Thread size F
Vario max
Thread sise F
Vario max
So-PP-S/PP-B/PP-VIP 0.6 (0.63) M 12 140 1/2”-13UNC 45
So-PP-S/PP-B/PP-VIP 1.0 (1.5) M 14 65
So-PP-S/PP-B/PP-VIP 1.3 (1.5) M 16 180 5/8”-11UNC 55
PP-S/PP-B/PP-VIP 2.5 M 20 200
So-PP-S/PP-B/PP-VIP 3.5 (4) M 24 255 1”-8UNC 74
So-PP-S/PP-B/PP-VIP 5.0 (6.7) M 30 330 1 1/4”-7UNC 91

The warranty can only be guaranteed with originally assembled RUD components and chains!

  • Easy identification of WLL
  • Loadable in any direction. Safety factor 4: 1
  • Double ball bearing for free turning and soft winding
  • Cr, Ni, Mo-steel special quenched and tempered
  • All parts 100 % crack detected
  • Max. load limit at smallest thread diameter
  • Variable screw lengths available
  • Can also be used for through holes
  • Surface: pink powder coated
Fast amortisation because of easy handling

Notice: Follow the Instructions for use!

Can be turned under full load even in a 90-degree position from the bolt centre line.

Not suitable for permanent swivelling under full load
