RUD PP-VIP PowerPoint® Direct VIP Chain Connection - UNC Thread

Product was successfully added to your shopping cart.
key features Rotating 360°, pivoting 230° Thread range 1/2"-13 UNC to 1 1/2"-6 UNC Universal, unmistakable VIP connection for chain, hook and eye Double ball bearing for turning/rotating operations Safety factor 4:1
Select Product Options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

* Required Fields

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

PP-VIP PowerPoint® Direct VIP chain connection, UNC thread

Complies with the machinery directives 2006/42/EG

Available for quotation with UNC threads please contact us for quotation)

■ Double ball bearing for free turning and soft winding

■ Suitable for all lifting/lashing means for example hooks, rings and slings.

■ Non-protruding hook tip

■ Forged safety latch, engages in the tip of the hook therefore protected against lateral bending.

■ Triple coiled corrosions protected double leg spring

■ Thickened tip of the hook prevents handling malpractices and resists bending.

 Wearing edges on both sides and gauge marks for measuring the width of the hook opening.

■ Not suitable for permanent swivelling under load

■  Even under full load, can be turned into a 90°position from the bolt centre line.

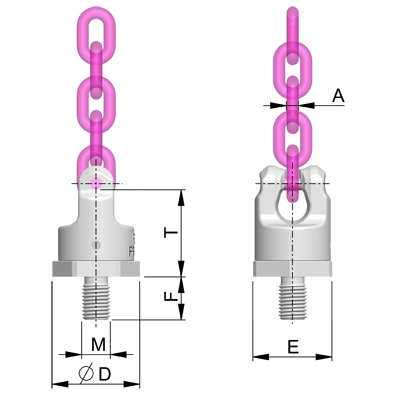

 PP-VIP-Key

PP-VIP - For direct chain connection of VIP chain

WLL
(t)
A
VIP-Chain-
connection
D  F  G  M  SW Weight (kg) Ref.-No. imperial
0.63 4 40 18 41 12 36 0.25 0.63t-1/2“-13UNC 7989920
1.5 6 46 25 50 16 41 0.45 1.5t-5/8“-11UNC 7989921
2.5 8 61 30 61 20 55 0.95 2.5t-3/4“-10UNC 7989922
2.5 8 61 30 61 20 55 0.95 2.5t-7/8“-9UNC 7989923
4.0 10 78 36 77 24 70 2.2 4t-1“-8UNC 7989924
5.0(6.7) 13 95 45 93 30 85 3.5 5t-1 1/4“-7UNC 7989925
8.0 (10) 16 100 54 102 36 90 5.2  5t-1 1/2“-7UNC 7989926


PP-S/PP-B/PP-VIP – all types in special thread lengths available

Please contact us with your requirements for special quotation

Please indicate type, thread size and F-vario!

Type WLl (t) Thread size F
Vario max
Thread sise F
Vario max
So-PP-S/PP-B/PP-VIP 0.6 (0.63) M 12 140 1/2”-13UNC 45
So-PP-S/PP-B/PP-VIP 1.0 (1.5) M 14 65
So-PP-S/PP-B/PP-VIP 1.3 (1.5) M 16 180 5/8”-11UNC 55
PP-S/PP-B/PP-VIP 2.5 M 20 200
So-PP-S/PP-B/PP-VIP 3.5 (4) M 24 255 1”-8UNC 74
So-PP-S/PP-B/PP-VIP 5.0 (6.7) M 30 330 1 1/4”-7UNC 91

The warranty can only be guaranteed with originally assembled RUD components and chains!

  • Easy identification of WLL
  • Loadable in any direction. Safety factor 4: 1
  • Double ball bearing for free turning and soft winding
  • Cr, Ni, Mo-steel special quenched and tempered
  • All parts 100 % crack detected
  • Max. load limit at smallest thread diameter
  • Variable screw lengths available
  • Can also be used for through holes
  • Surface: pink powder coated
  • Fast amortisation because of easy handling

Notice: Follow the Instructions for use!

Can be turned under full load even in a 90-degree position from the bolt centre line.

Not suitable for permanent swivelling under full load
