RUD WPP-B PowerPoint® Ring Connection For Welding

Product was successfully added to your shopping cart.
key features Rotating 360°, pivoting 230° Universal, unmistakable VIP connection for chain, hook Double ball bearing for rotating and turning actions Safety factor 4:1
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £69.72 (Ex VAT) Incl. Tax: £81.34 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

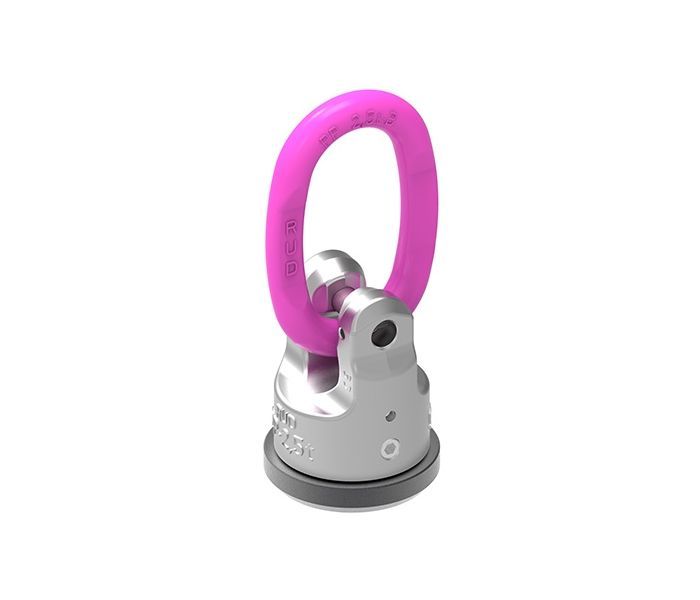

WPP-B PowerPoint® ring connection

Complies with the machinery directives 2006/42/EG



WPP-B – the ring connection for hook assemblies

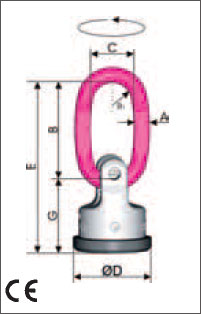

Type WLL
(t)
A B C D E G R1 Weld HY+ Weight (kg) Ref.-No.
WPP-B-0.63t 0.63 9 65 35 40 105 40 15 3.5 0.35 7989954
WPP-B-1.5t 1.5 11 65 35 46 115 50 15 4.5 0.6 7989955
WPP-B-2.5t 2.5 13 74 40 61 135 61 18 HY3+5 1.0 7989956
WPP-B-4t 4.0 16 95 45 78 172 77 20 HY3+6 2.3 7989957
WPP-B-5t 5.0 (6.7) 19 130 60 95 223 93 25 HY3+8 4.7 7989958
WPP-B-8t 8.0 (10) 24 140 65 100 242 102 28 HY3+10 5.3 7989959

( ) increased WLL in axial load direction

Can be turned even in a 90° position under full load from the bolt centre line.The warranty can only be given when assembled with original RUD components and chains!Clear identification of the WLLSafety factor 4 : 1Cr, Ni, Mo steel quenched and tempered in special steelAll components 100 % crack detectedMax. WLL with smallest welding surfaceFluorescent pink powder coatedNo damage due to safe transport, fast amortisation because of easy handlingNot suitable for permanent swivelling under full load. Notice: Follow the Instructions for use!
