MODEL

LLX2

0.5 t

LLX2

1 t

LLX2

2 t

LLX2

3.2 t

LLX2

5 t

LLX2

6.3 t

LLX2

10 t

Display Unit

Maximum capacity

t

0.5

1

2

3.2

5

6.3

10

All

Test load

t

0.75

1.5

3

4.8

7.5

9.6

15

-

Safety coefficient

Minimum 4

-

Precision

0,1 % according to ISO 376 at 21°C (I.P. 67 = 0,2 %)

-

daN

0.5

1

2

3.2

5

6.3

10

-

Increment

daN

0.1

0.2

0.5

0.5

1

1

2

<-

Max. Display

daN

550

1100

2200

3520

5500

6930

11000

<-

Number height

mm

-

-

-

-

-

-

-

25

Autonomy

From 300 to 1000 h depending of functions

48 h

Radio scope

m

80 (in open field) (I.P. 67 = 60)

RF Technology

2.4 Ghz

Weight

kg

2.300

3.350

6.45

0.180

IP Protection

I.P. 66 NEMA 4 (option : I.P. 67)

I.P. 54

Usage

From - 20° to 40°C

Sensitivity to T°

0.05% per 10°C

Head Material

Steel

-

Sensor Material

Aluminium

Steel

-

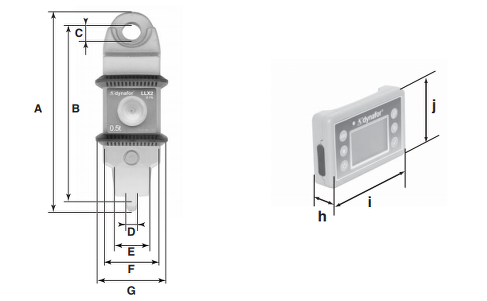

Dimensions mm

A

248

248

248

248

290

290

341

-

B

224

224

224

224

254

254

296

-

C

Ø 20

Ø 20

Ø 20

Ø 20

Ø 28

Ø 28

Ø 40

-

D

10

10

10

10

16

16

20

-

E

24

24

24

24

35

35

54

-

F

80

80

80

80

80

80

80

-

G

100

100

100

100

100

100

100

-

h

-

-

-

-

-

-

-

26.7

i

-

-

-

-

-

-

-

131

j

-

-

-

-

-

-

-

82
