Details
C42 42.4 mm dia. Mezzanine Deck Mounted Handrail kits to BS EN ISO 14122-3:2016 Safety Yellow Tube with Galvanised Clamps
Kit comprises the ready-made sections, sold separately, for quick assembly on level mezzanine decks, platforms and loading docks
The kits offer Production, Safety and Maintenance Managers the ability to immediately protect workplace areas as a result of risk assessments or other safety issues.
There is no need to weld or bend tubing and semi-skilled labour can easily install the sections. Pre-assembled uprights not only add to the simplicity but make installations extremely quick to complete, reducing expensive production downtime.
Most guardrail configurations can be constructed using a combination of the kits available. For alternative arrangememts, bespoke layouts for: Machine guarding. platforms, staircases, ramps or steps - Please supply a sketch showing the layout and dimensions to mezzbarriers@dale-lifting.co.uk or to discuss your requirements call: 0161 223 1990 for a no-obligation quotation

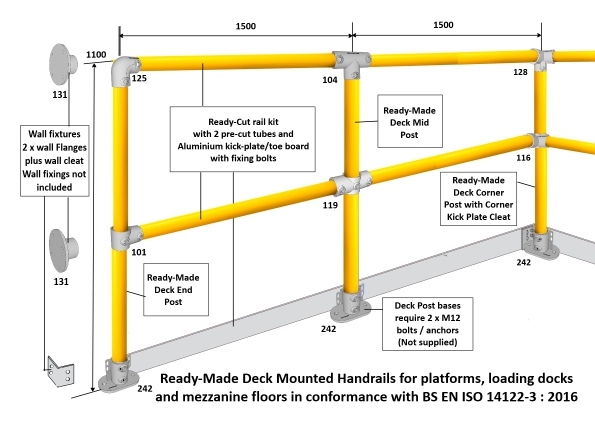

Deck Mounted End Post: comprises Safety yellow thermoplastic coated tube 1100mm o/all high, 242 base flange with kick plate attachment (Floor fixings Not included),101 short tee, 125 90 degrees 2-way elbow.
Deck Mounted Middle Post: comprises Safety yellow thermoplastic coated tube tube 1100mm o/all high, 242 base flange &;with kick plate attachment,(Floor fixings Not included),&19 2 socket cross, 104 long tee.
Deck Mounted Corner Post: comprises galvanised tube 1100mm o/all high, 242 base flange &;with kick plate attachment,(Floor fixings Not included),& 116 Corner with Through Centre Tube, 128 top corner
Straight Handrail Kit: comprises 2 pre-cut tSafety yellow thermoplastic coated tubes and 100 mm high Aluminium kick-plate/toe board with fixing bolts - for posts at 1500 mm centres.
Rail Wall Fixing kit : comrises; 2 x 131 wall Flanges plus kick plate wall cleat ;Wall fixings not included.
Hi-Vis Hazard Warning Tube Sleeving 1 metre length (Sold separately)
Yellow and black diagonal stripe - Ideal to improve the visibility of your pallet gates and handrails. Easy-fit PVC tubular sleeving - Just springs over tube and grips. Durable and wipe clean finish. (Used by scaffold companies). Fits tubes sizes B34, C42 and D48. Sold in one-metre lengths and can be butted together for longer lengths and is easily cut to fit.
'Off the Shelf' Railing Kits
Designed for quick assembly these safety railing kits, are available in 2 tube sizes- Jig assembly for accurate alignment.
The kits offer Production, Safety and Maintenance Managers the ability to immediately protect workplace areas as a result of risk assessments or other safety issues. There is no need to weld or bend tubing and semi-skilled labour can easily install sections. Pre-assembled uprights not only add to the simplicity but make installations extremely quick to complete, reducing expensive production downtime. Most guardrail configurations can be constructed using a combination of the kits available.
NB. All kits should be secured with proprietary fixing bolts or anchors (not included) to suit individual floor constructions.
Features of Pre-assembled Railing Kits
- Pre-assembled uprights
- Utilises market leading Interclamp fittings
- Interclamp components are fitted with stainless steel grub screws.
- 42.4 and 48.3 mm diameter handrails - All round tube diameters quoted are OUTSIDE diameters.
Custom kits available (Contact us)
- Powder coated Safety Yellow to RAL1007 or, your house colours.
- Variable angle adjustment for Staircase, Step and Ramp kits.
- Alternative baseplate availability. (Contact us)
- Pedestrian safety gates, self-closing gates, and cat ladder extension kits
- Mezzanine pallet gates
- High-level door opening safety loading gates
Benefits of Pre-assembled Railing Kits
- Creates a Safe environment for workers
- No welding, bending or threading required
- Versatile modular construction
- Sections can be added and changed as required making the Kit extremely versatile
- Simple installation using the hexagon key (Sold separately)
- If necessary tubes can be saw cut on site, kick plates will require redrilling after cutting or contact us for special cut-down lengths
