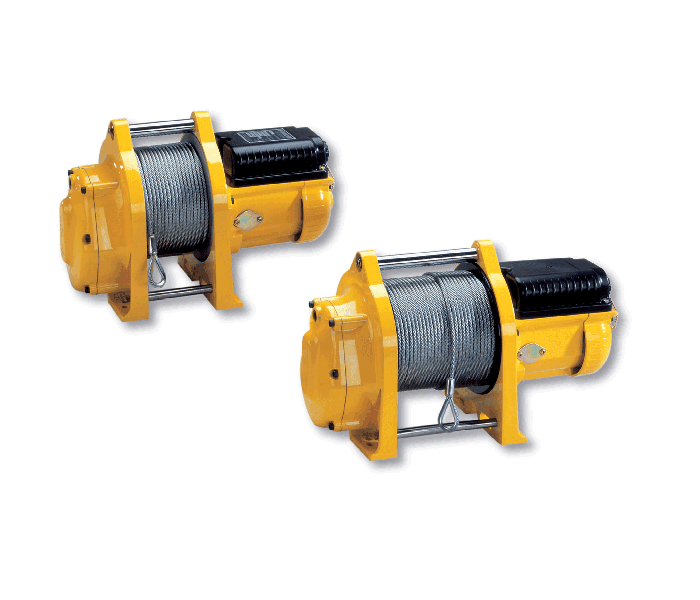

CWL Compact Winch/Hoist - 3 Models Available 200 kgs to 300 kgs -110V/240V - Electric Winches - Winches - Lifting, Hoisting and Winching

In stock
SKU
250112

CWL Compact Winch/Hoist - 3 Models Available 200 kgs to 300 kgs -110V/240V

Grouped product items
Product Name Qty
CWL200-200-kg-110V - CWL Compact Winch/Hoist
Price on Request
CWL200-200-kg-240V - CWL Compact Winch/Hoist
Price on Request
CWL200L-200-kg-110V - CWL Compact Winch/Hoist
Price on Request
CWL200L-200-kg-240V - Compact Winch/Hoist
Price on Request
CWL300L-300-kg-240V - CWL Compact Winch/Hoist-
Price on Request
Switch-Cord-Extension-10-metres - CWL Compact Winch/Hoist
Price on Request
Bracket-Hanger-kit - CWL Compact Winch/Hoist
Price on Request
240v-Radio-Control-inc-LV--Pendant - CWLCompact-Winch/Hoist - NOTE: LOW CONTROL MUST BE PURCHASED WITH THIS
Price on Request
Low-voltage-control-for-240V-models - CWL Compact Winch/Hoist-
Price on Request
In stock

Key Features

  • Galvanised steel wire rope included
  • Lightweight and compact design For easy installation
  • Enclosed Drum Flange prevents ropes becoming trapped between drum and support castings
  • Complete with 10m pendant control and with 3m power lead and industrial 16amp plug
  • Options include Radio Remote
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

Lifting Winch: CWL Compact Range

Features Include:

  • Lightweight and compact design
    For easy installation
  • Dynamic and Mechanical Brake
    Provides instant and safe braking
  • Operates on standard household power supply
    In the case of the 110v version via a transformer.
  • Comes complete with wire rope and hook.
  • Enclosed Drum Flange
    Prevents ropes from becoming trapped between drum and support castings
  • Available in 110v and 240v x 1ph
  • It comes complete with a 10m pendant control
  • It comes complete with a 3m power lead and industrial 16amp plug
  • Motor rating IP44
Optional Extras:
  • Bracket kit - Hanger kit (Suspension mode)
  • Switch cord extension leads 10 metres. (Extension)
  • Low voltage controls 240V CWL Inc 3mtr Pendant use (Also required with Radio Remote option
  • Radio Remote - 240V only * 2 function + E/Stop control system (Includes low voltage ("110V radio remote to special order only - please contatc us)



  SPECIFICATIONS CWL200 CWL200L CWL301L
 Voltage options: 110v  1ph  240v  1ph 110v  1ph  240v  1ph  240v  1ph
 Lifting:Capacity:
                              Height of lift:
200kg 200kg  300kg
45m  69m 53m
 Weight: Winch only
Total kit (ave.)
 30kg  33kg 40kg
 32kg  35kg  42kg
 Line speed: 1st layer

Last layer
11m/min   11m/min   16m/min
 16m/min   16m/min   25m/min
Duty cycle:  All 1ph have a duty cycle of 25%, with a maximum of 60 starts per hour
 Wire rope: ř x length
                         Construction
 5mm x 46m   5mm x 71m   6mm x 55m
6  x 19 wire core, galvanised for longer life.  Factor of safety  5:1
 Motor type:   Induction motor
 Outputs:           Kilowatts
                         Amperes
         1.2kw                1.2kw         2.3kw
12amp    6amp   12amp    6amp  11amp
 Braking: Motors: Electronic via resistor       Gears: Mechanical ratchet brake

 Drum:

Length

Diameterř Flange

   97mm 147mm   147mm
 95mm  95mm  95mm
 190mm  190mm   190mm
  Rope ř to mean drum ř ratio* 20:1 20:1  17:1

* Mean drum diameter = the drum diameter plus the diameter of the wire rope
