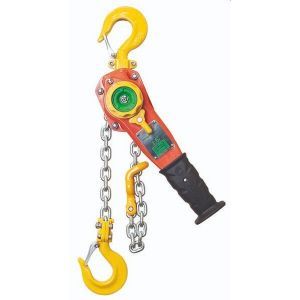

Hackett SS-L5 Overhead Line and Rail Industry Chain Lever Hoist 800 kg to 10 tonnes. (Full range)
Key Features
- WORKING LOAD LIMIT RANGE: 800 kg to 10 tonnes.
- THE RL5 "IRONMAN": can be fitted with either a clevis shackle or omega link eradicating the need for the current connecting link between the clamp and the hois
- DABS (DUAL ANTI-LOCK BRAKE SYSTEM): allows the load chain to be adjusted in freewheel mode without locking the brake.
- TRAVELLING CHAIN 'END STOP': the adjustable travelling end stop which can be positioned next to the body of the lever hoist to prevent slippage and run off.
- SLIP PREVENTION CONTOURED RUBBER "T" SHAPED GRIP: specially designed to improve grip with gloves, especially in the wet.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

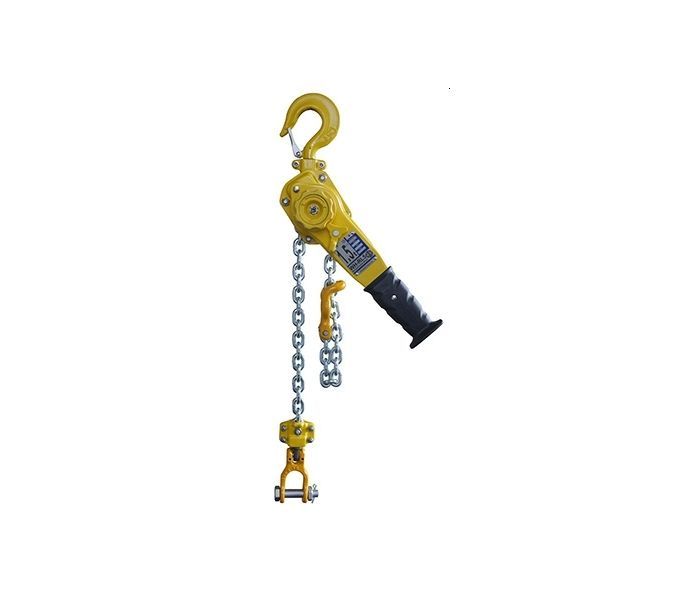

William Hackett”s SS-L5 lever hoist complies with British Standard BS EN13157:2004 +A1:2009 and Network Rail Certificate of Acceptance PA05/06687. The lever hoist capacity ranges from 800kg to 10 tonnes and the designation RL5 1.5t capacity serves a dual role. As well as being approved for overhead line work by Network Rail, the lever hoist is also designed to be used with the “Ironman” rail handling system. For the “Ironman” usage the unit is rated to 1.5 tonne and painted yellow as specified by RIS-1701-PLT.
The design and specification of the William Hackett overhead line and rail industry lever hoists include:
- THE RL5 "IRONMAN": can be fitted with either a clevis shackle or omega link eradicating the need for the current connecting link between the clamp and the hoist. The whole system will be certified as one single piece of equipment reducing time and cost when it comes to the inspection and re-certification of the lever hoist, producing a more efficient and effective piece of equipment to use in the field.
- TRAVELLING CHAIN 'END STOP': the adjustable travelling end stop which can be positioned next to the body of the lever hoist to prevent slippage and runoff.
- DABS (DUAL ANTI-LOCK BRAKE SYSTEM): prevents the accidental engagement of freewheel.
- SLIP PREVENTION CONTOURED RUBBER "T" SHAPED GRIP: specially designed to improve grip with gloves, especially in the wet.
- SECURE HOOK CLOSURE: the heavy-duty cast latch interlocks with the nib of the hook to form a secure closure and prevents side load disengagement.
- PERFORMANCE RATIO: the Working Load Limit of 1.5t for the “Ironman” at a weight of 8.5kg – gives a performance ratio of 176 : 1
- TWIN PAWLS, DOUBLE SAFETY SYSTEM: two pawls of different lengths are fitted to provide one redundant pawl and one engaged at all times. Fully secured with stainless nut and bolts
- SINTERED AND GROOVED FRICTION BRAKE PADS: sintered brake material complete with grooves and zinc flake coating means that the braking surface is kept clear of dirt or water and retain functionality in wet environments.
- COMPLIANT LOAD CHAIN: calibrated chain is in accordance with EN818-7.
- LIGHT LOAD CAPABILITY: tested and certified at 2% of the rated capacity but in operational mode has a 0% light load capacity.
- CORROSION PROTECTION: high-performance waterproof marine grease is used throughout the hoist to give long term protection in the harshest environments. Zinc flake corrosion protection along with stainless steel throughout the hoist means extended longevity of critical components.
- AVAILABILITY of all spares and service kits allow customers to take the hoist back to almost factory finish.
- THE RL5 "IRONMAN" lever hoist can be used within an operating temperature range of -40°C to +55°C.

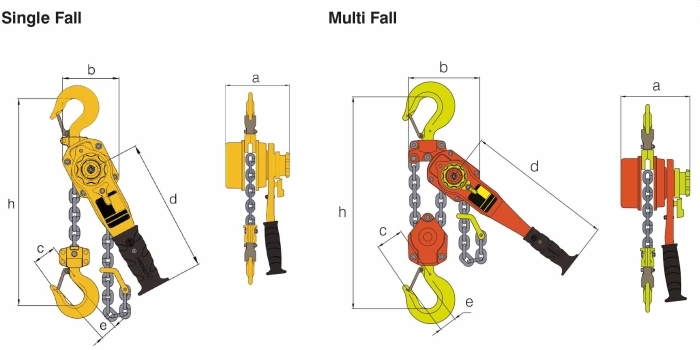

| Part Code | WLL (tonnes) |
No. of Falls |
Load Chain (mm) |
Standard Lift (M) |
a mm |
b mm |
c mm |
d mm |
e mm |
h mm |
Mass (Kg) |
Extra Weight per M (Kg) |
| 034.SS.080 | 0.80 | 1 | 5.6 x 15.7 | 1.5 | 146 | 119 | 42.0 | 245 | 27.0 | 280 | 6.90 | 0.70 |
| 034.SS.015.IM | 1.50 | 1 | 7.1 x 19.9 | 1.5 | 164 | 126 | 54.2 | 265 | 36.0 | 335 | 8.50 | 1.10 |
| 034.SS.160 | 1.60 | 1 | 7.1 x 19.9 | 1.5 | 164 | 126 | 54.5 | 265 | 36.0 | 335 | 9.00 | 1.10 |
| 034.SS.320 | 3.20 | 1 | 10 x 28 | 1.5 | 196 | 159 | 60.5 | 415 | 42.0 | 335 | 17.00 | 2.20 |
| 034.SS.630 | 6.30 | 2 | 10 x 28 | 1.5 | 196 | 218 | 85.5 | 415 | 52.5 | 540 | 33.00 | 4.40 |
| 034.SS.1000 | 10.00 | 3 | 10 x 28 | 1.5 | 196 | 298 | - | 415 | 59.0 | 680 | 50.00 | 6.60 |
