Tiger TGS Single Bar Geared Travel Beam Trolley 500 kg to 5,000 kg capacities

Product was successfully added to your shopping cart.
key features Geared Trolley Range from 0.5t to 5.0t Fitted with 2.5m Hand Chain as Standard - For longer hand chain length please contact Sales Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading The wheels run on sealed bearings for smoother rolling with less effort and maintenance The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £72.25 (Ex VAT) Incl. Tax: £84.29 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

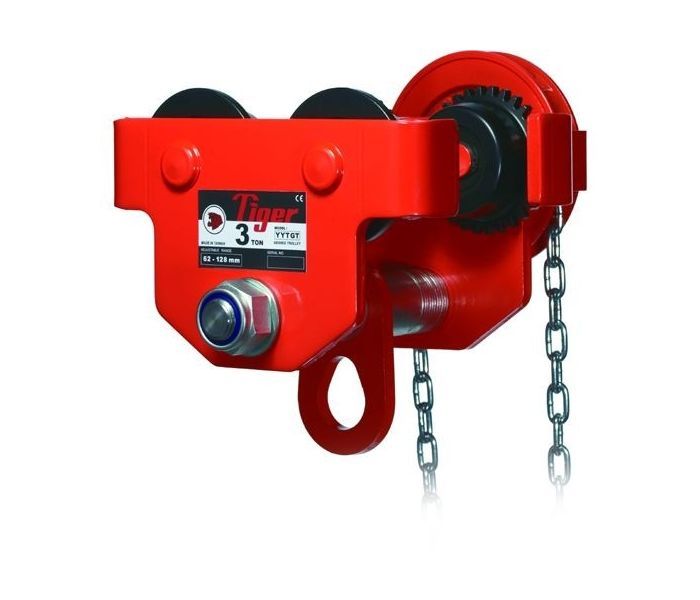

Tiger Single Bar Geared Travel Beam Trolley TGS
Two beam range width options.

These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2..
General trolley range information

  • Tiger trolleys are designed to provide smooth and easy traversing
  • Twin bar or single bar trolleys available
  • Geared Trolley Range from 0.5t to 20.0t
  • The anti-drop plate's design ensures extra safety and also prevents damage to wheels when contacting end rail stoppers
  • Geared type available (Offered with standard chain length for 3-metre drop (For longer drop please contact us for quotation)
  • Extended beam width available
  • Wheels run on sealed ball bearings for smoother rolling with less effort and maintenance
  • Plain Trolley Range from 0.5t to 10.0t
  • Corrosion or Spark Resistant versions available


Certification:
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Technical Data

Product CodeCapacity (tonne)
Track width
range 1
(mm)
Track width
range 2
(mm)
Test
Load
(tonne)
Min. curve ratio
(m)
 Geared trolley

(mm)
Hand chain
length
(m)
Mass
(kg)
TGS-00500.562-12862-2030.750.81652.58.9
TGS-01001.062-12862-2031.51.01702.511.1
TGS-02002.088-15488-2303.01.31822.516.3
TGS-03003.088-15488-2304.51.51872.523.3
TGS-05005.0106-194106-3057.51.52102.534.3



To view a more detailed description please open this website on desktop
