EYENUTS - METRIC COARSE THREAD TO DIN 582 - SELF COLOUR

Product was successfully added to your shopping cart.
key features Metric threads M6 to M48 Carbon steel, C15 MBL equals 4 x SWL This product is supplied with an EC declaration of conformity
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £0.57 (Ex VAT) Incl. Tax: £0.68 (Inc VAT)

or

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

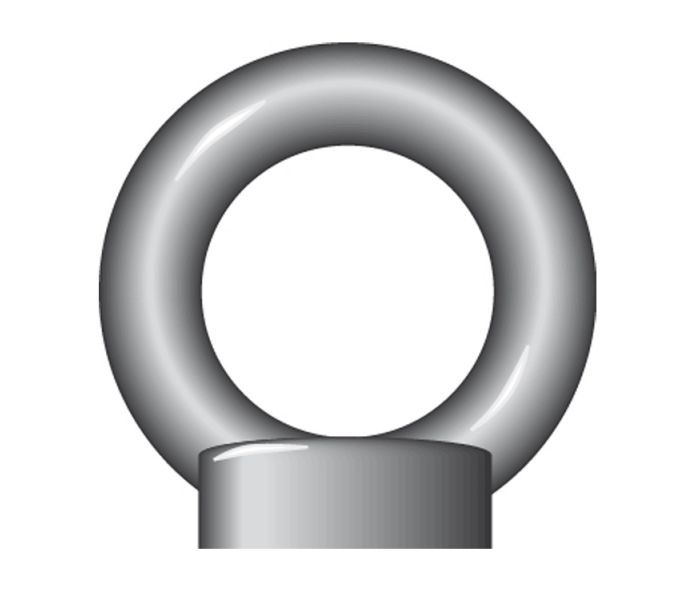

EYENUTS - METRIC COARSE THREAD TO DIN 582 - SELF COLOUR

  • Material: Carbon steel C15.
  • Minimum breaking load 4 x W.L.L.
  • Generally to DIN 582
  • Finish - Self colour
  • This product is supplied with an EC declaration of conformity
  • Sizes marked * are additional and proportional to the specification


Working
Load
Limit
Diameter
Thread
Diameter
Base
Diameter
Eye
Outside
Diameter
Eye
Inside
Thickness
Base
Height
Product
Code
Weight
Per
100 Pcs
tonnes a mm b mm c mm d mm e mm f mm   kg
0.07* 6 20 36 20 8.5 36 EN06382 5.20
0.14 8 20 36 20 8.5 36 En08582 5.20
0.23 10 25 45 25 10 45 EN10582 9.40
0.34 12 30 54 30 11 53 EN12582 16.00
0.49* 14 35 63 35 13 60 EN14582 22.00
0.70 16 35 63 35 13 62 EN16582 24.00
1.20 20 40 72 40 16 71 EN20582 35.20
1.50* 22 45 81 45 18 80 EN22582 58.60
1.80 24 50 90 50 20 90 EN24582 70.60
2.50* 27 50 90 50 20 90 EN27582 102.00
3.20 30 65 108 60 25 109 EN30582 132.00
4.30* 33 65 108 60 25 110 EN33582 170.00
4.60 36 75 126 70 30 128 EN36582 208.00
6.10* 39 75 126 70 30 130 EN39582 260.00
6.30 42 85 144 80 35 147 EN42582 311.00
8.00* 45 85 144 80 35 150 EN45582 407.00
8.60 48 100 166 90 40 168 EN48582 502.00
