STRAIGHTPOINT LOADPINS - CABLED ( LP )

Product was successfully added to your shopping cart.
You may also be interested in...
key features Requires connection to Straightpoint’s Handheld plus (HHP), Desktop Controller data logging software (DCP10M) or External Amplifier range (SA-3420) that can be configured to provide outputs such as 4-20mA, 0-10v, 0-5v for PLC or data logger integration.
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £847.20 (Ex VAT) Incl. Tax: £1,016.64 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

Load Sensor - Cabled Loadpin

ATEX/IECEx Option Available (Contact us)

The Straightpoint range of Load Measurement Pins (LMP’s) or shear pins are designed for use in applications where an end of line load cell cannot be used or an integrated solution is required in applications such as pulley or sheave axles, moorings, supports, winches or support blocks.

load pin key

Part Number

LP500KG

 LP1T

LP2.5T

LP3.5T

LP6.5T

LP15T

LP25T

LP50T

LP100T

LP250T

LP500T

LP750T

LP1000T

LP1500T

Capacity

500kg

1000kg

2.5te

3.5te

6.5te

15te

25te

50te

100te

250te

500te

750te

1000te

1500te

1100lb

2200lb

5500lb

7700lb

14000lb

33000lb

55000lb

110000lb

220000lb

550000lb

1100000lb

1650000lb

2200000lb

3300000lb

Resolution

2kg

0.5kg

0.001te

0.001te

0.002te

0.002te

0.005te

0.01te

0.05te

0.1te

0.2te

0.2te

0.5te

0,5te

0.5lb

1lb

2lb

2lb

5lb

5lb

10lb

20lb

100lb

200lb

500lb

500lb

1000lb

1000lb

Units

kgs, tonnes

lbs

Weight

0.9kg

1kg

1.2kg

1.4kg

2kg

3.1kg

5.6kg

8.6kg

11.8kg

29.8kg

79.2kg

146kg

275kg

389kg

0.4lb

0.5lb

0.9lb

1.3lb

2.6lb

5lb

10.3lb

18lb

24lb

64lb

172lb

319lb

603lb

854lb

Safety Factor

300% of SWL

Operating Temp

-20°C to +70°C / -4°F to 158°F

Accuracy

±1% of applied load

Protection

IP67 (IP68 available as an option contact us) / NEMA 6 (NEMA 6P available on application)

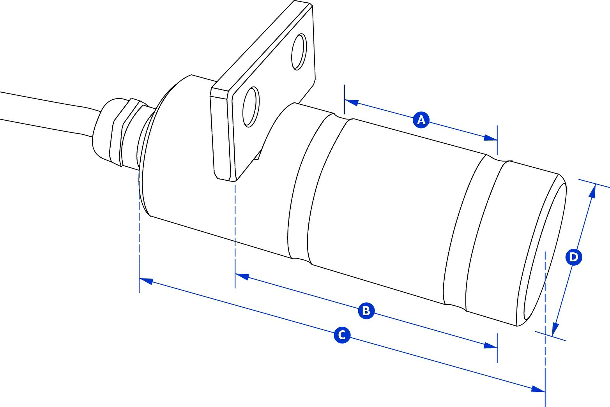

Dimension A

24

35

45

50

63

75

89

102

110

130

225

295

360

430

0.94”

1.38”

1.77”

1.97”

2.48”

2.95”

3.50”

4.02”

4.33”

5.12”

8.86”

11.61”

14.17”

16.93”

Dimension B

36

49

70

75

95

114

152

178

190

220

370

500

612

731

1.42”

1.93”

2.76”

2.95”

3.74”

4.49”

5.98”

7.01”

7.48”

8.66”

14.57”

19.69”

24.09”

28.78”

Dimension C

70

80

100

105

125

150

195

225

230

300

440

590

712

832

2.76”

3.15”

3.94”

4.13”

4.92”

5.91”

7.68”

8.86”

9.06”

11.81”

17.32”

23.23”

28.03”

32.76”

Dimension ØD

20

20

25

30

40

50

63

75

88

125

170

200

250

275

0.79”

0.79”

0.98”

1.18”

1.57”

1.97”

2.48”

2.95”

3.46”

4.92”

6.69”

7.87”

9.84”

10.83”

Note: Please advise cable configuration on order - Radial or Axial Pin exit. (see below)

SUPPLIED WITH THE FOLLOWING AS STANDARD

  • 10 Metres / 30 Feet Cable
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case

If you require a Load pin to a particular size and design,(Contact us for questionnaire

Often a customised design (Contact us) they are manufactured in-house from 17-4PH stainless steel and are normally supplied complete with an anti-rotation plate as a cabled solution.

Built to withstand the harshest environments in industries such as marine, offshore oil and gas or construction they are suitable for use in exposed situations and can be supplied as a subsea product with SubConn connectors to withstand immersion in seawater to extreme depths. For hazardous areas, we can supply a wireless ATEX or IECEx product for use in zones 0,1 and 2.

Straightpoint Loadpins are typically connected to Straightpoint’s range of handheld displays or may be supplied with a vast array of output formats to include mV/V, RS-422, RS-485, utilising the ASCII, MODBUS TRU and CAN-BUS protocols or an analogue output such as 4-20mA for PLC integration.

They are also supplied with a 10 metre / 32ft cable as standard however usable cable length varies greatly with lengths available to 1500 metres / 4900ft depending on the output format.

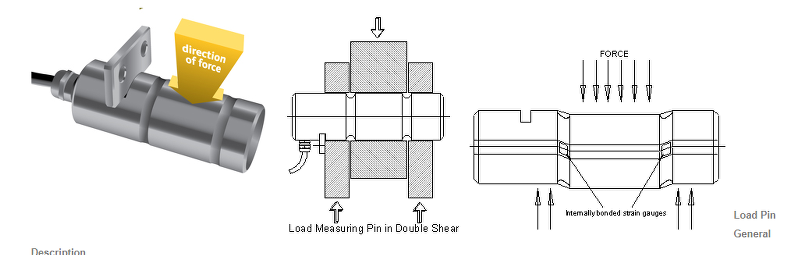

Load pin diagram

Description

A load measuring pin senses the force applied across it, via strain gauges installed within a small bore through the centre of the pin. Two grooves are machined into the outer circumference of the pin to define the shear planes, which are located between the forces being measured.

Load Pin Environmental Protection
As the instrumented area of the load pin is totally contained within a small central bore, the load pin sensor is inherently waterproof. Manufactured from special stainless steels, fitted with welded or `O' ring sealed end caps and with special attention to the signal cable glanding, a very high operating reliability can be guaranteed even for load pins operating underwater.

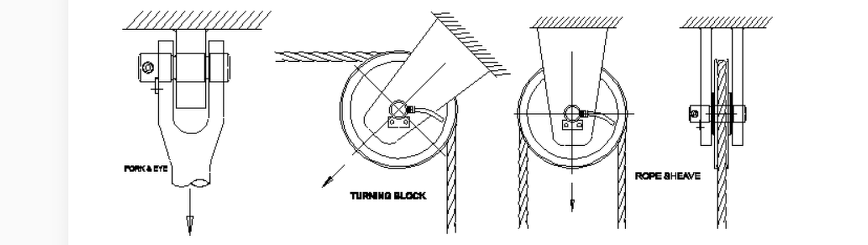

Load Pin Typical Locations
If a pin exists within a defined load path or can be fitted to experience a force, then a Straightpoint Load Pin can be installed to monitor that load. The sketches below show typical locations for load pins.

Load pin applications

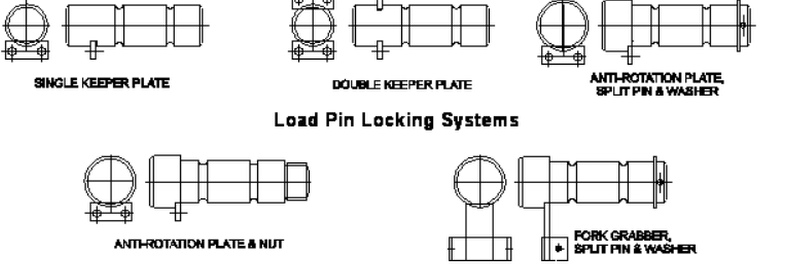

Load Pin Locking Systems

A load-measuring pin needs to be securely locked into position in order to fix its orientation with respect to its associated assembly. This needs to be fixed, both in the axial and rotation modes, to ensure that accurate and repeatable results are obtained from the system.

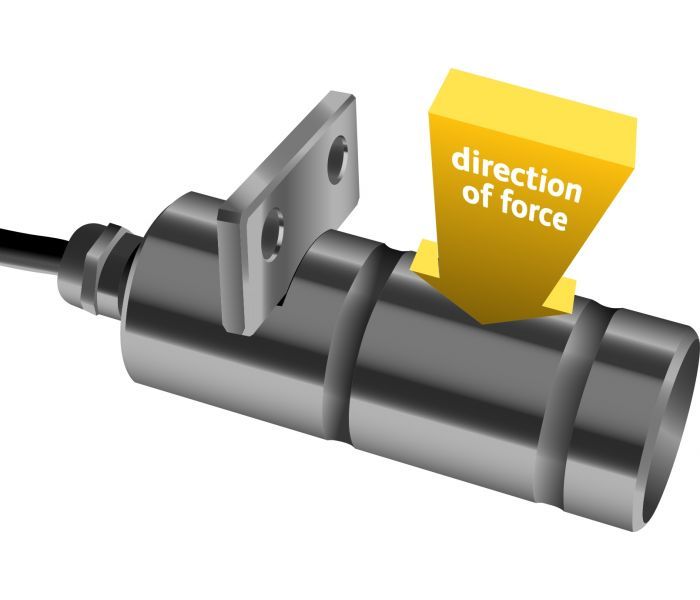

A standard load pin is designed to sense the force in one direction only. A force at right angles to that force will produce a zero output from the sensor.

Load pin locking system

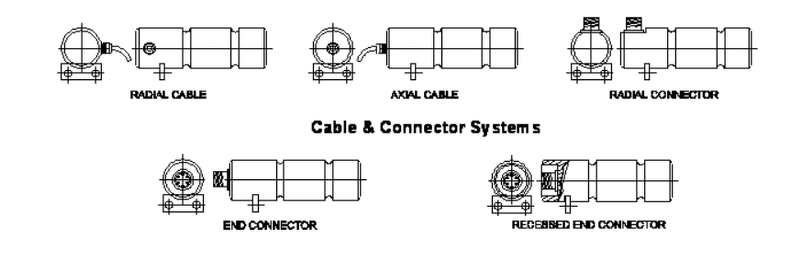

Load Pin Cable & Connector Arrangements

The signal cable can normally exit from the load pin to suit the installation and space requirements. Emphasis should be placed on the protection of the cabling system from accidental damage during installation and use.

A plug and socket breakdown can be incorporated at the load pin if required. Extra protection can be provided over the standard polyurethane sheathed cable in the form of a hydraulic hose. This provides excellent protection with the advantage of an associated fit

The signal cable can normally exit from the load pin to suit the installation and space requirements. Emphasis should be placed on the protection of the cabling system from accidental damage during installation and use.

A plug and socket breakdown can be incorporated at the load pin if required. Extra protection can be provided over the standard polyurethane sheathed cable in the form of a hydraulic hose. load pin cable connections



Requires connection to Straightpoint’s Handheld plus (HHP), Desktop Controller data logging software (DCP10M) or External Amplifier range (SA-3420) that can be configured to provide outputs such as 4-20mA, 0-10v, 0-5v for PLC or data logger integration (sold separately).

Please note if you require a Loadpin to a particular size and design (Contact us)

APPLICATIONS

  • Marine tankers, offshore platforms
  • Elevator and floor conveyor testing and certification
  • Bearing blocks, pivots and shackles
  • Cable laying equipment
  • Rope, chain, and brake anchors
  • Bridge support cables
  • Mooring lines
  • Pulleys and sheaves
  • Crane cables
  • Hoisting gear
  • Winches
  • Design validated by F.E.A.
