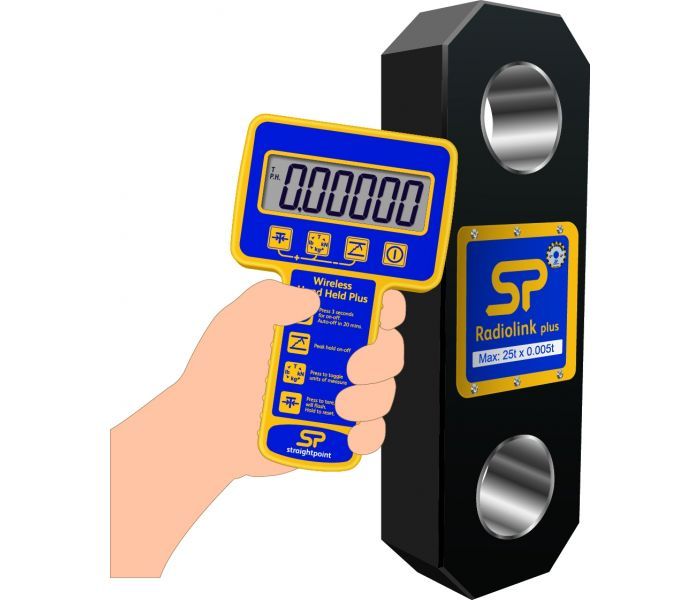

STRAIGHTPOINT RADIOLINK PLUS ( RLP ) WIRELESS LOADCELL WITH SW-HHP

Product was successfully added to your shopping cart.
key features Wireless loadcells can be supplied as Bluetooth at same price - then use HHP App Industry leading wireless range of 700m / 2300ft ( Proprietary 2.4 GHz wireless ) Unmatched battery life of 1200hrs / Environmentally sealed to IP67/NEMA6 / 90db Audible overload alarm Compact size / Lightweight aluminium / Internal antennae / Unrivalled resolution / Design validated by F.E.A. 5 tonne to 500 tonne capacities
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £1,519.20 (Ex VAT) Incl. Tax: £1,823.04 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

Capable of both weighing and dynamic load monitoring, the latest Radiolink plus is constructed of high-quality aircraft grade aluminium and features an advanced internal design structure.

This internal design structure not only provides the product with an unrivalled strength to weight ratio but it also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67/NEMA6 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments.

Benefits:

  • Proprietary 2.4 GHz wireless
  • Industry-leading wireless range of 700m/2300ft
  • Error-free data transmission
  • Unrivalled resolution
  • Environmentally sealed to IP67/NEMAG
  • 90db Audible overload alarm
  • Unmatched battery life of 1200hrs
  • Internal antennae
  • Compact size
  • Remote on-off
  • Lightweight aluminium
  • 100 Hz Peak hold
  • Advanced options available
  • Push button tare
  • Design validated by F.E.A.

Specifications

Part Number  RLP1T  RLP2T5 RLP5T RLP12T RLP25T RLP35T  RLP50T RLP75T RLP100T RLP150T RLP200T  RLP250T RLP300T
Capacity 1,000kg 2.5te 5te 12te 25te 35te 50te 75te 100te 150te 200te 250te 300te
2200lb 5500lb 11000lb 26000lb 55000lb 77000lb 110000lb 165000lb 220000lb 330000lb 440000lb 550000lb 660000lb
Resolution 0.5kg 0.001te 0.001te 0.002te 0.005te 0.005te 0.01te 0.01te 0.05te 0.05te 0.1te 0.1te 0.1te
1lb 2lb 2lb 5lb 10lb 10lb 20lb 20lb 100lb 100lb 200lb 200lb 200lb
Units kg te te te te te te te te te te te te
lb lb lb lb lb lb lb lb lb lb lb lb lb
Weight 1.4kg 1.4kg 2kg 3.2kg 5kg 8.6kg 11.5kg 16kg 34kg 46kg 72kg 72kg 118kg
3.1lb 3.1lb 4.4lb 7.1lb 11lb 19lb 25.3lb 35.3lb 75lb 101.4lb 158.7lb 158.7lb 260lb
Safety Factor 12:01 05:01 05:01 05:01 05:01 05:01 05:01 05:01 05:01 04:01 05:01 04:01 05:01
Battery Type Handheld 2 x AA/Load cell 4 x AA | Ex Handheld 2 x Energizer® Ultimate Lithium AA Batteries / Loadcell 4 x Energizer® Ultimate Lithium AA Batteries
Battery Life Handheld 60 hours/Load cell 1200 hours continuous
Display Type 6 digit 25mm / 1” LCD
Operating Temp -10°C to +50°C / 14°F to 122°F
Accuracy ± 0.3% of applied load
Frequency 2.4 GHz
System Range 700 metres / 2300 feet
Data Rate 3 Hz - up to 200 Hz can be ordered for dynamic load monitoring applications
Protection IP67 / NEMA 6
Dimension A 204 204 249 305 340 393 424 470 608 670 700 700 806
8.03” 8.03” 9.80” 12.01” 13.39” 15.47” 16.69” 18.50” 23.94” 26.38” 27.56” 27.56” 31.73”
Dimension B 43 43 43 47 60 75 75 75 99 99 144 144 150
1.69” 1.69” 1.69” 1.85” 2.36” 2.95” 2.95” 2.95” 3.90” 3.90” 5.67” 5.67” 5.91”
Dimension C 101 101 101 101 115 126 163 202 255 303 320 320 426
3.98” 3.98” 3.98” 3.98” 4.53” 4.96” 6.42” 7.95” 10.04” 11.93” 12.60” 12.60” 16.77”
Dimension D 146 146 165 193 215 225 230 260 320 360 350 350 350
5.75” 5.75” 6.50” 7.60” 8.46” 8.86” 9.06” 10.24” 12.60” 14.17” 13.78” 13.78” 13.78”
Dimension ØE 24.5 24.5 38 47.5 55 60 76 76 109 109 132 132 160
0.96” 0.96” 1.50” 1.87” 2.17” 2.36” 2.99” 2.99” 4.29” 4.29” 5.20” 5.20” 6.30”
Dimension F 48 48 66
1.89” 1.89” 2.60”
Dimension G 19 19 32 Not relevant in this capacity
0.75” 0.75” 1.26”
Crosby Shackle G2130 G2140
Loading Pin Ø 19 19 25 35 51 57 57 70 83 95 121 127 152
3/4” 3/4” 1” 1 3/8” 2” 2 1/4” 2 1/4” 2 3/4” 3 1/4” 3 3/4” 4 3/4” 5” 6”

Featuring

  • industry-leading wireless technology and range of 700m/2300ft
  • The versatile Radiolink plus is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz.
  • Data is transmitted wirelessly utilising the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error-free transmission of both static weight and dynamic load to a wireless handheld controller.
  • Designed for measurement of both static and dynamic loads the Radiolink plus can also be used in combination with Straightpoint’s range of SW-MWLC high-speed wireless data logging software allowing for simultaneous control, display and real-time data logging of up to 100 Straightpoint wireless load cells.
  • The Radiolink plus may also be used with Straightpoint’s Proof Test plus software package allowing the operator to perform load tests at a safe distance and generate real-time test certificates on site.
  • The Radiolink plus utilises easily sourced AA alkaline batteries and features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure, and replacement.
  • A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs.

It is easy to see why, globally, the Radiolink plus is the number one choice for weighing and dynamic load monitoring in critical lift planning and execution.

FEATURES AND BENEFITS
  • Proprietary 2.4 GHz Wireless
  • Industry Leading Wireless Range
  • Error Free Data Transmission
  • Unrivalled Resolution
  • Environmentally Sealed
  • Audible Overload Alarm
  • Unmatched Battery Life
  • Internal Antennae
  • Compact Size
  • Remote On-Off
  • Lightweight
  • Peak Hold
  • Advanced Options Available
  • Tare
  • Design validated by F.E.A.
APPLICATIONS
  • Water weight Testing
  • Overhead Weighing
  • Loadcell Rental
  • Bollard PullingTug Testing
  • Stevedoring
  • Heavy Lift
  • Load sense on jib winches
  • Ship to ship transfers (STS)

SUPPLIED WITH THE FOLLOWING AS STANDARD
  • Remote Hand Control
  • 4 x AA Batteries
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • RFID Tagged
