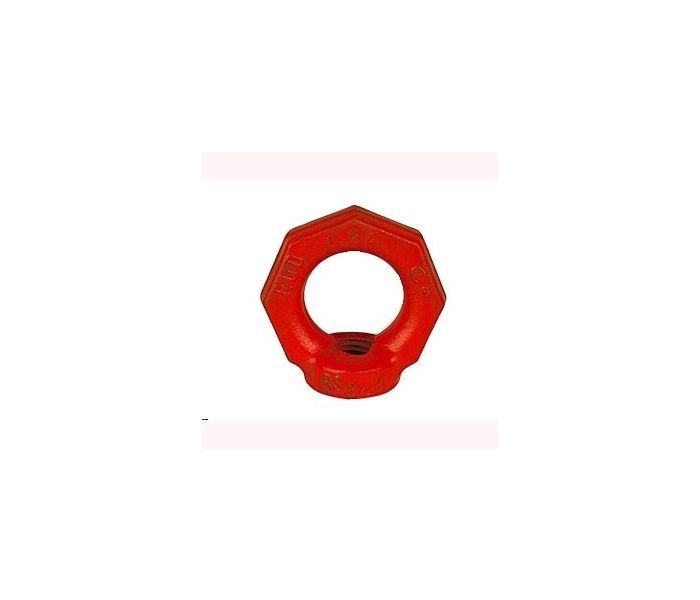

RUD RM Eye Nut - Metric Thread
- For detailed specification, dimensions and load ratings please download PDF
- Metric threads M6 to M48
- Clear marking of the minimum WLL
- Safety factor 4:1
RM Eye Nut - Metric Thread
For detailed specification, dimensions and load ratings please download PDF
Higher WLL than compared with DIN 582 eye nuts.
Forged, tempered and 100% crack detected. Fool-proof compared with common DIN eye nuts by:
Shape: Octagonal means quality class 8
Identification: the distinct indication of WLL for the most unfavourable case (lateral load - not allowed with DIN 582).
In order to guarantee the WLL, the thread connection must at least consist of quality 8.8. Eyenut must be bolted tight during use. Avoid twisting movements during transport.
The given WLL is only valid in connection with threaded bolts of at least quality class 10.9.
|Type||WLL F (t)||Weight kg||Ref.-No.|
|R M - M 6||0.1||0.1||55254|
|R M - M8||0.2||0.1||55255|
|R M - M10||0.25||0.1||55258|
|RM - M12||0.4||0.2||55271|
|RM - M 14||0.75||0.25||55281|
|RM - M 16||1||0.3||55460|
|RM - M 20||1.5||0.45||55343|
|RM - M 24||2||0.7||55394|
|RM – M 30||3||1.6||55438|
|RM – M 36||4||6.0||53093|
|RM– M 42||6||6.2||53095|
|RM – M 48||8||6.4||53098|
