Yale RPE 400V or 230V Electric Wire Rope Winches - 250-1000 kg - Yale Winches - Yale - By Brand

In stock
Only %1 left
SKU
388

Yale RPE 400V or 230V Electric Wire Rope Winches - 250-1000 kg

From £2,305.18 £1,920.98
In stock

Key Features

  • 250 to 1000 kg capacities
  • Spring pressure disc brake incorporated in the motor holds the load secure
  • Designed explicitly for performance, efficiency and safety
  • Extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position
  • Many optional features available - Please contact us
Delivery Options
Buy online to save 10% off Yale List Price

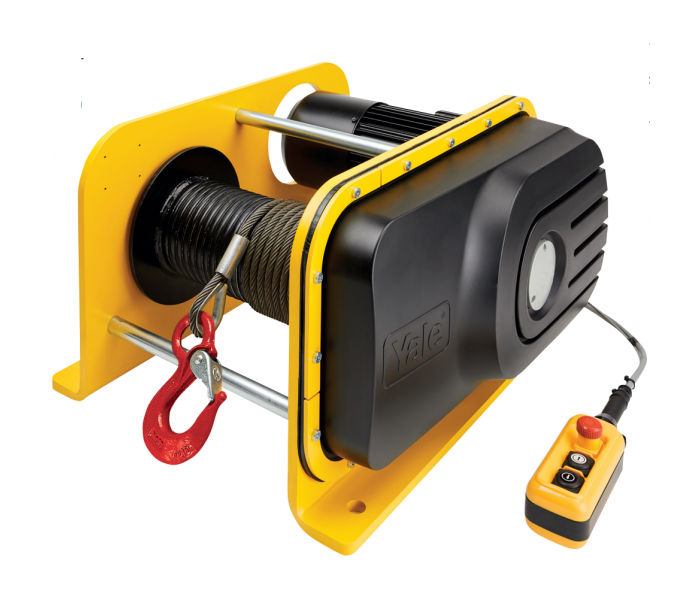

YALE Electric winch model RPE Capacity 250 - 1000 kg

Winches series RPE  are designed explicitly for performance, efficiency and safety and offer many advantages
and options. RPE‘s extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position and make them powerful aids for lifting and pulling loads.


Technical data model RPE
Model Capacity


kg
Lifting speed 1st layer m/min Lifting speed top layer m/min Rope diameter

mm
Motor


kW
ED


%
Useable rope length 1st layer
m
Useable rope length top layer
m
Weight without rope kg
RPE 2-13 250 10.2 13.2 4 0.55 40 11.2 54.5 31.8
RPE 5-6 500 4.6 6.6 6 0.55 40 7.0 38.8 32.8
RPE 5-12 500 8.7 12.6 6 1.1 40 11.0 55.4 41.0
RPE 9-6 990 5.1 6.5 8 1.1 40 10.2 37.4 76.0
RPE 10-6* 1000 5.1 6.5 8 1.1 40 10.2 37.4 76.9

The winches are designed to DIN 15020, classification 1 Bm/M3, safety regulation BGV D8 (winch, lift and pull
equipment) and, of course, the EC machinery directives. Every winch is factory tested with overload.

The units are supplied with a test certificate showing the unit‘s serial-no. and an operating instructions manual
which contains a manufacturer‘s declaration.

Features
  • Compact dimensions due to internal brake motor.
  • Voltage 400 V/230 V, 3-phase, 50 Hz, protected to IP 54, insulation class F. or  Single-phase A.C. motor 230 V, 50 Hz, 42 V low voltage control.
  • Adjustable slip clutch to protect the winch from overloading standard for model RPE 10-6.
  • Spur gear transmission with helical first gear ensures smooth motion. Lubricated by grease and can, therefore, be used in any position.
  • Spring pressure disc brake incorporated in the motor holds the load secure even in the event of a power failure.
  • Plain rope drum standard.
  • The rope is secured to the drum in a recess so that the rope can be wound onto the drum in several layers without damage.
  • Direct control or 42 V low voltage control (incl. pushbutton with emergency-stop and 2 m control able).



Options - Contact us
  • Different drum designs, e.g. extended to accommodate longer rope (see below)
  • Machined grooves for exact reeling, with separation web and 2nd rope outlet for working with two ropes.
  • Geared limit switches to limit rope motion in both directions (in combination with 42 V low voltage control).
  • Slack rope switch to automatically stop the winch when rope tension eases e.g. when the load touches down (only in combination with low voltage control)
  • Frequency converter for stepless speed control.
  • Adjustable slip clutch to protect the winch from overloading for models RPE 2-13, RPE 5-6 and RPE 5-12.
  • Special design according to BGV C1 for theatre stage applications available.
  • Radio remote control.Other operating voltages - Note: 110V not available.
  • Stainless brake.

Technical Specifications

Model Pulling force in the upper layer Lifting Speed (upper layer) Rope dia Motor performance ED at 120 c/h Weight without rope
daN m/min mm kW % kg
RPE 2-13 250 13.0 4 0.55 40 31.8
RPE 5-6 500 6.5 6 0.55 40 32.8
RPE 5-12 500 12.0 6 1.10 40 41.0
RPE 9-6 990 6.0 8 1.10 40 76.0
RPE 10-6** 1000 6.0 8 1.10 40 76.9
**with slip clutch
Plain standard drum (longer useable rope length).
Pulling force in all layers (daN) Lifting speed upper layer (m/min) Drum size Max rope length upper layer (m)
250 13.0 1 54.5
500 6.5 1 38.8
500 12.0 1 55.4
990/100 6.0 1 37.4
250 13.0 2 80
500 6.5 2 58
500 12.0 2 58
990/1000 6.0 2 56
250 13.0 3 200
500 6.5 3 140
500 12.0 3 140
990/1000 6.0 3 100
Grooved drum (larger drum diameter) only for single layer operation. 1st layer (m)
250 13.0 1 8.6
500 6.5 1 5.8
500 12.0 1 5.8
990/1000 6.0 1 6.8
250 13.0 2 15
500 6.5 2 10.7
500 12.0 2 10.7
990/1000 6.0 2 12.7
250 13.0 3 44
500 6.5 3 31
500 12.0 3 31
990/1000 6.0 3 29


* Please note that ropes are not included in the price
