Hand chain hoist with integrated push or geared type trolley (low headroom) model Yalelift LH ATEX

Capacity 500 - 10000 kg

Protection classification:
EX II 2 GD c IIB T4 T 125° C X,
EX II 2 GD c IIB T3 T 145° C

The hand chain hoist model Yalelift LH with integra- ted low headroom manual trolley is the consequent further development of the Yalelift IT. Wherever an even smaller headroom is essential, the Yalelift LH is the ideal choice.

Technical data model Yalelift LH ATEX with integrated push type trolley

Model

Capacity in  kg/ number of chain falls

Size

Beam flange width b



mm

Beam flange thickness
t max.



mm

Min. curve radius




m

Weight*
at standard lift (3 m)
- P


kg

Weight*
at standard lift (3 m)
with beam brake
- P
kg
YLLH ATEX 500500/1A60 - 180190.92733
YLLH ATEX 500500/1B180 - 300190.92734
YLLH ATEX 10001000/1A70 - 180190.93543
YLLH ATEX 10001000/1B180 - 300190.93644
YLLH ATEX 20002000/1A82 - 180191.156169
YLLH ATEX 20002000/1B180 - 300191.156270
YLLH ATEX 30003000/1A100 - 180191.5107116
YLLH ATEX 30003000/1B180 - 300191.4109118
YLLH ATEX 50005000/2A110 - 180272.0152162
YLLH ATEX 50005000/2B180 - 300271.8156166
YLLH ATEX 1000010000/3A125 - 180401.8on requeston request
YLLH ATEX 1000010000/3B180 - 310401.8on requeston request

Technical data model Yalelift LH ATEX with integrated geared type trolley

Model

Capacity in  kg/ number of chain falls

Size

Beam flange width b



mm

Beam flange thickness
t max.



mm

Min. curve radius




m

Weight*
at standard lift (3 m)
- G


kg

Weight*
at standard lift (3 m)
with beam brake
- G
kg
YLLH ATEX 500500/1A60 - 180190.93138
YLLH ATEX 500500/1B180 - 300190.93238
YLLH ATEX 10001000/1A70 - 180190.94048
YLLH ATEX 10001000/1B180 - 300190.94149
YLLH ATEX 20002000/1A82 - 180191.156573
YLLH ATEX 20002000/1B180 - 300191.156775
YLLH ATEX 30003000/1A100 - 180191.5112121
YLLH ATEX 30003000/1B180 - 300191.4114123
YLLH ATEX 50005000/2A110 - 180272.0157167
YLLH ATEX 50005000/2B180 - 300271.8161171
YLLH ATEX 1000010000/3A125 - 180401.8230on request
YLLH ATEX 1000010000/3B180 - 310401.8232on request
*P = with pushed trolley
*G = with geared trolley

Features
  • The specially developed chain reeving system and chain guide allow the bottom block to be pulled laterally to the hoist even further up and almost against the beam flange.
  • The integrated design of the innovative Yalelift LH uses the same manual trolleys as incorporated in the Yalelift IT series.
  • All models of the LH series up to 3000 kg capacity are provided with single chain fall.
  • The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
  • The trolleys are offered for two beam ranges. Range A for a flange width up to 180 mm is stan- dard and covers approx. 80 % of all requirements. Conversion to range B for beam width up to 300 mm can be easily accomplished.
  • The low headroom version of the Yalelift IT is adju- stable to fit a wide range of beam profiles (e.g. INP, IPE, IPB).
  • The solid bronze trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
  • Anti-tilt and anti-drop devices are standard.
  • Explosion protected version with spark resistant coating.
  • Trolleys equipped with rubber buffers.
  • Copper-plated load hooks.

Option

  • Load chain from stainless steel.
  • Overload prevention device
  • Chain container
  • Beam locking device

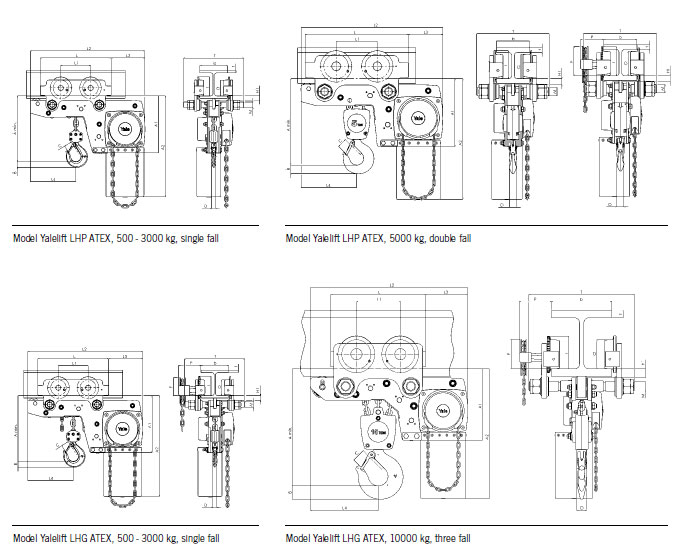

Dimensions model Yalelift LH ATEX

Model

YLLH ATEX 500

YLLH ATEX 1000

YLLH ATEX 2000

YLLH ATEX 3000

YLLH ATEX 5000

YLLH ATEX 10000
Amin., mm188211264316425565
A1, mm223250289346345365
A2, mm381427511614612665
B, mm172230384568
C, mm242935404768
D, mm141922303750
F (Geared), mm929291107150150
H1, mm242424323145
I (Pushed), mm727296131143170
I (Geared), mm777798133149170
L, mm270310360445525485
L1, mm130130150180209225
L2, mm444488582690720805
L3, mm124135172203175215
L4, mm184201230265283348
M, mmM 18M 22M 27M 30M 42M 48
O, mm606080112125150
P (Geared), mm108110112112117165
T (area A), mm280290305320364440
T (area B), mm400410425440484540
