42.4 mm OD Safety / Pedestrian Barrier Assemblies-Galvanised Finish
- Ready-Made Lengths 1.0 m to 6.0 m for level surfaces
- A rapid assembly and cost-effective solution for industrial and workplace safety barriers
- Robust and suitable for inside or outside use.
- Galvanised tube with galvanised tube clamps with stainless steel hex screws.
- Sold with ready-assembled posts and pre-cut tube handrails for simple installation

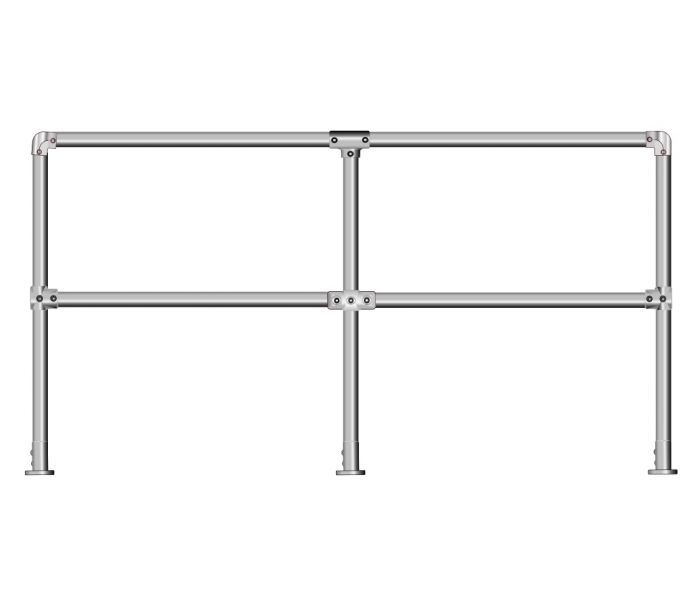

42.4 MM OD READY-MADE HANDRAIL ASSEMBLIES FOR LEVEL SURFACES
SUPPLIED FLATPACK (POSTS ASSEMBLED)
See PDF LAYOUT for typical assemblies
Finish options: all galvanised tube with galvanised tube clamps with stainless steel hex screws. (Also available in Safety yellow thermoplastic tube finish)
A rapid assembly and cost-effective solution for industrial and workplace safety barriers. Robust and suitable for inside or outside use.
Typical Applications Include:
- Pedestrian walkways
- Personnel safety
- Machinery guardrails
- Social distancing
- Zone segregation
- Industrial handrailing
Supplied as ready-assembled posts and pre-cut tube handrails for simple installation
Stock Lengths to order are as follows:
1.0 m (2 posts @ 1 m centres), 1.5 m (2 posts @ 1.5 m centres, 2.0 m (3 posts @ 1 m centres), 2.5 m (3 posts @ 1.25 m centres), 3.0 m (3 posts @ 1.5 mm centres), 4.0 m (5 posts) @ 1.0 m centres), 4.5 m (4 posts @ 1.5 m centres), 5.0m ((5 posts @ 1.25 m centres), and 6.0 m (5 posts @ 1.5 m centres).
End Post: comprises galvanised tube 1100mm o/all high, 132 base flange, 101 short tee, 125 90 degrees 2-way elbow
Middle Post comprises galvanised tube 1100mm o/all high, 132 base flange, 119 2 socket cross, 104 long tee
Twin Horizontal rails pre-cut to suit post centres as per listed in stock lengths above (See PDF specification sheet for details).
Additional equipment from DLH Online
Retro-Fit Self Closing Safety Gates
The Mezzbarriers Retro-Fit Self Closing Safety Gate enables compliance to EN 14122, These self-closing gates are the preferred solution, superior to chains, bars or sliding tubes when protecting access areas as they automatically close behind the user - overcoming the problem of human error.
Optimum gap size 1000 mm (Can be cut down to suit application). Gate is 650 mm high Can be mounted right or left-handed to suit the application. Spring Closure with hinges with stainless steel springs. These gates are manufactured utilising tube clamp components and are galvanised finish as standard. Width adjustment can easily be carried out on-site with a hexagon key and suitable steel cutting saw. Fixing clamps included to suit different configurations
Hi-Vis Hazard Warning Tube Sleeving 1 metre length (Sold separately)
Yellow and black diagonal stripe - Ideal to improve the visibility of your pallet gates and handrails. Easy-fit PVC tubular sleeving - Just springs over tube and grips. Durable and wipe clean finish. (Used by scaffold companies). Fits tubes sizes B34, C42 and D48. Sold in one-metre lengths and can be butted together for longer lengths and is easily cut to fit
Off the Shelf' Railing Kits for you to design and build the handrails to your specification in all galvanised or safety yellow tube finish includes end post, middle post, corner post and ‘P’ end posts plus pre-cut horizontal rails in various lengths
Designed for quick assembly these safety railing kits, are available 2 tube sizes- Jig assembly for accurate alignment.
Standard twin Rail for level surfaces ( Pick and mix )
Deck-mounted mezzanine handrail with kick plate
Side-mounted mezzanine handrail with kick plate
Custom-built handrails for slopes, staircases, platforms machine guarding, DDA compliant etc. to quotation.
The kits offer Production, Safety and Maintenance Managers the ability to immediately protect workplace areas as a result of risk assessments or other safety issues. There is no need to weld or bend tubing and unskilled labour can easily install sections. Pre-assembled uprights not only add to the simplicity but make installations extremely quick to complete, reducing expensive production downtime. Most guardrail configurations can be constructed using a combination of the kits available.
NB. All kits should be secured with proprietary fixing bolts or anchors (not included) to suit individual floor constructions.
