Yale C85 / D85 Pul-Lifts 750 kg to 10,000 kg

Product was successfully added to your shopping cart.
Select Product Options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

* Required Fields

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

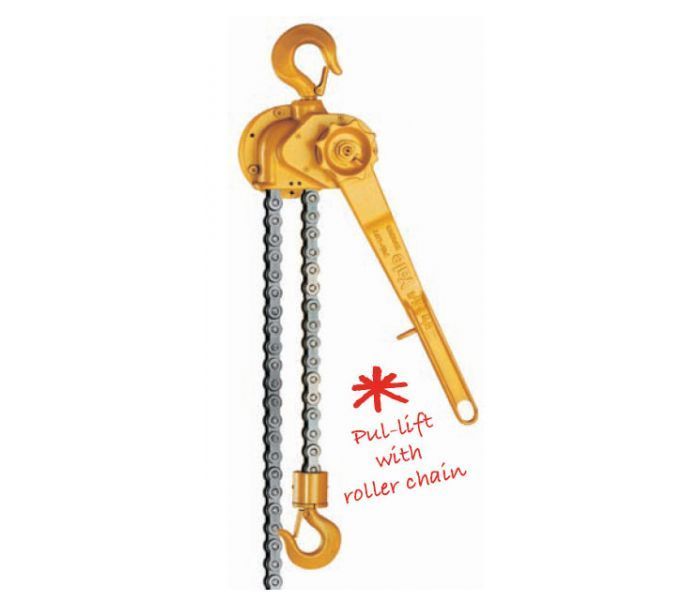

Ratchet lever hoist with roller chain model C 85 - Capacity 750 - 3000 kg
Ratchet lever hoist with link chain model D 85 - Capacity 750 - 10000 kg of lift


Standard lift 1.5 metres (Enter height required)

Almost unlimited applications in maintenance, mining, construction, steel fabrication, shipbuilding, and utility work. Ideal for moving and positioning heavy machines and securing heavy loads simplifies setting pipes etc. in manholes and trenches.

Download specification (PDF) in CMCO Catalogue online

Features:

• Enclosed housing with housing cover, hand lever and bottom block made from high tensile white malleable cast iron for overall rugged construction.
• The graphite cast iron load sheave for the link chain has precision machined chain pockets for accurate fit and durability of the load chain.
• The roller chain sprocket is made from heat-treated chromium-molybdenum steel with precision machined teeth to ensure smooth chain movement.
• Alloyed steel link chain with zinc-plated resp. yellow chromate finish, in accordance with national and international standards and regulations.



Options:

• All models can be equipped with an overload prevention device in the form of a slip clutch which is
factory preset to approx. 25 % ± 15 % overload. (Contact us)
• Free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.



Technical Date Model C85 Roller chain
Model Capacity


kg
Number of chain falls Chain dimensions d x p
Inch
Lift with one full lever turn
mm
Handle pull at WLL

daN
Weight
at standard lift
(1.5 m)
kg
PUL-LIFT C 85 750 750 1 5/8" x 3/8" 115 38 8.7
PUL-LIFT C 85 1500 1500 1 1" x 1/2" 45 31 17.0
PUL-LIFT C 85 3000 3000 1 1 1/4" x 5/8" 36 40 22.2



Technical Date Model D85 Link chain
Model Capacity


kg
Number of chain falls Chain dimensions d x p
mm
Lift with one full lever turn
mm
Handle pull at WLL

daN
Weight
at standard lift
(1.5 m)
kg
PUL-LIFT D 85 750 750 1 6 x 18,5 111 38 8.2
PUL-LIFT D 85 1500 1500 1 9 x 27 45 31 16.3
PUL-LIFT D 85 3000 3000 1 11 x 31 33 40 19.6
PUL-LIFT D 85 6000 6000 2 11 x 31 17 42 32.9
PUL-LIFT D 85 10000 10000 3 11 x 31 11 37 60.0



Model C85 Dimensions
Model PUL-LIFT C 85
750
PUL-LIFT C 85 1500 PUL-LIFT C85 3000
A min., mm 322 389 403 560 785
B, mm 21 27 35 48 61
C, mm 27 30 34 46 54
D, mm 15 20 25 40 40
D1, mm 17 23 25 40 45
E, mm 443 443 570 570 570
F, mm 112 189 197 197 305
G, mm 56 134 142 142 163
H, mm 56 55 55 55 142
J, mm 142 171 179 218 218
K, mm 39 72 76 76 76
L, mm 103 99 103 142 142



Model D85 Dimensions
Model PUL-LIFT D 85 750 PUL-LIFT D 85 1500 PUL-LIFT D 85 3000 PUL-LIFT D 85 6000 PUL-LIFT D 85 10000
A min., mm 322 389 403 532 805
B, mm 21 27 35 48 61
C, mm 27 30 34 46 54
D, mm 15 20 25 40 40
D1, mm 17 23 25 40 45
E, mm 443 443 570 570 570
F, mm 112 189 197 197 305
G, mm 56 134 142 142 163
H, mm 56 55 55 55 142
J, mm 142 171 179 218 218
K, mm 39 72 76 76 76
L, mm 103 99 103 142 142
