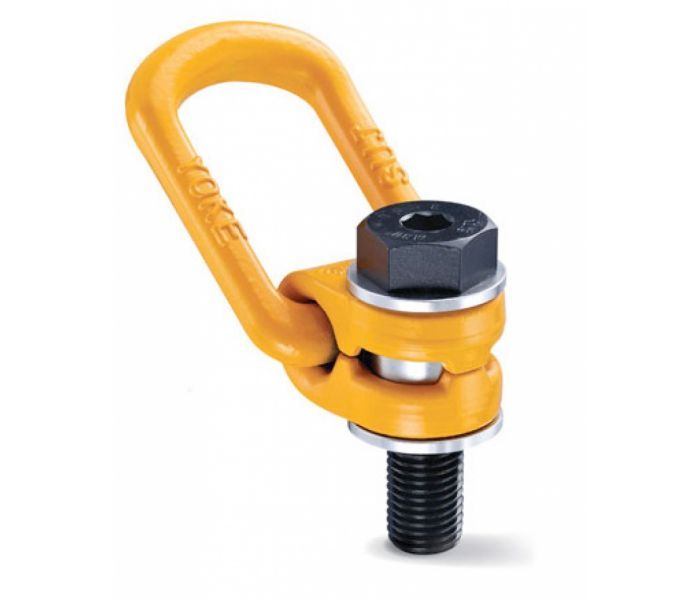

YOKE G10 Swivel Lifting Point/Ring UNC Thread

Product was successfully added to your shopping cart.
key features 1/2" to 2" UNC Threads Perfect for Mold and die handling - Pump and valve handling Ideal for lashing attachment points Suitable for attachment to lifting beams and spreader beams 360° rotation with a 90° degree pivot function
Select Product Options

This product is available to buy online today or can be added to a quotation request. Please fill out the required fields below and select Add to Cart or Add to Quote, depending on what you require. You can add multiple items to your quote if required then simply review and submit your quote.

* Required Fields

Price From:
Price From: £35.50 (Ex VAT) Incl. Tax: £42.60 (Inc VAT)

or

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

  • Grade 100 Lifting Points are 360 deg. rotation with a 90 deg. pivot function
  • Bolts are UNC thread (ASME/ANSI B18.3.1M), specification is a grade
    10.9 alloy socket head screw per DIN EN ISO 4762.
  • Proof Load individually to 2.5 times Working Load Limit and certified
  • Rated at 100% at 90deg angle
  • 100% magnaflux crack detection
  • Long shank bolts available on request

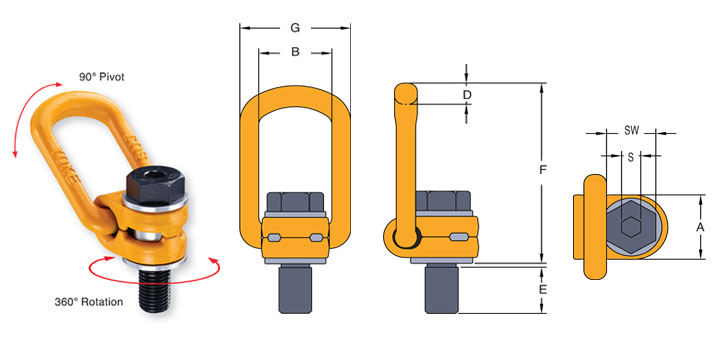

    YOKE G10 Swivel Lifting Point UNC chart



DIMENSIONAL SPECIFICATIONS

Part CodeWLLlbsTorque inFt-lbsBolt SizeBinchEinchAinchGinchDinchFinchSinchSWinchN.W.Kg
8-212-010 2200 73 1/2 - 13 x 2.3

1.46

0.84 1.30 2.24 0.53 3.86 5/16 3/4 0.5
8-212-015 3300 110 5/8 - 11 x 2.5

1.46

1.02 1.30 2.24 0.53 3.86 3/8 15/16 0.5
8-212-020 5500 185 3/4 - 10 x 3.0

2.13

1.29 1.97 3.23 0.65 5.51 1/2 1 1/8 1.3
8-212-025 5500 221 7/8 - 9 x 3.3

2.13

1.47 1.97 3.23 0.65 5.51 5/8 1 5/16 1.3
8-212-040 8800 295 1 - 8 x 3.5

2.13

1.67 1.97 3.23 0.65 5.51 5/8 1 1/2 1.4
8-212-050 11000 368 1 1/4 - 7 x 4.5

2.56

1.93 2.36 3.90 0.89 6.69 7/8 1 7/8 3.1
8-212-080 17000 585 1 1/2 x 6 x 5.5

3.35

2.26 3.03 4.88 1.04 8.86 1 2 1/4 5.8
8-212-150 33000 1107 1 3/4 - 5 x 6.5

4.09

2.69 3.74 6.22 1.42 10.28 1 1/4 2 5/8 10.9
8-212-200 44000 1476 2 - 4.5 x 7

 4.09

3.28 3.74 6.22 1.42 10.28 1 1/2 3 11.6





Number of leg

1 2 1 2 2 2 3-4 3-4
Load Direction  0°  90°  90°  0-45°  45-60°  unsymm.   0-45°  45-60° unsymm.
 8-212-010 1/2"  2200 4400 2200 4400  3080 2200 2200 4620  3300 2200
8-212-015 5/8"  3300  6600 3300  6600 4620 3300 3300 6930  4950 3300
 8-212-020 3/4"  5500 11000  5500  11000  7700 5500  5500 11550  8250 5500
 8-212-025 7/8" 5500 11000 5500  11000  7700 5500 5500 11550 8250 5500
 8-212-040 1" 8800 17600 8800 17600  12320 8800 8800 18480  13200 8800
 8-212-050 1-1/4"  11000  22000 11000 22000  15400 11000  11000  23100  16500 11000
8-212-080 1-1/2"  17000  34000 17000  34000  23800  17000 17000 35700  25500  17600
8-212-150 1-3/4"  33000  66000  33000  66000  46200 33000 33000 69300  49500 33000
8-212-200 2" 44000 88000 44000  88000  61600 44000 44000  92400 66000 44000
