YOKE Grade 8 Key Eye Point - Metric Thread - Yoke - By Brand

In stock
Only %1 left
SKU
20158

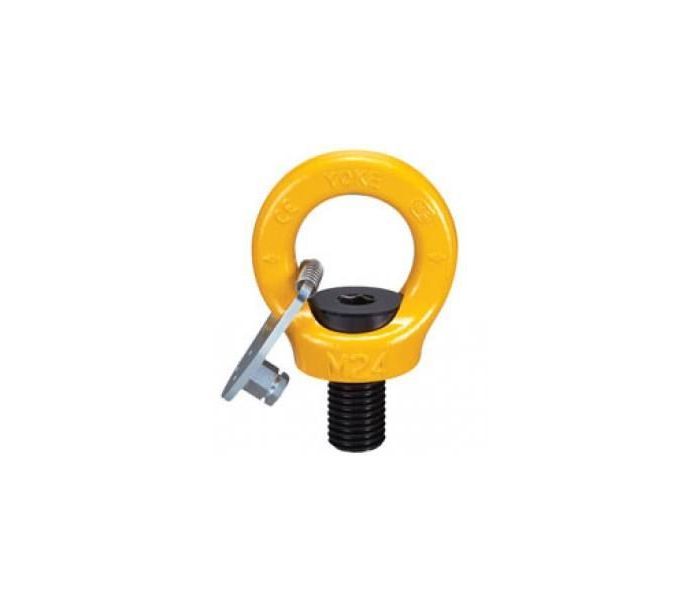

YOKE Grade 8 Key Eye Point - Metric Thread

From ÂŁ21.42 ÂŁ17.85
In stock
Quantity

Key Features

  • M10 to M48 metric threads
  • 21st century successor to the eye bolt
  • Design features make the Key Eye Point resistant to side loading failure and accidental unscrewing
  • Ideal for Pump and valve handling
  • In accordance with EN1677. All forged components are individually magnaflux crack detected after heat treatment,
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

  • Grade 8 forged lifting components are manufactured by YOKE  from alloy steel in accordance with EN1677.
  • All forged components are individually magnaflux crack detected after heat treatment,
  • They are then individually proof load tested to 2.5 times working load limit in accordance with EN1677. Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4.
  • These components are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit.
  • The Key Eye Point has a Design Factor of 4:1 and the Bolt is in a Black Finish.


DIMENSIONAL SPECIFICATION

Part Code

W.L.L. (t)
x    (z)

Bolt Size

ABCDEFWS

Mass Kg

8-291K-004 0.40  (1) M10 x 1.50 x 2036258.5 1115254415  0.1
8-291K-007 0.75  (2) M12 x 1.75 x 28423010 1318335218 0.2
8-291K-015 1.50  (4) M16 x 2.00 x 305135141324356124 0.3
 8-291K-023  2.30  (6) M20 x 2.00 x 30 5740161730447030 0.5
8-291K-032 3.20  (8) M24 x 3.00 x 48 7048192136528436 0.9
8-291K-045 4.50  (12) M30 x 3.50 x 55 86602426456210845  1.7
8-291K-070 7.00  (16) M36 x 4.00 x 64 103722932547813054 2.9
8-291K-090 9.00  (24) M42 x 4.50 x 85 120823438638815063 4.6
 8-291K-120  12.00  (32) M48 x 5.00 x 96 13794384372 104168 72 7.
