CAMLOK CZ " HEAVY DUTY" VERTICAL PLATE CLAMPS WITH LINK / CHAIN
Key Features
- Range from 100 kg to 6,000 kg capacities with link chain
- Jaw capacities 0 - 60 mm
- For transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180'
- The jaw is opened and closed with the locking lever. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load.
- These plate clamps are service-friendly, making it easy to exchange parts, which are readily available.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
CZ " HEAVY DUTY" VERTICAL PLATE CLAMPS WITH LINK / CHAIN
Working load limit (WLL) 1000 - 6,000kgs
These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180'.
They can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long materials which have a tendency to sag or flex.
Function
The jaw is opened and closed with the locking lever. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load.
Workmanship and parts
These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person.
NB: The plate surface of the material must have a hardness level below HRC 30/Brinell 300.

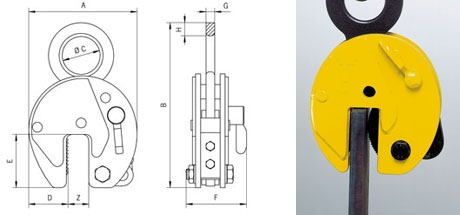

| Model | WLL kg* |
Jaw (Z) capacity mm | A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
Weight kg** |
CZ 1 |
100 - 1000 |
0 - 20 |
140 |
254 |
51 |
48 |
70 |
83 |
13 |
4 |
| CZ 2 | 200 - 2000 | 0 - 32 | 197 | 323 | 67 | 68 | 93 | 110 | 20 | 11 |
| CZ 3 | 300 - 3000 | 0 - 32 | 197 | 371 | 80 | 68 | 93 | 110 | 20 | 12 |
| CZ 3L | 300 - 3000 | 30 - 60 | 228 | 390 | 80 | 68 | 93 | 110 | 20 | 15 |
| CZ4 | 500 - 4000 | 0- 32 | 197 | 371 | 80 | 68 | 93 | 129 | 20 | 12 |
| CZ 4L | 500 - 4000 | 30 - 60 | 228 | 390 | 80 | 68 | 93 | 129 | 20 | 18 |
| CZ 6 | 700 - 6000 | 0 - 50 | 293 | 484 | 89 | 95 | 143 | 129 | 25 | 21 |
| CZ 6L | 700 - 6000 | 50 - 100 | 362 | 524 | 89 | 95 | 143 | 129 | 25 | 28 |
*Per clamp. **Weight per clamp with hook ring. ***Standard length of chain = 4-6 links.
PLEASE NOTE: Units are supplied as standard with a hook ring.up to 20t and Link fitting to 30t are available as a special order.
Also available with ‘Sharp Leg’ body shell or extra thick shell plates for dragging. Please contact sales team for further details and prices.
