C-rail Festoon Cable Remote Pendant Systems - All Hoist Accessories - Hoists - Lifting, Hoisting and Winching

In stock
Only %1 left
SKU
11663

C-rail Festoon Cable Remote Pendant Systems

Price on Request
In stock
Quantity

Key Features

  • Allows operator to control operations outside the danger zone
  • Robustness and Reliability: C-rail C rail systems are generally more durable and reliable than simpler taut wire cable festoon systems.
  • Free-Running Operation: The trolleys running on the C-rail ensure a smooth and free-running power feed, minimizing friction and wear.
  • Smooth Operation: The tapered sides of the track and the design of the trolleys help to minimize dust build-up and ensure smooth operation.
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

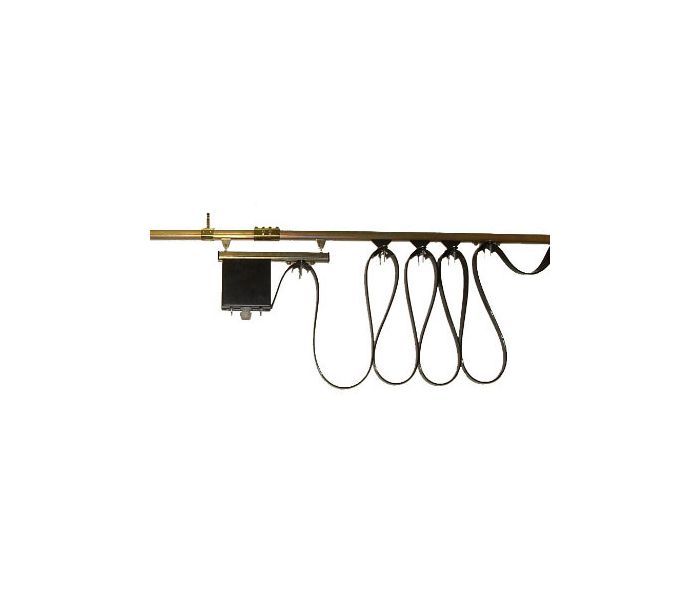

C-rail festoon cable remote pendant system for flat cable, supplied in complete kit form.
Allows safe pendant operation clear of hoist and load.

Supplied in 3m length track (With joints to suit) 1.5m support centres,  I-beam support brackets

Zinc-plated track sections are compact and high quality. Tapered sides reduce the possibility of dust buildup, assuring smooth trolley running.

Add if required - Flat form cable - Fine stranded copper conductor (class 5) IEC 60228 PVC insulated. 450/750V rated. Temperature rating -20 +60°C. Core coding: 4 core colour coded.
Multicores: Black with white numbers/green yellow earth. Outer Sheath: Black

Kit includes:

  • Track, supplied in 3m lengths
  • Track joints (if needed)
  • 750mm adjustable support brackets c/w track clip and girder clamps (one every 1.5m)
  • 1 x end anchor/clamp
  • Flat cable trolleys (one every 1.5m)
  • 1 x trolley-mounted terminal box
  • 1 x track end stop

Cables if required:

  • Select the Length of flat PVC cable 8 core or 12 core, 2.5 mm2 (Don't forget to add for tail and cutting back for connection.
  • Select M32LF 8 core PVC cable gland and lock nut (!2 core cable gland not available).

Technical details:

  • Support brackets clamp around top of I-beam section (305mm max flange width)
  • 10kg maximum weight per trolley
  • 750mm cable loop depth
  • 1.5m between support brackets

Pendant and pendant cable not included, but are available upon request. - Call for information
