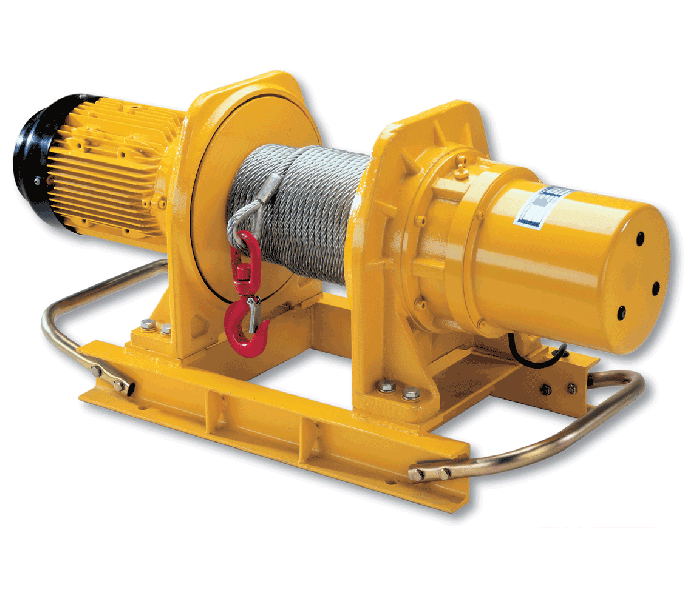

CWG Lifting Winches 5 models - 400 kgs to 600 kgs 240V & 415V

Price on Request
In stock

Key Features

  • Electromagnetic brake - Provides instant, safe braking
  • Complete with wire rope 9mm x 38m galvanised for longer life
  • 2 metre power lead - Pre-wired to the winch with commercial type plug
  • Bi-rotational - can be installed with wire rope coming off the bottom of the drum, or the top
  • Includes skid mounting frame • Low voltage control 24v AC, pre-wired to the winch with 2 button - control and emergency stop
Delivery Options

CWG WINCHES 400-600 kgs
CWG10151 (400 - 480kg) CWG30151 (400 - 600kg)
Rated on 3rd layer of rope
240v x 1ph or 415v x 3ph AC

FEATURES INCLUDE
• Single or 3 phase options -A choice of 240v or 415v across the range
• Electromagnetic brake - Provides instant, safe braking
• Bi-rotational - CWG winches can be installed with wire rope coming off the bottom of the drum, or the top
• Enclosed drum flange - Prevents rope becoming trapped between drum
and support casing
• Includes skid mounting frame
• Low voltage control
24v AC, pre-wired to the winch with 2 button - control and emergency stop
• Complete with wire rope 9mm x 38m galvanised for longer life
• Quiet running - Conforms to noise pollution regulations
• Cast steel foot mounting - For easy installation
• 360º weighted safety hook Swivel type with safety catch
• 2 metre power lead - Pre-wired to the winch with commercial type plug
• Motor to IP54 as standardional extra



CWG SPECIFICATIONS10151a10151b30151a30151b30151c
 Voltage options:                  240v  1ph                                      415v  3ph
 Lifting capacity400kg        480kg400kg600kg600kg
 Weight: Winch only
         Total kit average
                                                              120kg
                                                              148kg
Wire rope: ř x ength
                Construction
                                                        9mm x 42m
  7  x 18 wire core 1960N/mm2 grade.  Minimum factor of safety 5:1
  Motor type:                                                    Induction motor
 Outputs: Kilowatts
                 Amperes
2.2kw        1.5kw2.2kw1.5kw1.5kw
14.5amp      10.6amp4.6amp3.5amp2.9amp
 Braking:                                  Electromagnetic spring applied failsafe
 Drum & flange dimensions:                             240mm length, drum ř = 140mm, flange ř = 280mm
                                               Rope ř to mean drum ř ratio:16.5:1


LINE PULL AND LINE SPEED PERFORMANCES - WINCHES ARE LOAD RATED ON THIRD LAYER

CWG10151a 240v x 1ph  LAYERS
12345
Maximum Rated Line Pull by LayerkN kgf4.9 5004.5 4543.9 4003.6 3723.5 360
CWG10151a Rope Capacity
Cumulative by Layer
(9mm Dia. Wire Rope)
m13.227.34257.573.6
Line Speed*m/min2225.32830.334
CWG10151b 240v x 1ph  LAYERS
12345
Maximum Rated Line Pull by LayerkN kgf5.9 6005.2 5304.7 4804.3 4353.9 400
CWG10151b  Rope Capacity
Cumulative by layer
(9mm Dia.Wire Rope)
m13.227.34257.573.6
Line Speed*m/min11.512.81415.817.3

CWG30151 Series
415v x 3ph

 LAYERS 30151a

 LAYERS 30151b

 LAYERS 30151c
123451234512345
Maximum Rated Line Pull by LayerkN kgf4.9 5004.4 4503.9 4003.4 3502.9 3007.4 7406.5 6615.9 6005.3 5444.9 5007.4 7406.5 6615.9 6005.3 5444.9 500
CWG30151 Rope Capacity
Cumulative by Layer
(9mm Dia. Wire Rope)
m13.227.34257.573.613.227.34257.573.613.227.34257.573.6
Line Speed*m/min24273033.636.811.612.814.315.817.37.88.79.610.511.5
* Based on recommended 9mm diameter wire rope, 1960N/mm2 grade, 7 x 18 wire core construction

SELECTING A WINCH - THINGS TO CONSIDER
The mass in kg of the loads compared to the load rating of the winch
• Wire rope length, diameter and the line speed
• Frequency of use
• Life expectancy of machinery
• Compatibility with application
• Type of power likely to be available on sites and access / suitable areas
• Health & Safety Regulations and suitable training - Winches can be dangerous. Installations should be carried out by a professional with regard to electrical and mechanical safety requirements.It is usually advisable to over specify the capacity of a winch to ensure extended product life.

EN 14492-1 SAFETY REQUIREMENTS INCLUDE:
• Ropes for pulling or dragging require a minimum of 5:1 factor of safety between rated load and minimum braking load of the wire rope - and a 15:1 factor of safety between rope and drum diameters.
• It should not be possible for the wire rope to run off the side of the drum.
• The rope winding on the drum shall remain a minimum of 11/2 times the rope diameter from the outer periphery of the drum flange.
• A minimum of 7 wraps of rope must be retained on the drum to secure rope anchorage.

*EN 14492-1 is a legally binding EU Health & Safety requirement. This is the joint responsibility of the supplier, the installer and the company operating the product.

buy on line now or for further information please contact our sales team.

Write Your Own Review
You're reviewing:CWG Lifting Winches 5 models - 400 kgs to 600 kgs 240V & 415V
