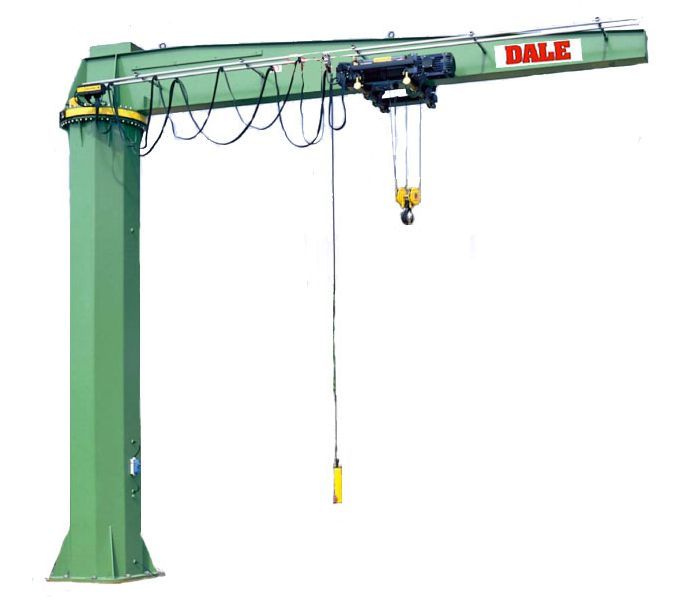

key features Available in 4 capacities - 5,00, 6.30, 8.00 and 10,00 tonnes Free standing jib cranes 360-degree continuous rotation Arm length up to 10.5 metres Donati jib cranes are designed and manufactured according to the ISO A5 classification. Electric hoist available in 400V 3phz 50 Hz
Select Product Options

This product is available by quotation only. Please fill out the required fields below and add product to your quote. You can add multiple items to your quote if required then simply review and submit your quote. Alternatively please call our sales team on 0161 223 1990 for prices.

Maximum number of characters: 500

Maximum number of characters: 500

Maximum number of characters: 500

* Required Fields

Download Product SpecificationClick here

Delivery Information / Postcode Checker

All of our buy online "Add to Cart" products are shipped via our Standard Delivery method to, most UK postcodes. Usually completed with 2/3 working days, longer for pre-order, made to order products or If time critical, please request a quotation.

If you are within the UK, please use our postcode checker below to see if your delivery cost can be calculated online.

Details

Download Product Specification  Click here

Tip: Select model from chart below - include your hoist , if required, base fixings (See chart below) and any other options for easy 'Get A Quote' entry


Model features:
1000 to 10000  kgs capacity
Free standing jib cranes 360-degree continuous rotation


Suitable for use with standard hoists.
Painted with a base and top coat of yellow enamel, subject to preparation of the surfaces by metallic sandblasting. The drying in a oven concludes the cycle.


Jibs can be supplied with the following options:

  • Donati 400V 3ph 50Hz electric wire rope hoist with single or dual speed and low voltage pendant.
  • Special reach and height
  • 400v 3ph. 50 Hz Electric feed system with festooned cables and main/off switch on the column
  • Foundation bolts and template or by the addition of an extended counter plate which can be used with chemical anchor fixings in suitable existing concrete floor.
  • Outdoor use
  • Special paint finish e.g. Off-shore use
  • Installation - Subject to location
    Contact our sales team for advice on 0161 223 1990

The Donati jib cranes are designed and manufactured according to the ISO A5 classification.

Full specification in Donati jib crane catalogue - Download PDF

Installation and maintenance instructions are provided.

5,000kg Jib Crane Specifications
Model Lifting Capacity Arm Under Beam (h) Speed of Arm Motor Power kw Tilting Mome- ntum
(kNm)
Max. fall on the logbolt (kN) Weight
Nominal Length (S) Size of jib Crane no of revs (rpm) peri- pheric m/min Crane Column by m
kg m mm kg kg
3L4040 5000kg 4 3 4000 0.91 22.9 0.37 253 126 1705 176.5
4L4540 4.5 4 4000 0.77 21.7 0.55 291 183 2105 219.7
4L5040 5 4 4000 0.77 24.1 0.55 328 183 2150 219.7
5L5540 5.5 5 4000 0.66 22.7 0.55 365 183 2415 183.6
5L6040 6 5 4000 0.66 24.8 0.55 405 183 2560 183.6
5L6540 6.5 5 4000 0.53 21.5 0.55 446 183 2850 229
5L7040 7 5 4000 0.53 23.1 0.55 485 183 2910 229
5L7540 7.5 5 4000 0.53 24.8 0.55 525 183 2980 229
5L8040 8 5 4000 0.53 26.5 0.55 567 183 3360 274
5L8540 8.5 5 4000 0.36 19.3 0.75 608 183 3715 341.6
5L9040 9 5 4000 0.36 20.4 0.75 649 183 3785 341.6
6L9540 9.5 6 4000 0.41 24.4 0.75 691 183 4025 311.5
6L1040 10 6 4000 0.33 20.6 0.75 733 183 4110 311.5
6L1540 10.5 6 4000 0.33 21.6 0.75 777 183 4180 311.5



6,300 kg Jib Crane Specifications
Model Lifting Capacity Arm
Under Beam (h)
Speed of Arm Motor Power kw Tilting Mome- ntum
(kNm)
Max. fall on the logbolt (kN) Weight
Nominal Length (S) Size of jib Crane no of revs (rpm) peri- pheric m/min Crane Column by m
kg m mm kg kg
4M4040 6300kg 4 4 4000 0.96 24.1 0.55 327 183 2050 219.7
5M4540 4.5 5 4000 0.98 27.7 0.55 376 183 2250 183.6
5M5040 5 5 4000 0.78 24.6 0.55 425 183 2340 183.6
5M5540 5.5 5 4000 0.66 22.7 0.75 475 183 2470 183.6
5M6040 6 5 4000 0.66 24.8 0.75 526 183 2740 229
5M6540 6.5 5 4000 0.53 21.5 0.75 577 183 3045 274
5M7040 7 5 4000 0.53 23.1 0.75 630 183 3425 341.6
6M7540 7.5 6 4000 0.48 22.5 0.75 682 183 3675 311.5
6M8040 8 6 4000 0.48 24 0.75 736 183 3820 311.5
6M8540 8.5 6 4000 0.48 25.5 0.75 788 183 3910 311.

8,000 kg Jib Crane Specifications
Model Lifting Capacity Arm Under Beam (h) Speed of Arm Motor Power kw Tilting Mome- ntum
(kNm)
Max. fall on the logbolt (kN) Weight
Nominal Length (S) Size of jib Crane no of revs (rpm) peri- pheric m/min Crane Column by m
kg m mm kg kg
5N4040 8000kg 4 5 4000 0.88 22.1 1.5 401 183 2365 183.6
5N4540 4.5 5 4000 0.88 24.9 1.5 461 183 2425 183.6
5N5040 5 5 4000 0.7 22.1 1.5 522 183 2725 229
5N5540 5.5 5 4000 0.59 20.4 1.5 583 183 3130 274
5N6040 6 5 4000 0.59 22.3 1.5 644 183 3470 341.6
6N6540 6.5 6 4000 0.54 21.9 1.5 705 183 3670 311



10,000 kg Jib Crane Specifications
Model Lifting Capacity Arm Under Beam (h) Speed of Arm Motor Power kw Tilting Mome- ntum
(kNm)
Max. fall on the logbolt (kN) Weight
Nominal Length (S) Size of jib Crane no of revs (rpm) peri- pheric m/min Crane Column by m
kg m mm kg kg
5O4040 10,000kg 4 5 4000 0.88 22.2 1.5 487 183 2750 229
5O4540 4.5 5 4000 0.88 25 1.5 560 183 2985 274
5O5040 5 5 4000 0.74 23.2 1.5 633 183 3060 274
6O5540 5.5 6 4000 0.67 23.1 1.5 707 183 3540 311.5



Size of Jib Crane 2 3 4 5 6
Base plate and foundation frame (mm) C 750 860 910 1100 1220
 S1 20 25 30 35 40
 S2  10 10 10 10 10
 x 199 230 241 185 215
 y 281 325 341 320 350
Ø1 27 33 39 39 39
Ø2 25 31 37 37 37
 r 150 170 180 220 240
 Anchorage bolts (mm) ØT M24 x 3 M30 x 3.5 M36 x 4 M36 x 4 M36 x 4
 LT 600 700 800 800 800
 ST 90 105 125 130 135
Clamping couples for the logbolts (Nm)   350 680 1200 1200 1200
Weight of the frame with logbolts (kg)   34.5 52.5 80 113 120
 Foundation plinth (mm)  L 2500 3000 3200 4000 4200
 H 1150 1300 1300 1300 1300
 Jib crane max. weight (without hoist and trolley)  Q1  1540 2520 2870 3785 4180
Maximum tilting momentum (kNm)  Mf 179 270 335 649 788
