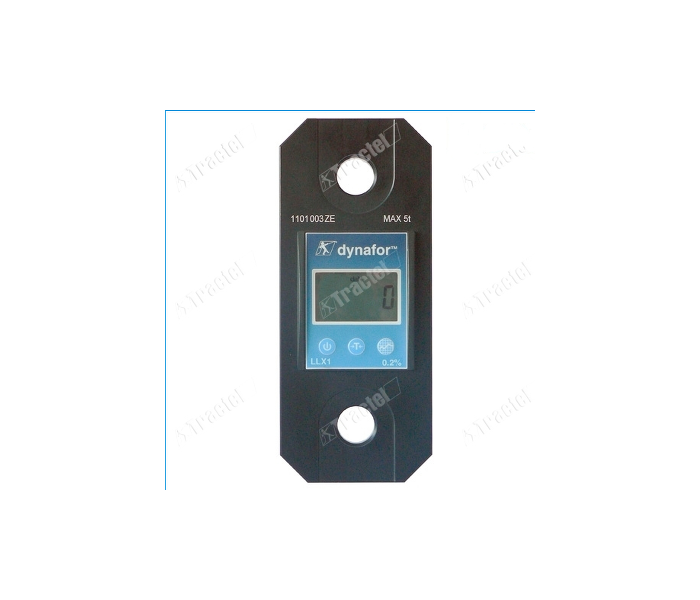

Dynafor LLX1 Mid - Range Load Indicator With Optional Wireless Display

Key Features

  • Available models from 500 kg to 20 t.
  • Accuracy : +/- 0,2 %
  • Option: mobile display using the Zigbee technology (2.4 GHz)
Delivery Options

The Dynafor™ LLX1 devices are electronic load indicators to measure tensile forces (N) and to determine hanging loads (kg).

Accuracy : +/- 0,2 %
Available models from 500 kg to 20 t.

Option: mobile display using the Zigbee technology (2.4 GHz)

The dynafor™ LLX1 dynamometers are precision force sensors used to measure forces and indicate loads.

The shape of the dynamometers enables the use of standard shackles on both ends. The dynamometers of this range function in all positions for the measurement of force and suspended for weighing purpose.

Operating Principle Strain gauge measurement of the extension, within its limits of elasticity, of a metal body, subjected to traction stress. The sensor generates an electrical signal that is proportional to the load. This signal is processed by a microprocessor analyser and then displayed on a build in LCD display.

Technical Specifications

  • Capacities from 0,5 t up to 20 t
  • Precision: 0,2 % of full scale.
  • Safety coefficient: minimum 4
  • Power supply : 3 batteries 1,5 V "AA" or 3 rechargeable batteries 1,2 V "AA"
  • Packaging: plastic carrying case
  • Protection: IP 65 ( NEMA 4)

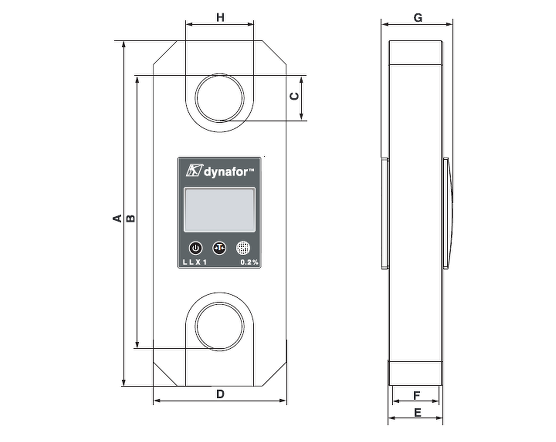

LLX1 Key dimensions

MODEL

LLX1

0.5 t

LLX1

1 t

LLX1

2 t

LLX1

3.2 t

LLX1

5 t

LLX1

6.3 t

LLX1

12.5 t

LLX1

20 t

Maximum capacity

t

0.5

1

2

3.2

5

6.3

12.5

20

Test load

t

0.75

1.5

3

4.8

7,5

9.6

18.75

30

Safety coefficient



Minimum 4



Precision



0.2 % FS

±

daN

1

2

4

6

10

13

25

40

Increment

daN

0.2

0.5

1

1

2

2

5

10

Max. Display

daN

110 % maximum capacity

Number height

mm

18

Autonomy



450 h (Batteries 1.5 V “AA ”)

Weight

kg

1.1

1.1

1.3

1.5

2.3

2.3

4.3

7

IP Protection



I.P. 65

Usafe



From - 20° to 40°C

Sensitivity to T°



0.05% per 10°C

Sensor material



Aluminium







Dimensions mm

A

220

220

233

243

275

275

343

371

B

196

196

207

207

217

217

257

269

C

14

14

22

22

28

28

42

54

D

90

90

100

100

115

115

125

134

E

32

32

32

32

32

32

51

67

F

16

16

24

24

29

29

48

64

G

47.5

47.5

47.5

47.5

47.5

47.5

66.5

67

H

45

45

50

50

57

57

62

66

Radio option

RF technology: Zigbee 2.4 GHz

Range : 40 m in free field, see details in operation manual
