Fixed Length Spreader Beam Type DFS - 2t to 20t upto 6 metres spread - Metal Industries - By Industry

In stock
Only %1 left
SKU
250379

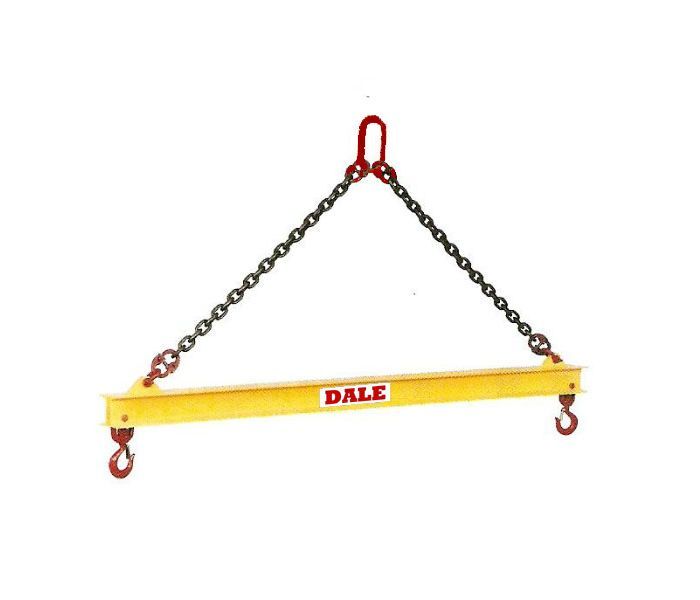

Fixed Length Spreader Beam Type DFS - 2t to 20t upto 6 metres spread

Price on Request
In stock
Quantity

Key Features

  • Flexible connection points allow for standard chain or wire rope two leg sling.
  • The use of COG adjustment grab hooks (Chain option only) allows for off-centre load adjustment).
  • Fitted with swivel safety latch hooks as standard.
  • Delivered with user's instructions and EC certificate of compliance
  • For alternative capacities and dimensions - contact us.
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

DFS Fixed Spreader Beam Applications
Lifting of various loads up to 20 tonnes in spans from 1200 to 6 metres

Description

DFS  Fixed Spreader Beam is designed to use when headroom is not limited.  Adds stability to the lifting operations.

  • Flexible connection points allow for standard chain or wire rope two leg sling.
  • The use of COG adjustment grab hooks (Chain option only) allows for off-centre load adjustment).
  • Available from 2, 000 kg  to 20,000 kg
  • 1200mm to 6 metre spread.
  • Bottom suspension points fitted with swivel safety latch hooks as standard.
  • Delivered with user's instructions and EC certificate of compliance
  • For alternative capacities and dimensions - contact us.



Top sling:options

  • C - with Chain Top Chain Sling
  • CS - with Chain Top Chain Sling with COG adjustment
  • W - with Wire Rope Top Sling

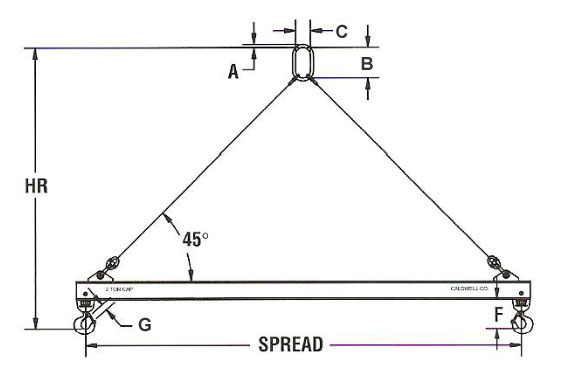

All dimensions are approximate
Capacity
WLL
kg
Headroom
-
Weight
(Excl. Top sling)
Span mm
1200 1800 2400 3000 3600 4800 6000 A
mm
B
mm
C
mm
F
mm
G
mm
2,000 Headroom mm 864 1168 1422 1778 2083 2692 3353
16

110

60

108

23

Weight kg
20.45 27.3 37.3 43.2 52.3 102.2 185.5
5,000 Headroom mm 939 1245 1549 1854 448 2794 3404
23

160

90

152

29
Weight kg 28.2 35.45 45.5 53.2 76.4 138.6 197.7
10,000 Headroom mm 1041 1346 1626 1956 2184 330 3505
33

200

110

206

39
Weight kg 45.45 55.45 70.91 81.82 109 173 242
15,000 Headroom mm 1092 1422 1632 2032 2337 2946 3500
36

260

140

235

43
Weight kg 57.3 70.45 84.1 110 122.7 191 303.3
20,000 Headroom mm 1168 1473 1753 2083 2388 2997 3556 45 305 152 346 51

Weight kg

77.3 91 115 143.2 159 246 352
