GIS GP Series NEW Electric Chain Hoist 3 Phase 400 V / 50 Hz, - Electric Hoists - Hoists - Lifting, Hoisting and Winching
GIS GP Series NEW Electric Chain Hoist 3 Phase 400 V / 50 Hz,
Key Features
- Lifting capacity up to 2500 kg
- Reliable and long-lasting - 3 year warranty
- Chain safety factor minimum 8-times (1-fall in FEM, 2m, ISO, M5)
- Easy to operate - 60 % higher lifting capacity
- Protection class IP65 as standard
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
GIS GP Series NEW Electric Chain Hoist 3 Phase 400 V / 50 Hz,;
GPM250, GP250 - 1000, up to 2500 kg
General information
Electric chain hoists GPM250 and GP250/500/1000
The GP is simple in its structure and does not contain any sensitive electronics, which minimises the risk of operational interruptions. It is characterised by quiet running and is made for longevity whilst working hard. The ergonomic control switch with 42 V low voltage allows convenient and safe working. Maintenance is easy, quick and needs no special tools.
Scope of supply
- Electric chain hoist with eyebolt suspension,
- Geared limit switch for highest and lowest hook position,
- Chain bucket,
- 2-button control switch with emergency-stop,
- standard lifting height 3 m,
- Control cable length 1.8 m
- Reliable and long-lasting
- 3-year warranty
- Chain safety factor minimum 8-times (1-fall in FEM, 2m, ISO, M5)
- Protection class IP65 as standard
- Easy to operate
- 60 % higher lifting capacity
- Quiet running with 3-step drive and helical gearing
- Polygonal connections
- Manual and electric travel
For more details including travel options, please download brochure PDF
Customer specific
- Three- or single-phase version
- Direct control, special control, radio remote control, frequency inverter
- Special versions such as synchronized electric chain hoist, low headroom version, corrosion resistant version, ATEX
Technical specifications
Standard version
- Load capacity: maximum 2500 kg (2-falls, FEM 1 Am, ISO M4)
- Standard voltages:
3 × 400 V / 50 Hz, - 42 V low voltage control
- 1 phase motor: 1 speed
- 3 phase motor: 1 or 2 speeds
- Protection class IP65
- Eyebolt suspension
- Standard lifting height 3 m
- Minimum 8-fold chain safety factor (1 fall, FEM 2m, ISO M5)
- Control cable length 1.8 m
- Ergonomic control switch with emergency-stop
- Control switch with external strain relief
- Geared limit switches for highest and lowest hook position (3 ph.)
- Isolation class F (motor)
- DC spring-loaded brake
- Slipping clutch adjustable and not in the flow of forces

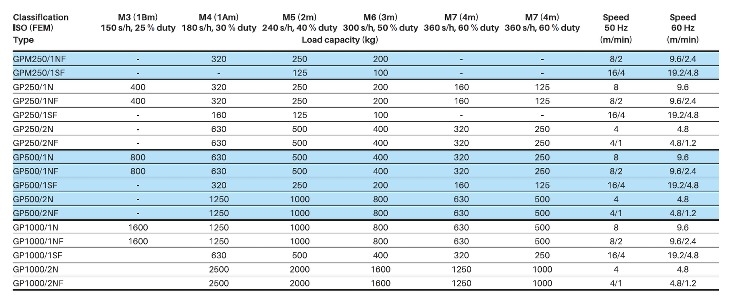

Hoist Models (Select duty rating required for your quote - Hoist will be badged with rated capacity chosen)
Accessories and options (Add to special requirements)
- Direct control, special control
- Radio remote control
- Frequency inverter
- Other operating voltages on request
- Other control voltages on request
- Other speeds available on request
- Single handed operation with controls on the handle
- Hook suspension
- Safety load locking hook
- Geared limit switch with two additional emergency stops
- External limit switch / multiple limit switches
- Parallel connection of multiple chain hoists
- Operating data counter
- Press-on and press-off control switch
- Temperature monitoring to prevent the motor from overheating
- Manual brake release / Second brake
- Chain container for various lifting heights
- Gear grease for low-temperature use/food industry
- Tropicalised insulation
- Slack chain shutdown
