Hackett ATEX-C4 Hand Chain Hoist 500 kg to 5 t. (Full range)
Key Features
- WORKING LOAD LIMIT RANGE: 500 kg to 5 tonnes.
- LIGHT LOAD CAPABILITY: the ATEX C4 d hand chain hoist is tested and certified at 2% of the chain hoist rated capacity.
- TWIN PAWL: ATEX C4 - SAFETY LATCHES - OVERLOAD INDICATOR MARKS - fitted as standard.
- COPPER PLATED PARTS: include top and bottom hook assemblies, chain end anchor, chain stripper, roller guides and handwheel.
- CORROSION PROTECTED: specific internal components are corrosion protected - OVERLOAD LIMITER: available as an option upon request.
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

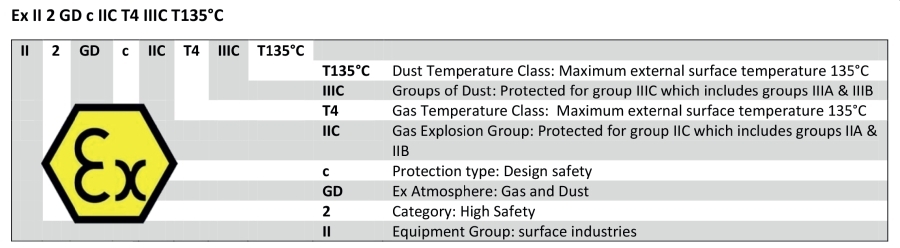

The William Hackett ATEX-C4 chain hoist complies with the requirements of ATEX Directive 2014 / 34 / EU and Machinery Directive 2006 / 42 / EC
The ATEX-C4 chain hoist meets and exceeds the requirements of the following international standards:
British Standard BS EN13157:2004 + AI:2009
American Standard ASME B30.16-2012
Australian Standard AS1418.2-1997
South African Standard SANS 1594:2007
NORSOK R-002: 2017.
The William Hackett ATEX-C4 chain hoist is manufactured in accordance with EN13157 which requires that it can be used within an operating temperature range of -40°C to +55°C.
The design and specification of the William Hackett ATEX-C4 chain hoist include:
- LIGHT LOAD CAPABILITY: the ATEX-C4 chain hoist is tested and certified at 2% of the chain hoist rated capacity
- SAFETY LATCHES: the ATEX C4 chain hoist top and bottom hooks are fitted with heavy-duty cast steel latches. The latch and hook tip are integrated creating a strong and robust hook closure
- OVERLOAD INDICATOR MARKS: the ATEX-C4 chain hoist top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat. By measuring the distance between the indicator marks, the hook can be quickly and easily checked to see if any stretch has occurred due to misuse or overloading
- CORROSION PROTECTED: specific internal components are corrosion protected
- COPPER PLATED PARTS: include top and bottom hook assemblies, chain-end anchor, chain stripper, roller guides and handwheel
- HAND CHAIN: fitted with Grade 316L stainless steel hand chain
- LOAD CHAIN: supplied with EN818-7 zinc plated load chain as standard with an option for stainless steel Grade 6 load chain upon request
- BODY COVERS: epoxy powder coated
- HOOK HOUSING: the ATEX-C4 chain hoist top and bottom hook housing is secured with socket head cap screws/hex head bolts and nyloc insert locking nuts
- FLEETING/CROSS HAULING: the ATEX C4 chain hoist is tested and certified for fleeting or cross hauling applications up to 45° from the vertical without deration
- WLL RANGE: 500 Kg to 5 tonne
- TWIN PAWL: double safety; fitted as standard
- OVERLOAD LIMITER: available as an option upon request
Other sizes available upon request
Specifications
| Part Code |
WLL |
No. of Falls |
Load Chain |
Hand Chain |
Standard Lift |
a |
b |
e |
f |
g |
h |
Mass |
Extra |
| 022.ATEX.050 | 0.50 | 1 | 5 x 15 | 5 x 25 | 3 | 125 | 130 | 27.5 | 32 | 37 | 280 | 8.10 | 1.38 |
| 022.ATEX.100 | 1.00 | 1 | 6 x 18 | 5 x 25 | 3 | 134 | 155 | 31.5 | 40 | 44 | 306 | 11.50 | 1.62 |
| 022.ATEX.200 | 2.00 | 1 | 8 x 24 | 5 x 25 | 3 | 157 | 185 | 36.5 | 46 | 52 | 445 | 16.80 | 2.23 |
| 022.ATEX.32D00 | 3.20 | 2 | 8 x 24 | 5 x 25 | 3 | 157 | 235 | 42.5 | 52 | 62 | 520 | 24.20 | 3.62 |
| 022.ATEX.500 | 5.00 | 2 | 10 x 30 | 5 x 25 | 3 | 180 | 262 | 51.0 | 60 | 77 | 600 | 39.80 | 5.18 |
