Pfaff SW-K LAMBDA Safety Hand Winch - Manual Drum Winches - Winches - Lifting, Hoisting and Winching

In stock
Only %1 left
SKU
5047

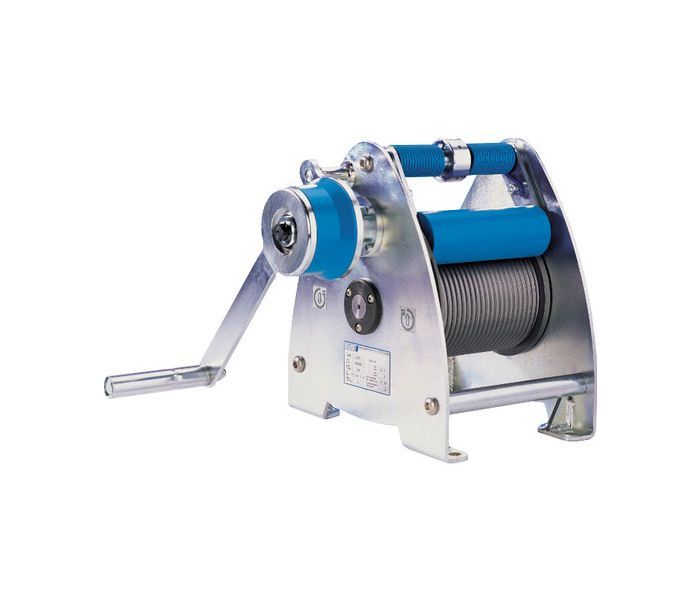

Pfaff SW-K LAMBDA Safety Hand Winch

From £1,571.84 £1,309.87
In stock
Quantity

Key Features

  • 300 kg capacity in 2 rope capacities
  • ideal for use wherever heavy objects weighing up to 300 kg have to be safely moved above peoples’ heads
  • A double-acting safety retaining spring reliably holds the load in every position
  • It is driven by a single-stage, spur toothed pair of internal geared wheels
  • Grooved drum. - Spring loading rope pressure drum for improved one layer rope coiling.
Delivery Options

Pfaff Lambda wire rope winches BGV C1 with a lifting capacity of 300kg. TO BGV C1 (VBG70) SAFETY STANDARD

Strong, durable winch designed especially for safely moving loads o people. Conforms to German Safety Standard BGV C1 and is ideal for use in theatres, studios and warehouses.ver

Full dimensions in PDF download

The Pfaff-Silberblau console-mounted wire rope winch LAMBDA has a grand entrance when used as drum winch in studios and theatres, fashion and warehouses – ideal for use wherever heavy objects weighing up to 300 kg have to be safely moved above peoples’ heads. A double-acting safety retaining spring reliably holds the load in every position. It is driven by a single-stage, spur toothed pair of internally geared wheels. This corresponds to the newest rules for prevention of accidents BGV C1 (DIN 56925) as well as the prototype- and safety-test (GS-test – tested safety) of the committee for lifting equipment.

Features Include:

·         Grooved drum.
·         Spring loading rope pressure drum for improved one layer rope coiling.
·         Safety spring double brake system automatically holds the load.
·         Optional extras include wall bracket, multiple cable grooved drum.

Winch Specifications

Art.-No. Capacity


kg
Rope diameter*

mm
Useable rope length 1st layer
m
Lift per crank rotation mm Required crank effort

daN
Ratio Weight without rope kg
030272015 300 6 10 50 18 8.83:1 30
030272017 300 6 15 50 18 8.83:1 36
* Recommended wire rope: DIN 3060 FE-znk 1770 sZ-spa * Ropes sold separately
