STRAIGHTPOINT 60kN WIRELESS IMPACT BLOCK LOADCELL - Wire Rope Pulleys, Divertor & Snatch Blocks - Lifting, Hoisting and Winching

In stock
SKU
2789150

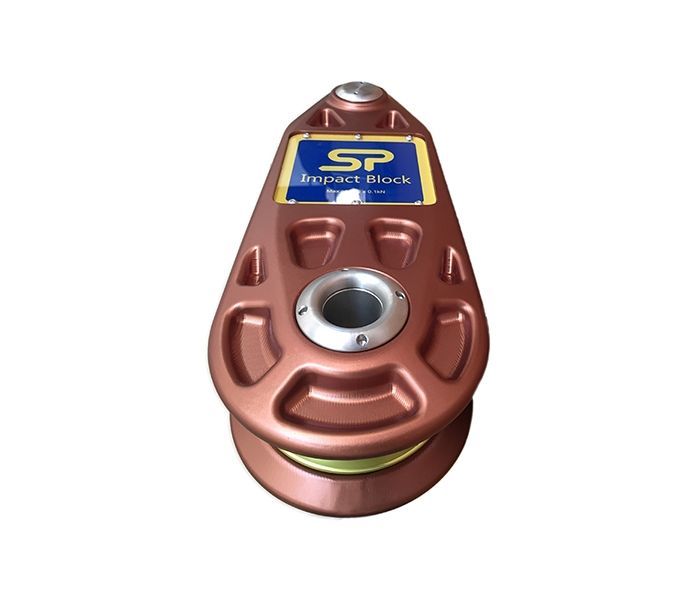

STRAIGHTPOINT 60kN WIRELESS IMPACT BLOCK LOADCELL

In stock
Quantity

Key Features

  • 700m or 2300ft wireless range enabling
  • Massive battery life of 1200 hours operational time
  • Handheld display or data logging software options for all applications
  • High waterproof resistance to IP67/NEMA6 for all weather use
  • Bluetooth option is available by request and is supplied with a free HHP App for iOS and Android
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

Arborist Load Cell - Impact Block

The safest choice for the working Arborist. Manufactured in partnership with DMM, the Impact Block has been designed to deliver the best performance in terms of alignment, resistance, and appeal. The aesthetic curves of the Impact Block combine beauty, strength, and durability to ensure a rope friendly surface.

Coupled with wireless dynamic load monitoring electronics and strain gauge technology from Straightpoint and providing real-time data to either handheld controller or logging via our SW MWLC software to tablet or laptop, it is easy to see why this is one of the most sought-after products in the industry. During development, the Straightpoint Impact Block has gone through a thorough dynamic and static validation testing regime. The end result is a highly functional product with an impressive strength to weight ratio.

The end result is a highly functional product with an impressive strength to weight ratio

  Part Number                                                              WIB6T

Capacity

60kN

Resolution

0.1kN

Units

kN

Weight

6kg

13.2lb

Safety Factor

5:1

Battery Type

4 x AA Alkaline

Battery Life

1,200 hours continuous

Operating Temp

-10°C to +50°C / 14°F to 122°F

Accuracy

±0.3% of applied load

Frequency

2.4 GHz

System Range

700 metres / 2300 feet

Data Rate

50Hz - up to 200Hz can be ordered for dynamic load monitoring applications

Protection

IP67 / NEMA 6

Max Rope Ø

20mm

0.75”

Dimension A

348

13.7”

Dimension B

89

3.5”

Dimension C

131

5.16”

Dimension D

242

9.53”

Dimension ØE

27

1.06”

FEATURES AND BENEFITS

  • Rounded edges to cheek plates maintain low rope abrasion when rope is fed ‘unfair’
  • Upper sheave opens via a threaded locking axle for added security
  • Thrust surfaces increase tolerance to external loading of spindle and anchor pin
  • Lightweight attachment sling facilitates hauling of block, sling, and rope to the climber and helps with handling, in tree stowage and workshop storage
  • Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility
  • 700m or 2300ft wireless range enabling operator to stand at a safe distance
  • No easily broken external antennae
  • High waterproof resistance to IP67/NEMA6 for all weather use
  • Massive battery life of 1200 hours operational time
  • Handheld display or data logging software options for all applications~

APPLICATIONS
  • Tree care – dismantling ops and speed lines
  • Forestry
  • Winching operations
  • Rescue
  • Rigging
  • Entertainment industry

SUPPLIED WITH THE FOLLOWING AS STANDARD
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • RFID Tagged
