STRAIGHTPOINT COLT ( Clamp On Line Tensionmeter ) - 5000Kg - Straightpoint - By Brand
STRAIGHTPOINT COLT ( Clamp On Line Tensionmeter ) - 5000Kg
Key Features
- Unlimited wire rope calibration database via Android or iOS app / Wireless Bluetooth enabling operator to stand at safe distance if needed / No easily broken external antennae
- Main swivel joints fitted with high quality bearings / High waterproof resistant design for all weather use
- Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes
- Quick intuitive adjustable centre sheave makes changing wire rope sizes fast and easy
- Massive battery life of 1000 hours operational time
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions
Clamp-On Line Tensionmeter - COLT Guy wire, steel wire, rope tension meter

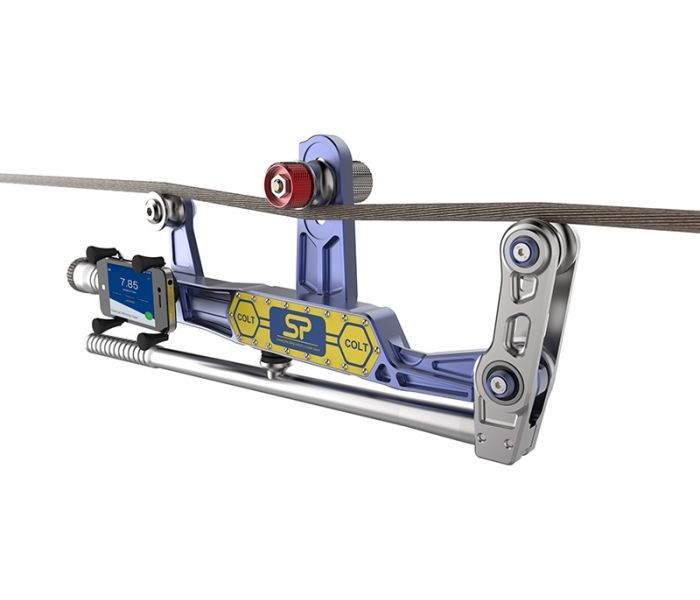

The Straightpoint COLT is a lightweight guy wire, steel wire, rope tension meter for fast and accurate measurement of tensions up to 11,000lbf/5000 kgf and up to 1”/25mm diameter. Manufactured using an integral, high accuracy, Bluetooth module the COLT transmits load data wirelessly to any smart device running our Android or iOS app.
- Unlimited wire rope calibration database via Android or iOS app
- Main swivel joints fitted with high-quality bearings
- Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes
- Wireless Bluetooth enabling the operator to stand at a safe distance if needed
- Quick intuitive adjustable centre sheave makes changing wire rope sizes fast and easy
- No easily broken external antennae
- High waterproof resistant design for all weather use
- Massive battery life of 1000 hours operational time
- As the library of wire rope diameters and constructions is increased each app user will benefit when they update and receive any new data
Statimeter dynarope tension wire measure for rigging towers, guy wires, overhead lines, zip lines, elevator hoists, guard rails or architectural cables or any wire tension to ensure safety and correct operation.
Constructed from aerospace grade aluminium the COLT digital tensiometer is lightweight and easy to handle and operates on wires that are already under tension. Once in place, it allows the operator to quickly check the tension on cables or wire ropes set at any angle. A built-in smart device holder allows the COLT to be used as a traditional tension meter with the onboard display or the smartphone may be handheld or mounted elsewhere.
Supplied in a purpose made carry case the COLT is portable and utilises standard alkaline batteries making this perfect for on-site cable tension measurement across the world.
|
Part Number COLT5T |
|
|
Max Load |
5000kg |
|
11000lbs |
|
|
Resolution |
10kg |
|
20lb |
|
|
Units |
kg, lbs, tonne and kN |
|
Min Wire Rope Ø |
Ø5mm |
|
Ø3/16” |
|
|
Max Wire Rope Ø |
Ø25mm |
|
Ø1” |
|
|
Max Line Reduction |
5mm with a Ø10mm wire rope |
|
7/32“ with a Ø3/8” wire rope |
|
|
Wire Rope Database |
Infinite via Android 4.4 or iOS 8.0 app |
|
Weight |
3.5kg |
|
7.7lbs |
|
|
Battery Type |
2 x ‘C’ cell batteries |
|
Battery Life |
1000 hours Bluetooth transmission time |
|
Operating Temp. |
-25°C to +70°C |
|
-13°F to +158°F |
|
|
Protection |
IP67 |
|
NEMA 6 |
|
|
Accuracy |
± 3% of full scale if wire rope Ø and construction known |
|
Communication |
Bluetooth 4.1 |
|
Dimension A |
589mm |
|
23.2” |
|
|
Dimension B |
254mm |
|
10” |
|
|
Dimension C |
200mm |
|
7.9” |
|
|
Dimension D |
200mm |
|
7.9” |
|
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Case
APPLICATIONS
- Guy wire maintenance on cell towers, bridges, stacks, antennas & masts.
- Guy Tension & Tower Alignment
- Guy Tower Plumb & Tension
- Testing for plumb and tension on cell towers
- Guyed tower installation tips
- Guyed tower deployment
- EHS guy wire, Turnbuckle tensioner.
- Wire rope installations, comparing, equalizing & measuring
- Median cable barrier tensioning
- Utility cable overhead line monitoring
- Elevator hoist, governor & compensating wire rope maintenance
- Zip lines & assault course testing
- Fall arrest systems
- Metro, tram and rail transit electric wires & catenary testing
- Ski lifts
- Wire rope tied downs on vessels (using Tirfor)
- The testing tension of ship mast wire ropes.
- Tensioned trellis systems
- Measuring Line Sag
