STRAIGHTPOINT COMPRESSION LOADCELLS - CABLED ( NI ) - Straightpoint - By Brand

In stock
Only %1 left
SKU
COMPRESSION LOADCELLS - CABLED

STRAIGHTPOINT COMPRESSION LOADCELLS - CABLED ( NI )

From £642.60 £535.50
In stock
Quantity

Key Features

  • Compact size / Lightweight - Manufactured in ranges from 5t to 500t
  • Unrivalled resolution / High accuracy
  • Optional analogue outputs
  • Environmentally sealed to IP67/NEMA6
  • Design validated by F.E.A.
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

Compression Load Cell - NI Compression

FEATURES AND BENEFITS

  • Compact size Environmentally sealed to IP67/NEMA6
  • Optional analogue outputs
  • Stainless steel element High accuracy Lightweight Unrivalled resolution Custom versions available Design validated by F.E.A. SUPPLIED WITH THE FOLLOWING AS STANDARD 10 Metres / 30 Feet
  • Cable Proof test certificate
  • Operator Manual Carry/Storage Case
  • Manufactured in ranges from 5t to 500t - other capacities available on application.


Requires connection to Straightpoint Handheld Plus or Desktop controller data logging software package via the Handheld Plus. (Order separately)

Straightpoint compression load cells are manufactured to the same stringent standards as all Straightpoint products.The bodies are machined from high-grade stainless steel, offering excellent strength and anti-corrosion properties.

Compression load cells can be supplied with optional load caps to protect objects being tested. The compact lightweight design provides ease of use and superior portability, allowing Straightpoint compression load cells to be used in a broad range of industries including mining, energy, defence, heavy rigging, shipping, and general transportation sectors. Utilising the same advanced microprocessor-based electronics as all Straightpoint products,

Straightpoint’s compression load cells benefit from high sampling rates, extreme resistance to industrial level noise and unprecedented stability. This high stability gives this product over 5,000 divisions and the highest standard resolution of any high capacity compression load cell on the market today. Like all Straightpoint products,

Straightpoint compression load cells offer robust construction, advanced electronics, industry-leading resolution and accuracy all at a cost-effective, affordable price. Handheld plus

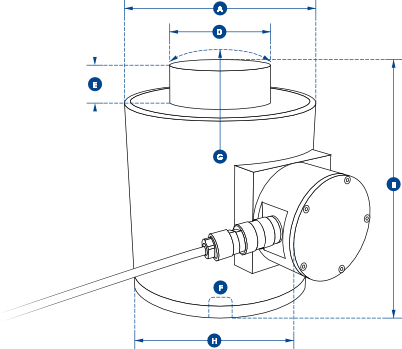

 Cable compression load cell ky

Part Number

NI5TC

NI10TC

NI25TC

NI50TC

NI100TC

NI150TC

NI300TC

NI500TC

Capacity

5te

10te

25te

50te

100te

150te

300te

500te

11000lb

22000lb

55000lb

110000lb

220000lb

330000lb

660000lb

1100000lb

Resolution

0.001te

0.002te

0.005te

0.01te

0.05te

0.05te

0.1te

0.2te

2lb

5lb

10lb

20lb

100lb

100lb

200lb

500lb

Units

tonne

lb

Weight

3.2kg

3.2kg

3.2kg

6.2kg

15.5kg

15.5kg

65kg

65kg

7lb

7lb

7lb

13.64lb

34lb

34lb

143lb

143lb

Safety Factor

3:1

Operating Temp

-10°C to +50°C / 14°F to 122°F

Accuracy

±0.3% of applied load

Protection

IP67 / NEMA 6

Dimension ØA

76

76

76

102

152

152

185

185

2.99”

2.99”

2.99”

4.02”

5.98”

5.98”

7.28”

7.28”

Dimension B

83

83

83

127

184

184

300

300

3.27”

3.27”

3.27”

5.00”

7.24”

7.24”

11.81“

11.81“

Dimension ØD

32

32

32

59

80

80

155

155

1.26”

1.26”

1.26”

2.32”

3.15”

3.15”

6.10”

6.10”

Dimension E

10

10

10

13

26

26

27.5

27.5

0.39”

0.39”

0.39”

0.51”

1.02”

1.02”

1.08”

1.08”

Dimension F

M12 x 1.75

M12 x 1.75

M12 x 1.75

M20 x 2.5

M20 x 2.5

M20 x 2.5

M20 x 2.5

M20 x 2.5

M12 x 1.75

M12 x 1.75

M12 x 1.75

M20 x 2.5

M20 x 2.5

M20 x 2.5

M20 x 2.5

M20 x 2.5

Dimension G

152

152

152

152

432

432

432

432

5.98”

5.98”

5.98”

5.98”

17.01”

17.01”

17.01”

17.01”

Dimension H

96

96

96

154

204

204

237

237

3.78”

3.78”

3.78”

6.06”

8.03”

8.03”

9.33”

9.33”

 APPLICATIONS

  • Pre-lift weight and centre of gravity calculations for large plant and equipment
  • Hydraulic and Pneumatic Press Force Verification and Calibration
  • Structural Weighing and Center of Gravity Calculation
  • Bridge Construction and Performance Load Monitoring
  • Tank/Silo/Hopper Measurement
  • Vehicle Weighing
  • Large Scale Industrial Tank/Silo/ Hopper Filling and Dosing Measurement
  • Structural Testing Research and Development
  • Aircraft Weighing
  • Material Force Testing / Concrete Crush Testing
  • Wind Tower Load Monitoring
  • Heavy Construction Pile driving
  • Used alongside Self-propelled modular trailer (SPMT) when moving heavy loads.
