STRAIGHTPOINT LOADBLOCK PLUS ( LBP )
Key Features
- Large 25mm/1” LCD Display / High resolution
- Selectable units te, lbs, kN & kg
- Push button tare / Preset tare
- 100Hz Peak hold
- RS485 port for connection to datalogging system
Delivery Information
Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.
Returns Policy
Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.
Non-standard (Quote only, pre-order or custom-made products)
Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.
For more information see https://www.dlhonline.co.uk/terms-conditions

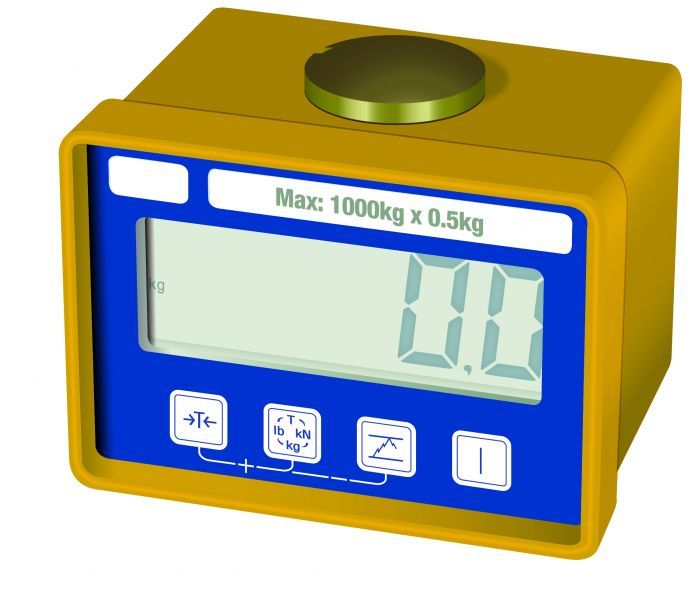

Compression Load Cell - Loadblock plus
The Loadblock Plus is a low capacity, self-indicating compression load cell, used in many testing and load monitoring applications worldwide. The integral display eliminates the need for a separate display or cable assembly that can be easily damaged. Applications include the measurement of loads associated with the testing of hydraulic presses, cylinders or jacks.
FEATURES AND BENEFITS
- Large LCD Display
- High Resolution
- Peak Hold
- Compact Size
- Tare
- Preset Tare
- Offset Adjustment
|
Part Number |
LBP250KG |
LBP500KG |
LBP1T |
LBP2T |
LBP5T |
|
Capacity |
250kg |
500kg |
1te |
2te |
5te |
|
550lb |
1100lb |
2200lb |
4400lb |
11000lb |
|
|
Resolution |
0.1kg |
0.2kg |
0.0005te |
0.001te |
0.001te |
|
0.2lb |
0.5lb |
1lb |
2lb |
2lb |
|
|
Units |
t. kg, kN and lb |
||||
|
lb, te, kN and kg |
|||||
|
Weight |
900g |
900g |
900g |
1.5kg |
3.1kg |
|
2lb |
2lb |
2lb |
3.3lb |
6.8lb |
|
|
Safety Factor |
4:1 |
5:1 |
5:1 |
5:1 |
5:1 |
|
Battery Type |
9v PP3 |
||||
|
Battery Life |
80hrs continuous |
||||
|
Display Type |
6 digit 25mm LCD / 6 digit 1” LCD |
||||
|
Operating Temp |
-10°C to 50°C / 14°F to 122°F |
||||
|
Accuracy |
±0.3% of applied load |
||||
|
Protection |
IP65 / NEMA 4X |
||||
|

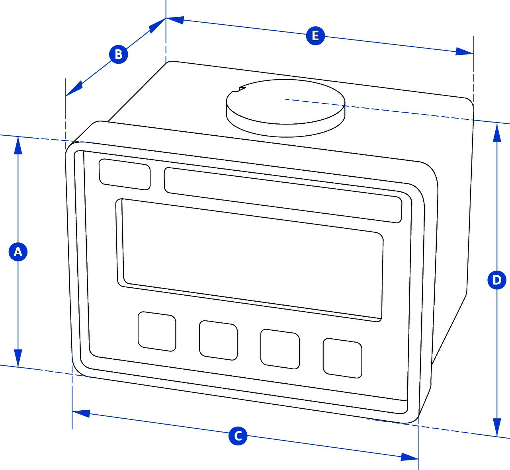

Dimension A |
81 |
81 |
81 |
92 |
92 |
|
3.19” |
3.19” |
3.19” |
3.62” |
3.62” |
|
|
Dimension B |
81 |
81 |
81 |
117 |
136 |
|
3.19” |
3.19” |
3.19” |
4.61” |
5.35” |
|
|
Dimension C |
113 |
113 |
113 |
112 |
112 |
|
4.45” |
4.45” |
4.45” |
4.41” |
4.41” |
|
|
Dimension D |
90 |
90 |
90 |
104 |
115 |
|
3.54” |
3.54” |
3.54” |
4.09” |
4.53” |
|
|
Dimension E |
104 |
104 |
104 |
Not available in this capacity |
|
|
4.09” |
4.09” |
4.09” |
|||
This latest version of our Loadblock has advanced features and benefits providing solutions for today’s complicated load test and force monitoring needs. Features include full function push-button controls for tare, units of measure (lbs, kg, kN, and tonnes), peak hold, pre-set tare, audible set-point alarm and an overload counter.
This crucial overload alarm counter is a requirement for many safety and quality control departments as it keeps track of overload events allowing the load cell in question to be removed from service immediately following a calibration voiding overload event. The load cell in question can then be sent out for proper testing and if necessary, recalibration before re-entering service.
The advanced microprocessor-based electronics provide the Loadblock Plus with high-speed read rates (500/sec), extreme resistance to industrial level noise and unprecedented stability.
This high stability provides the Loadblock Plus with 5000 + divisions and the highest standard resolution of any self-indicating compression load cell on the market today.
The unit also features an RS-485 serial output port allowing for remote viewing with either the handheld Plus Digital Display/Controller or Windows PC Desktop controller data logging software.
APPLICATIONS
- Pre-lift weight and centre of gravity calculations for large plant and equipment
- Hydraulic ram testing
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Case
