STRAIGHTPOINT S BEAM LOADCELLS - CABLED ( SB ) - Straightpoint - By Brand

In stock
Only %1 left
SKU
S BEAM LOADCELL

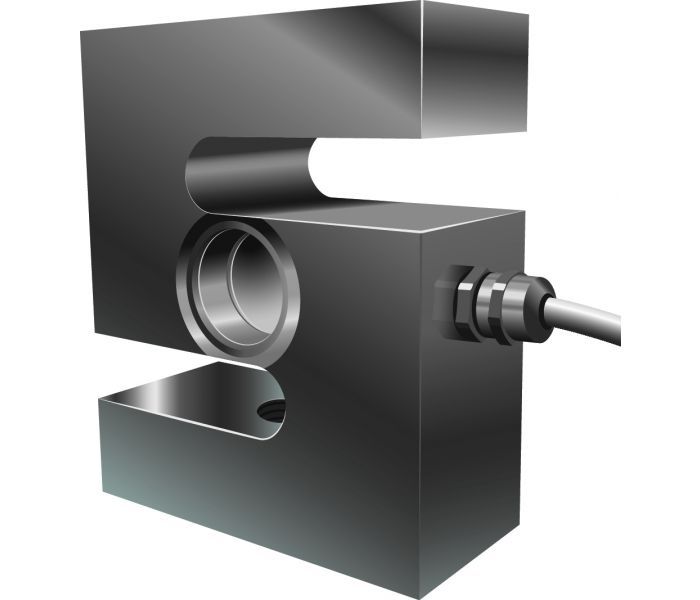

STRAIGHTPOINT S BEAM LOADCELLS - CABLED ( SB )

From £763.98 £636.65
In stock
Quantity

Key Features

  • 500 kg to 5 tonne capacities - High accuracy / High endurance
  • Fully sealed up to IP67 / Built-in overload protection
  • High capacity/Low capacity
  • Compact designs available for tight environment / Single point construction
  • Requires connection to Straightpoint’s Handheld plus (HHP), Desktop Controller data logging software (DCP10M) or External Amplifier range (SA-3420) that can be configured to provide outputs such as 4-20mA, 0-10v, 0-5v for PLC or data logger integration.
Delivery Options

Shear Beam Tension and Compression - S Beam Load Cell

A range of stainless steel ‘S’ beam load cells from 100kg to 5t.

FEATURES AND BENEFITS

  • Fully sealed up to IP65/NEMA4X
  • High Accuracy
  • High Endurance
  • Built-in Overload Protection
  • High Capacity / Low Capacity
  • Compact designs available for tight environment
  • In both Tension and Compression
  • Single Point Construction


The Straightpoint ‘S’ Beam range of tension/compression load cells are suitable for smaller Silo, vessel and tank weighing applications or for building into OEM projects, testing machines etc.

Hardwired, they are supplied with a 10m/30ft cable and can be connected to the Straightpoint range of accessories such as the Handheld plus.

Fitting options available including threaded bar, rod end bearing and eyebolts.
The 'S' beam loadcell can be used in both tension or compression and has a threaded hole at each end making it a very flexible solution.

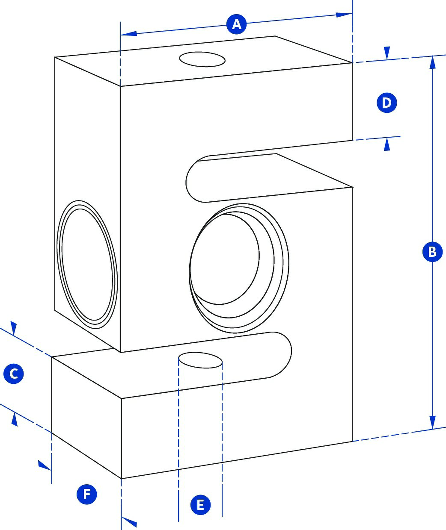

S Beam key dimensions

Part Number

 SB500K

SB1T

SB2T

 SB5T

Capacity

500kg

1te

2te

5te

1100lb

2200lb

4400lb

11000lb

Resolution

0.2kg

0.0005te

0.001te

0.001te

0.5lb

1lb

2lb

2lb

Units

kg, te

lb

Weight

0.9kg

0.9kg

0.9kg

1.9kg

2lb

2lb

2lb

4.2lb

Safety Factor

5:1

Operating Temp

-30°C to +80°C / -22°F to 176°F

Accuracy

±0.3% of applied load

Protection

IP67 / NEMA 6

Dimension A

70

70

70

100

2.76

2.76

2.76

3.94

Dimension B

90

90

90

120

3.54

3.54

3.54

4.72

Dimension C

19

19

19

26

0.75

0.75

0.75

1.02

Dimension D

19

19

19

26

0.75

0.75

0.75

1.02

Dimension E

M12 x 1.75

M16 x 2

M16 x 2

M24 x 2

Dimension F

32

32

32

45

1.26

1.26

1.26

1.77


APPLICATIONS

  • Force Measurement in tension & compression
  • Engine dynomometers
  • OEN Projects


SUPPLIED WITH THE FOLLOWING AS STANDARD

  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
Write Your Own Review
You're reviewing:STRAIGHTPOINT S BEAM LOADCELLS - CABLED ( SB )
