Thern Ensign 5PA10-M1+ Lifting Davit with Spur Gear Hand Winch and Base - Thern Lifting Davits - Popular Configurations

In stock
SKU
5PA10-M1+

Thern Ensign 5PA10-M1+ Lifting Davit with Spur Gear Hand Winch and Base

Shipped directly from the Manufacturer's hub, Despatched from warehouse stock. For carriage and lead time, request a quotation to your delivery address.

£4,272.00 £3,560.00
In stock
Quantity

Key Features

  • 554 kg capacity - 360 degree rotation
  • Adjustable height and reach for tall obstacles
  • Complete with spur gear hand winch with rope and pedestal base
  • 2-Year Standard Warranty
  • Declaration of conformity
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at sales@dale-lifting.co.uk or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see https://www.dlhonline.co.uk/terms-conditions

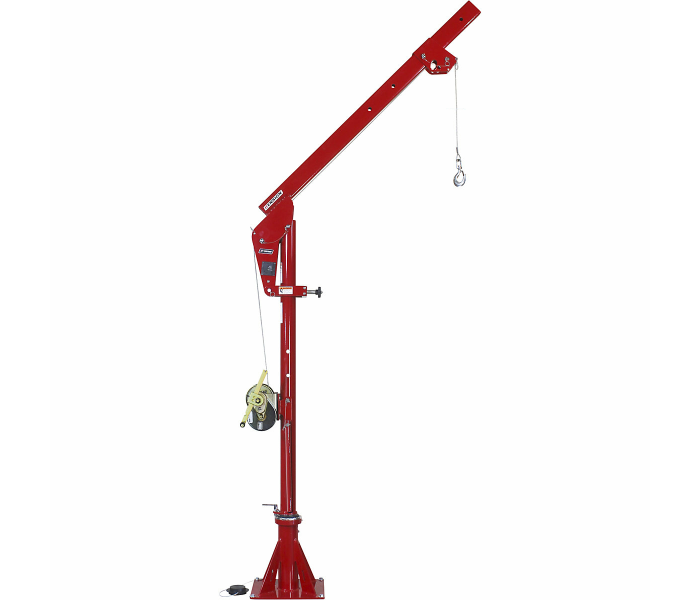

Thern Ensign 5PA10-M1 Lifting Davit with M4312PB-CE spur gear hand winch, galvanised rope and 5BP10 Pedestal Base.

PORTABLE LIFTING POWER for the Tallest Jobs

The 5PA10 Ensign 1000 portable Davit crane up to 544 kg is designed to lift and smoothly rotate heavier, taller loads 360 degrees, with minimal boom adjustment.

A longer mast and boom provide the extra hook height of 3048 mm with a pedestal base) required to clear safety gates, rails, and other obstacles. An ergonomic design, winch options, quick-disconnect feature, and boom adjustment knob make it extremely user-friendly.

All standard models include roller-ball bearings and rotation locks, which enhance unloading. Easy disassembly and
reassembly with quick-release hardware and pins maximizes portability for storage or use with other bases.
Ideal for water/wastewater applications.

Supplied complete with: crane powder-coated in red, manual wire rope winch with zinc-plated spur gear transmission, powder-coated pedestal base, Roller ball bearing comes standard on the 5PA10 series crane., steel rope with load hook, zinc-plated rope, Ø 6.4 mm, length 13.7 m.

Quick Facts

  • Load ratings up to 544kg
  • Painted finish davit and pedestal base
  • M4312PB-CE spur gear hand winch
  • 6.4 mm dia x 13.7 m galvanised rope with painted hook.
  • Roller ball bearing
  • Davit manual operation
  • Rotates 360º
  • 2-Year Standard Warranty
  • DOC and CE Marked



Technical data

Max. load

544 kg
Max. load 1 (at jib length mm) 558 mm – 544 kg
Max. load 2 (at jib length mm) 660 mm – 453 kg
Max. load 3 (at jib length mm) 812 mm – 362 kg
Max. load 4 (at jib length mm) 990 mm – 294 kg
Overall width 1219 mm
Overall height 3048 mm
Overall length 1219 mm
Lifting height max. cantilever arm extended 3048 mm
Max. crane arm length 1219 mm
Min. crane arm length 558 mm
Finish powder coated davit and base
Winch spur gear hand winch
Max. load 1 (at position mm) 660 mm – 544 kg
Max. load 2 (at position mm) 812 mm – 453 kg
Max. load 3 (at position mm) 990 mm – 362 kg
Max. load 4 (at position mm) 1219 mm – 294 kg
Max. hook height with max. crane arm angle 3048 mm
Max. hook height with min. crane arm angle 2362 mm
Weight 105 kg
Product type Lifting Davit
Supplied pre-assembled, final assembly by customer



For more finishes and or winch options, see the Ensign 1000 full range page for a quotation. CLICK HERE

Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.

PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.  These products are not for lifting people or things over people.

See Product attachments for full specifications.

Additional/Optional accessories for 5PA10-M1+ are offered below

  • Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.
  • Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
  • Headache ball - keeps the rope taut with no load.

Click links for prices and add to your quote request.
