Thern Ensign 5PA5-M1+ Lifting Davit with Spur Gear Hand Winch and Base - Thern Lifting Davits - Popular Configurations

In stock

Thern Ensign 5PA5-M1+ Lifting Davit with Spur Gear Hand Winch and Base

Shipped directly from Manufacturer's hub, Despatched from warehouse stock. For carriage and lead time, request a quotation to your delivery address.

£2,101.20 £1,751.00
In stock

Key Features

  • Lifting davt with painted finish with zinc-plated spur gear hand winch and painted pedestal base
  • Up to 226 kg capacity - 360 degree rotation
  • M4022PB-CE spur gear hand winch with galvanised rope with hook
  • 2-Year Standard Warranty
  • Declaration of conformity
Delivery Options

Delivery Information

Order online for delivery to Mainland UK VAT eligible locations only. Delivery charges will be shown in the shopping cart. Despatch dates for products can vary, if urgent, please contact us. Request a quote for postcodes DD, IV, KW, PA, AB, BT, HS, TR. PO30-PO42, southern Ireland, Channel Islands. For international destinations restrictions may apply.

Returns Policy

Simply email us at or call 0161 223 1990 and we will be able to give you a returns authorisation code, which must be sent with the returned item. Returns should be authorised within 14 days from the day of delivery to you. Items should be returned in unused condition & due to the nature of our products a restocking fee may apply. Unfortunately, delivery charges are not refundable. Items returned without an authorisation code may not be accepted. Normally All refunds will be processed within 7- 10 working days on receipt of returned goods.

Non-standard (Quote only, pre-order or custom-made products)

Custom made to order products are not covered by our returns policy. Please ensure when ordering all measurements and capacities are correct as we are unable to refund on these products.

For more information see

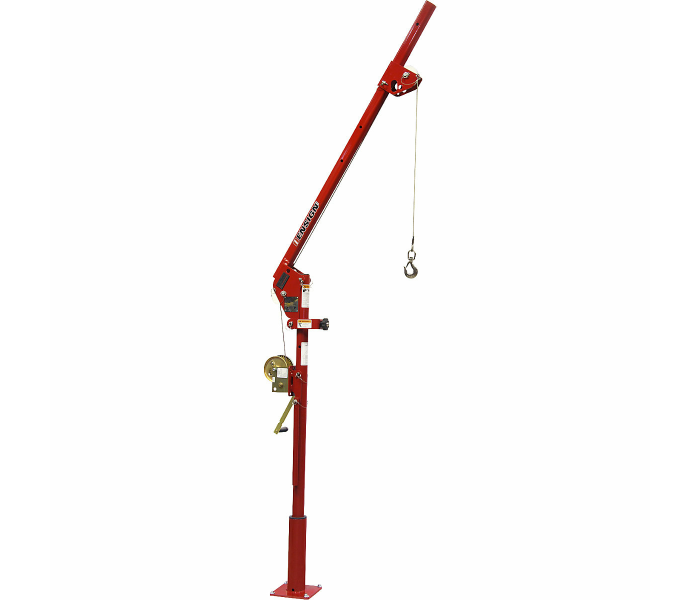

Thern Ensign 5PA5-M1 Lifting Davit with M4022PB-CE spur gear hand winch, galvanised rope and 5BP5 Pedestal Base


The 5PA5 Ensign 500 portable Davit crane (up to 226 kg) is designed to lift and smoothly rotate taller loads 360 degrees with minimal boom adjustment.

A longer mast and boom provide the extra hook height (up to 2565 mm) with a pedestal base) required to clear safety gates, rails, and other obstacles. An ergonomic design, winch options, quick-disconnect feature, and boom adjustment knob make it extremely user-friendly. Add an optional rotation lock to enhance unloading further.

Easy disassembly and reassembly with quick-release hardware and pins maximize portability for storage or use with
other bases. Ideal for water/wastewater applications.

Supplied complete with crane powder coated in red, M4022PB-CE spur gear hand winch, red powder-coated base mount platform, steel rope with load hook, zinc plated rope, Ø 4.8 mm, length 13.7 m.

Quick Facts

  • Load ratings up to 226kg
  • Painted finish davit and pedestal base
  • M4022PB-CE spur gear hand winch
  • 4.8 mm dia x 13.7 m galvanised rope with painted hook.
  • Davit manual operation
  • Rotates 360º
  • 2-Year Standard Warranty
  • DOC and CE Marked

Technical data

Max. load 227 kg
Max. load 1 (at jib length mm) 355 mm – 227 kg
Max. load 2 (at jib length mm) 431 mm – 181 kg
Max. load 3 (at jib length mm) 558 mm – 136 kg
Max. load 4 (at jib length mm) 711 mm – 113 kg
Overall width 914 mm
Overall height 2565 mm
Overall length 914 mm
Lifting height max. cantilever arm extended 2565 mm
Max. crane arm length 914 mm
Min. crane arm length 355 mm
Finish powder coated Davit and base
Winch M4022PB-CE spur gear hand winch
Max. load 1 (at position mm) 431 mm – 225 kg
Max. load 2 (at position mm) 558 mm – 181 kg
Max. load 3 (at position mm) 711 mm – 136 kg
Max. load 4 (at position mm) 914 mm – 113 kg
Max. hook height with max. crane arm angle 2565 mm
Max. hook height with min. crane arm angle 1879 mm
Weight 51 kg
Product type slewing cranes
Supplied pre-assembled, final assembly by customer

For more finishes and or winch options, see Ensign 500 full range page for a quotation. CLICK HERE

Enhanced Portability—The unit disassembles and reassembles easily, using quick-release hardware and pins for quick transport or storage—no tools are required.

PLEASE NOTE: It is the installer/user's responsibility to ensure the proper anchoring and quality of the support for the socket before use.  These products are not for lifting people or things over people.

See Product attachments for full specifications.

Additional/Optional accessories for 5PA5-M1 are offered below

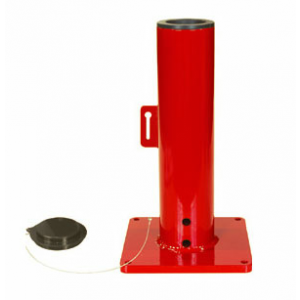

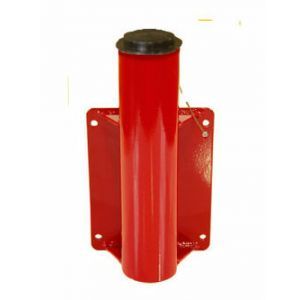

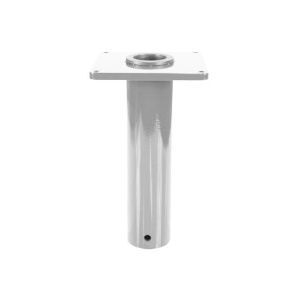

  • Additional davit sockets - pedestal mount, flush mount or wall mounts for multi-locations.
  • Extra wire ropes - Quick disconnect from winch - For faster pump retrieval.
  • Headache ball - keeps the rope taut with no load.
  • Rotational lock - Holds Davit in position.

Click links for prices and add to your quote request.
