Topal PP1 200-1000 Adjustal Grab for Loads with Parallel Sides - Topal Lifting Clamps, Magnets and Beams - Tractel - By Brand

In stock
SKU
6283

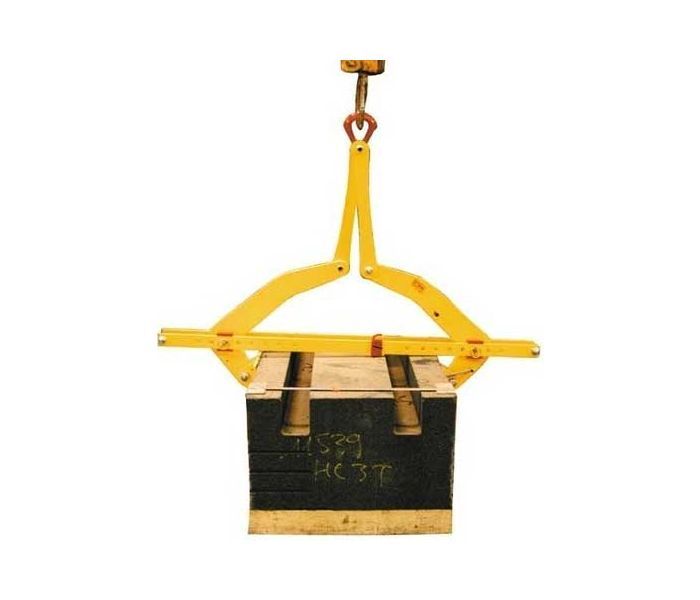

Topal PP1 200-1000 Adjustal Grab for Loads with Parallel Sides

In stock
Quantity
Delivery Options

PP1 200-1000
WLL 1000 kgs Opening 200-1000mm
Applications
Lifting without marring products with parallel sides in various materials: wood, concrete, steel, plastic and rock.
Directions for use: Unlock the catch hooks in an open position then adjust the clamp’s opening (symmetrical adjustment from 200mm to 1000mm, with 100mm increments). Lifting can be carried out. After the load has been moved and lowered down on the ground, replace the catch cranes on their axles. The clamp is ready to be moved in an open position to carry out further lifts. Clamping is proportional to minimise any damage to the load. The jaws are covered with interchangeable rubber.
Use Restrictions
Check that the pads are free from grease or oil. Degrease the pads regularly. Never lift greasy products or loads with smooth surface (polished marble for instance). Both jaws must be symmetrical to the load. Observe the broaching positions mentioned in the table right according to the max/min opening requirements in order to guarantee the necessary gripping power on the load to be lifted (see operating instructions). Other jaw coatings are available upon request. Operating temperature: -20° to +90°C.
